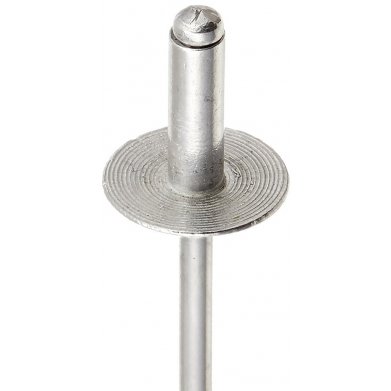

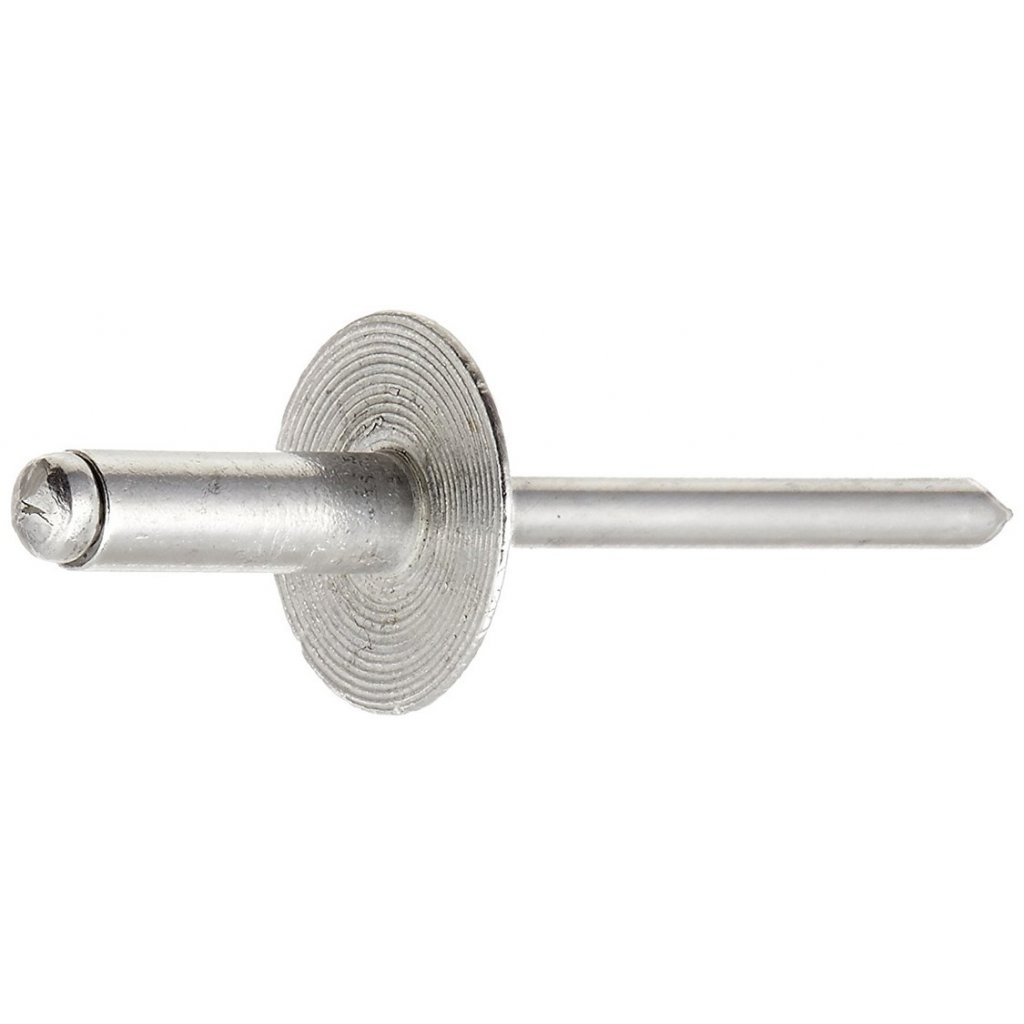

4.0mm Aluminium Steel Large Flange Domed Head Rivet

Model Number FRL4006AS   Part Number FRL4006AS

4.0mm Aluminium Steel Large Flange Domed Head Rivet

Our extensive range of aluminium steel large flange domed head rivets are perfect for a wide range of applications.

Features
  • Body: aluminium | Mandrel: steel
  • Domed Head
  • Grip Range - Please refer to table below
  • Wide range of rivet lengths available - Please Select
  • Wide range of pack sizes available - Please Select

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£1.27 ex. vat

£1.52 inc. vat

Buy Now

4.0mm Aluminium Steel Large Flange Domed Head POP Rivet

Features

As Apposed to our Standard Domed Head Rivets our Large Flange Rivets offer double the bearing area and also offers a much greater resistance. Our Aluminium Steel domed head rivets are available in a wide range of materials and head styles. Our range of Aluminium Steel .

Domed head rivets are Suitable for applications with low load bearing requirements They are designed for the fastening, in a fast and simple way especially when a high torque force is not needed

Diamater (d)Length (L)Flange Diamater (D)Drill SizeGrip RangePart Number
4.0mm 6.0mm 12.0mm 4.1mm 1.5 - 3.0mm FRL4006AS
4.0mm 8.0mm 12.0mm 4.1mm 3.0 - 5.0mm FRL4008AS
4.0mm 10.0mm 12.0mm 4.1mm 5.0 - 6.5mm FRL4010AS
4.0mm 12.0mm 12.0mm 4.1mm 6.5 - 8.5mm FRL4012AS
4.0mm 14.0mm 12.0mm 4.1mm 8.5 - 10.5mm FRL4014AS
4.0mm 16.0mm 12.0mm 4.1mm 10.5 - 12.5mm FRL4016AS

Rivet Specification

Rivet SizeRivet TypeHead TypeBody Material (C)Mandrel Material (D)
4.0mm Large Flange Domed Head Aluminium Steel

4.0mm Aluminium Steel Large Flange Domed Head POP Rivet

Benefits

  • The Fastener does not deform surfaces after the riveting process is finished (painted, glazed surfaces, etc)
  • It has a Good resistance to temperature variations.
  • The Fastener does not loosen from dynamic stress (vibrations in general)
  • It has a Fast, simple and great quality assembly.
  • The riveting process is environmentally friendly, free of smoke, sparks, fumes, etc.
  • It requires simple, fast and lightweight tools.
Types of Applications

  • Automotive industry Bodyworks
  • commercial vehicles
  • Electronics
  • Air Conditioning and Heating
  • Construction
  • Metal industry
  • Metal furniture
  • Electrical appliances
  • Ladder manufacturing
