4.8mm Aluminium Steel Large Flange Domed Head Rivet

Model Number FRL4808AS   Part Number FRL4808AS

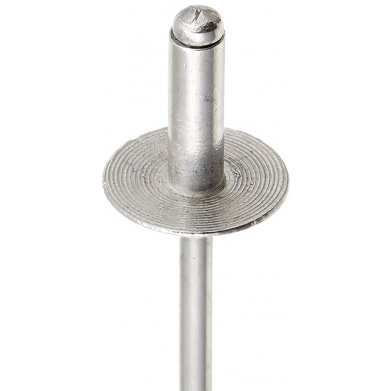

4.8mm Aluminium Steel Large Flange Domed Head Rivet

Our extensive range of aluminium steel large flange domed head rivets are perfect for a wide range of applications.

  • Body: aluminium | Mandrel: steel
  • Domed Head
  • Grip Range - Please refer to table below
  • Wide range of rivet lengths available - Please Select
  • Wide range of pack sizes available - Please Select

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£1.74 ex. vat

£2.09 inc. vat

Buy Now

4.8mm Aluminium Steel Large Flange Domed Head POP Rivet


As Apposed to our Standard Domed Head Rivets our Large Flange Rivets offer double the bearing area and also offers a much greater resistance. Our Aluminium Steel domed head rivets are available in a wide range of materials and head styles. Our range of Aluminium Steel .

Domed head rivets are Suitable for applications with low load bearing requirements They are designed for the fastening, in a fast and simple way especially when a high torque force is not needed

Diamater (d)Length (L)Flange Diamater (D)Drill SizeGrip RangePart Number
4.8mm 8.0mm 14.0mm 4.9mm 3.0 - 4.5mm FRL4808AS
4.8mm 10.0mm 14.0mm 4.9mm 4.5 - 6.0mm FRL4810AS
4.8mm 12.0mm 14.0mm 4.9mm 6.0 - 8.0mm FRL4812AS
4.8mm 14.0mm 14.0mm 4.9mm 8.0 - 10.0mm FRL4814AS
4.8mm 16.0mm 14.0mm 4.9mm 10.0 - 12.0mm FRL4816AS
4.8mm 18.0mm 14.0mm 4.9mm 12.0 - 14.0mm FRL4818AS
4.8mm 20.0mm 14.0mm 4.9mm 14.0 - 16.0mm FRL4820AS
4.8mm 22.0mm 14.0mm 4.9mm 16.0 - 18.0mm FRL4822AS
4.8mm 24.0mm 14.0mm 4.9mm 18.0 - 21.0mm FRL4824AS
4.8mm 26.0mm 14.0mm 4.9mm 19.5 - 22.0mm FRL4826AS
4.8mm 28.0mm 14.0mm 4.9mm 21.0 - 23.5mm FRL4828AS
4.8mm 30.0mm 14.0mm 4.9mm 23.0 - 25.0mm FRL4830AS
4.8mm 35.0mm 14.0mm 4.9mm 25.0 - 30.0mm FRL4835AS

Rivet Specification

Rivet SizeRivet TypeHead TypeBody Material (C)Mandrel Material (D)
4.8mm Large Flange Domed Head Aluminium Steel

4.8mm Aluminium Steel Large Flange Domed Head POP Rivet


  • The Fastener does not deform surfaces after the riveting process is finished (painted, glazed surfaces, etc)
  • It has a Good resistance to temperature variations.
  • The Fastener does not loosen from dynamic stress (vibrations in general)
  • It has a Fast, simple and great quality assembly.
  • The riveting process is environmentally friendly, free of smoke, sparks, fumes, etc.
  • It requires simple, fast and lightweight tools.
Types of Applications
  • Automotive industry Bodyworks
  • commercial vehicles
  • Electronics
  • Air Conditioning and Heating
  • Construction
  • Metal industry
  • Metal furniture
  • Electrical appliances
  • Ladder manufacturing
