Avdel 74200 Air Rivet Nut Tool               M3 - M12

Model Number AVDEL 74200   Part Number 74200-12000

Avdel 74200 | Air Rivet Nut Tool

Our extensive range of Avdel Air Rivet Nut Tools Genuine Avdel Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Automatic Spin Off Feature
  • Stroke (Adjustable) Max 7.0mm
  • Traction Power 19.100 kN
  • M3 - M12 Setting Capacity
  • Nose Assembly's (Choose Tool Set Up)
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£POA

Enquire now

Avdel 74200 Air Rivet Nut Tool

Features

If you're looking for a lightweight rivet nut tool for setting a wide range of threaded inserts, The high speed Avdel 74200 rivet nut tool is the perfect tool for you. Featuring a one step trigger for easy use along with a strong plastic body this tool is capable of performing faultlessly on the toughest of production lines.

With the added benefit of being able to be suspended or used as a hand tool, The Avdel 74200 maximises installations to minimise your installation costs.

  • One-Step Trigger
  • Can Be Suspended Or Hand-Held
  • Hydro-Pneumatic Operation
  • Heavy Duty Plastic Body
  • Meets Demands Of Tough Work Environments
  • Minimizes Installation Costs
  • Reduces Operator Fatigue

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Automatic Spin Off Feature
  • Stroke (Adjustable) Max 7.0mm
  • Traction Power 19.100 kN
  • M3 - M12 Setting Capacity
  • Nose Assembly's (Choose Tool Set Up)
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool



Do you require a tool repair / service? Click Here!



Setting Capacity (Rivet Nuts)

Rivet Nut SizeAluminiumSteelStainless Steel
M3
M4
M5
M6
M8
M10
M12

Setting Capacity (Rivet Stud Bolts)

Rivet Bolt TypeSteelNose Assembly Included
M3
M4
M5
M6
M8
M10
M12

Avdel 74200 Air Rivet Nut Tool

SpecificationAvdel 74200
Brand Avdel
Model 74200
Part Number 74200-12000
Type Air Rivet Nut Tool
Operating Mode Compressed Air
Setting Capacity M3 - M12
Stroke (Adjustable) Max 7.0mm
Traction Power 19.100 kN
Spin On Automatic
Spin Off Automatic
Sets Rivet Stud Bolts No
Operating Air Pressure 5 - 7 BAR
Weight 2.2kg
Warranty One Year
Contents Avdel 74200 Tool & Chosen Set Up


Modifications

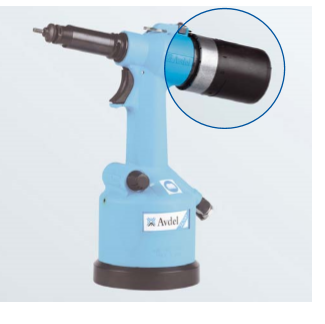

Silencer Modification To Rear Casing

Reducing Noise Level

The new modified rear casing introduces an additional silencer element that reduces the noise level and consequently improves operator comfort when the tool is in use for prolonged periods.
The new rear casing incorporating the additional silencing is supplied as a complete assembly Part No. 74200-12800, and is interchangeable with the exisiting rear casing, sintered silencer and circlip.

Rear casing assembly 74200-12800 interchangeable with:

DescriptionPart No.
Rear casing  74200-12086
Sintered Silencer  74200-12085
Circlip  74200-12084

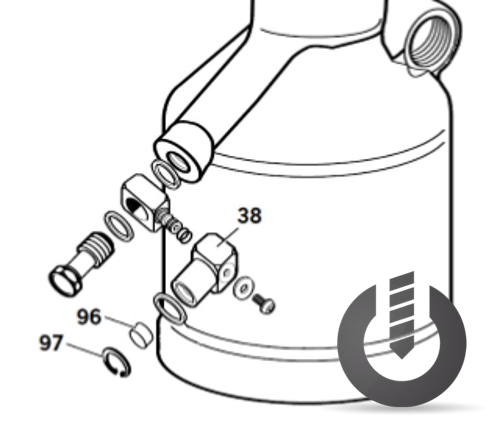

Air inlet modification

Prevents unfiltered air to enter the pneumatic system

The swivel inlet Part No. 74200-12038 has been modified to include the sintered filter and circlip. These were formerly housed within the double male connector which has now been made obsolete.
This modification simplifies the air inlet arrangement and eliminates the possibility of an inadvertently discarding the double male connector allowing unfiltered air to enter the pneumatic system. The inlet connection thread is now 1/4 BSP female (formerly 1/4 BSP male).

Air inlet modification:

DescriptionPart No.
Swivel inlet (38)  74200-12038
Sintered filter (96)  74200-12096
Circlip (97)  74200-12097

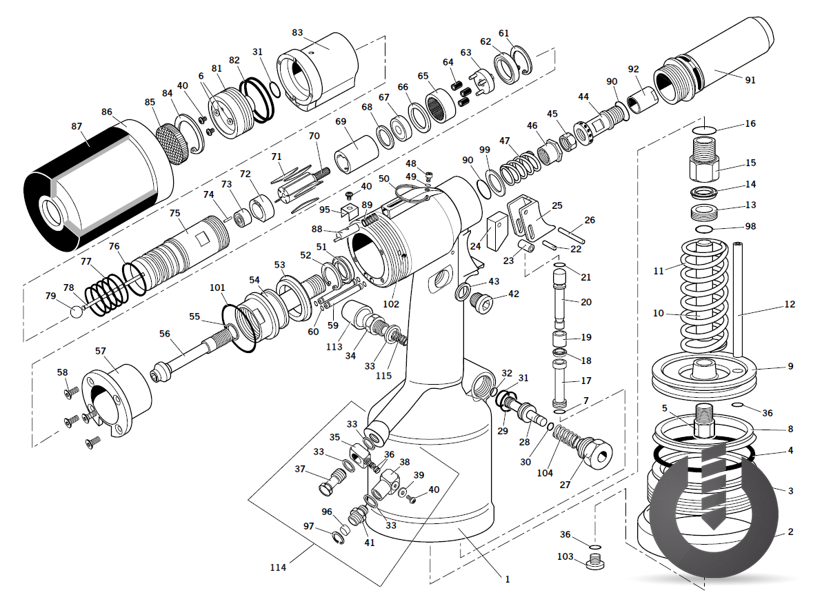

We Also Supply A Wide Range OF Genuine Avdel 7200 Spare Parts

Part Number Product Title Price
07001-00420 07001-00420
M4 Button Screw
Avdel 74200 Part
Socket Button

£POA

Enquire now
07003-00026 07003-00026
O Ring
Avdel 74200 Part
26

£POA

Enquire now
07003-00027 07003-00027
O Ring
Avdel 74200 Part
27

£POA

Enquire now
07003-00028 07003-00028
Locking Ring
Avdel 74200 Part

£POA

Enquire now
07003-00029 07003-00029
O Ring
Avdel 74200 Part
29

£POA

Enquire now
07003-00033 07003-00033
Oil Bleed Washer
Avdel 74200 Part
Seal

£POA

Enquire now
07003-00040 07003-00040
O Ring
Avdel 74200 Part
40

£POA

Enquire now
07003-00046 07003-00046
O Ring
Avdel 74200 Part
46

£POA

Enquire now
07003-00086 07003-00086
O Ring
Avdel 74200 Part
86

£POA

Enquire now
07003-00100 07003-00100
O Ring
Avdel 74200 Part
100

£POA

Enquire now
07003-00134 07003-00134
O Ring
Avdel 74200 Part
134

£POA

Enquire now
07003-00305 07003-00305
O Ring
Avdel 74200 Part
305

£POA

Enquire now
07003-00306 07003-00306
O Ring
Avdel 74200 Part
306

£POA

Enquire now
07003-00315 07003-00315
O Ring
Avdel 74200 Part
315

£POA

Enquire now
07340-00401 07340-00401
Spring
Avdel 74200 Part

£POA

Enquire now
07555-09883 07555-09883
M3 Nose Assembly
Avdel 74200 Part
Rivet Nut Tool

£POA

Enquire now
07555-09884 07555-09884
M4 Nose Assembly
Avdel 74200 Part
Rivet Nut Tool

£POA

Enquire now
07555-09885 07555-09885
M5 Nose Assembly
Avdel 74200 Part
Rivet Nut Tool

£POA

Enquire now
07555-09886 07555-09886
M6 Nose Assembly
Avdel 74200 Part
Rivet Nut Tool

£POA

Enquire now
07555-09888 07555-09888
M8 Nose Assembly
Avdel 74200 Part
Rivet Nut Tool

£POA

Enquire now
74200-12085 74200-12085
Silencer
Avdel 74200 Part

£POA

Enquire now
74200-12087 74200-12087
Rear Casing Band
Avdel 74200 Part
Rear Casing Rubber Band

£POA

Enquire now
74200-12088 74200-12088
Stroke Set Finger
Avdel 74200 Part

£POA

Enquire now
74200-12089 74200-12089
Spring
Avdel 74200 Part

£POA

Enquire now
74200-12092 74200-12092
Adaptor Nut
Avdel 74200 Part

£POA

Enquire now
74200-12095 74200-12095
Bridge Washer
Avdel 74200 Part

£POA

Enquire now
74200-12121 74200-12121
O Ring
Avdel 74200 Part
121

£POA

Enquire now
