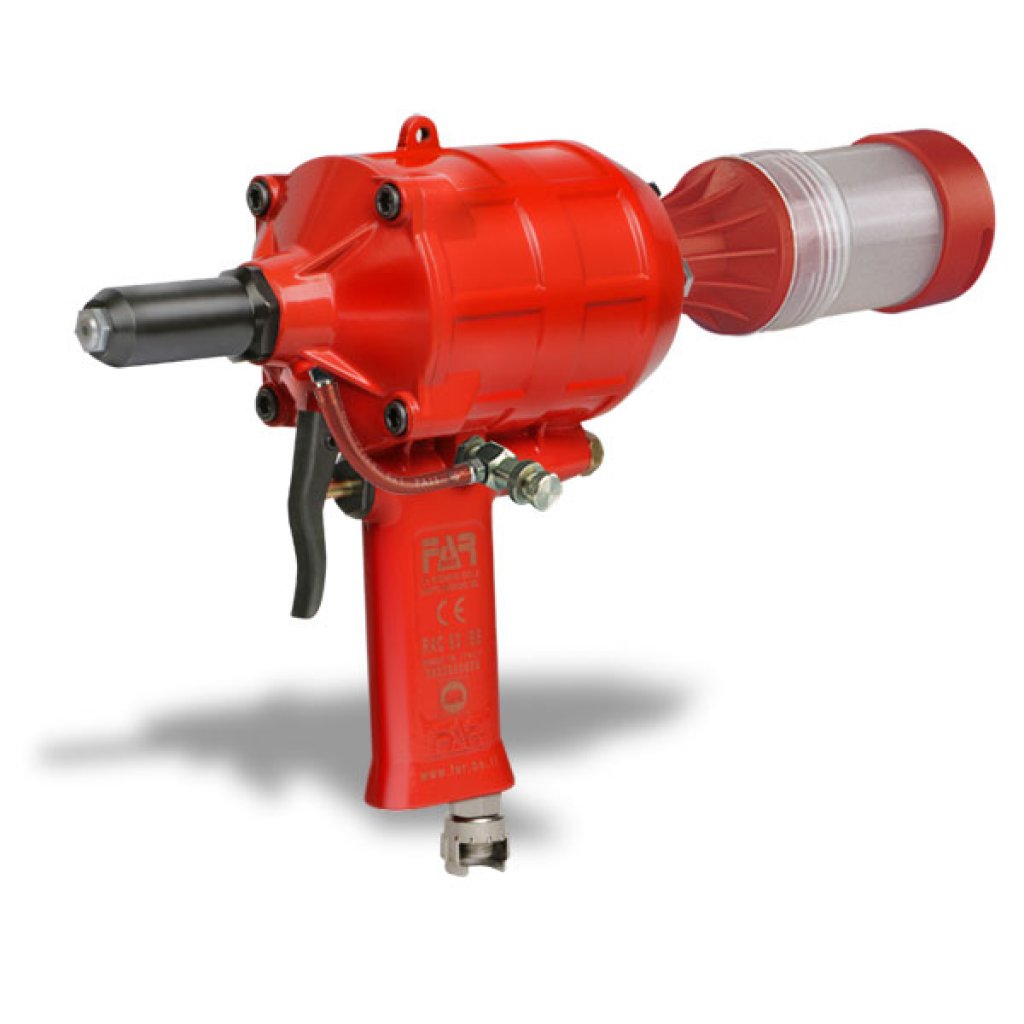

FAR RAC83/AX Air Riveter
2.4mm - 4.8mm

Model Number 70AX83   Part Number RAC83/AX

FAR RAC83/AX | Air Rivet Tool

Our extensive range of FAR Air Rivet Tools Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Designed for industrial or manufacturing applications
  • Pneumatic tool with rivet holding and nail recovery
  • Stroke 19mm
  • Maximum Force: 5372 N
  • 2.4mm - 4.8mm Setting Capacity
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
  • Click "Manual" for the drawing and parts list!
  • Write a review

    £195.00 ex. vat

    £234.00 inc. vat

Buy Now

RAC83/AX FAR Air Riveter

Features

The FAR RAC83/AX is a hydro pneumatic rivet tool ideal for setting standard rivets from 2.4mm to 4mm in all materials and to 4.8mm in aluminium. The RAC83/AX can set Multistage /Multifar rivets 302mm in all materials and 4.0mm only in aluminium.

The RAC 83/AX is a solid and reliable air only riveting tool. The AX version is equipped with a practical nail recovery tank.

Part-on are by FAR the best choice for all rivet and rivet tooling supply and service partnerships. We repair all tools in-house and have extensive knowledge, not only with FAR but all major manufacturers tooling and fasteners making us your perfect partner.

Benefits

      • Lightweight, Fast Operation
      • Ideal for rivets with 2.4-4mm in all material & 4.8mm in aluminium
      • Stroke 19mm
      • Maximum Force 5372N
      • Operating Pressure: 6 bar | 90 PSI
      • Capable Of Setting Tamp Rivets
      • Supplied With One Year's Manufacture Warranty
      • Part-on Can Service & Provide Spare Parts For This Tool



Do you require a tool repair / service? Click Here!



Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm


Setting Capacity (Special Rivets)

Rivet TypeMultistage | Multinox
3.2mm
4.0mm


Rivet Type       Hemlok | Tamp | G-Bulb
3.2mm

FAR RAC83/AX Air Rivet Tool

Specification

SpecificationFAR RAC83/AX
Brand FAR
Model RAC83/AX
Part Number 70AX83
Type Air Rivet Tool
Operating Mode Compressed Air
Setting Capacity 2.4mm - 4.8mm
Stroke 19mm
Maximum Force 5372 N
Operating Pressure 6 bar | 90 PSI
Sets Tamp Rivets Yes in 3.2mm
 Weight  1.74kg
Warranty One Year
Contents FAR RAC83/AX Tool
