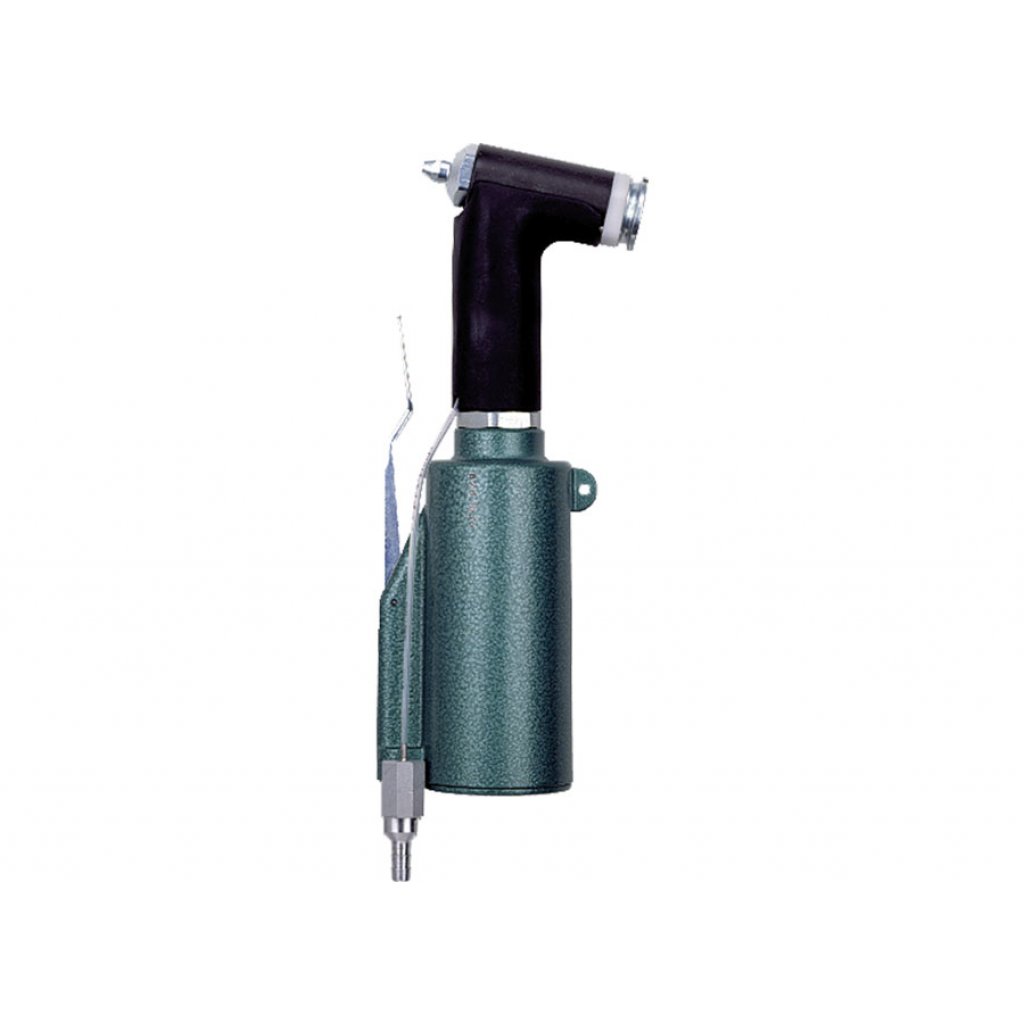

Gesipa PH 2-VK Air Riveter
2.4mm - 4.0mm

Model Number PH 2   Part Number 1456774

Gesipa PH 2-VK | Air Rivet Tool

Our extensive range of Gesipa PH 2-VK Air Riveters Genuine Gesipa Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • 360° Adjustable Head
  • Tool Is ideal For Setting Difficult To Access Rivets
  • 2.4mm - 4.0mm Setting Capacity
  • 14.0mm Stroke
  • 6.200N Traction Power
  • Nosepiece's Included
  • 2 Year Manufacturer Warranty (click to view)
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

was £1,235.36

£855.47 ex. vat

£1026.56 inc. vat

Buy Now

Gesipa PH 2-VK Air Riveter

Features

The Gesipa PH 2-VK Air Riveter is used to fasten blind rivets in a wide range of materials including Aluminium, Steel & Stainless Steel.

The piston is made of hardened and hard chromium plated steel which makes the device easy to handle and wear-proof, the fast venting valve guarantees for fast return and a high working sequence. The hydraulic head can be adjusted by 360°. Additionally the favourable centre of gravity and the handle design enables the user to work fatigue-free.

The PH 2-VK has a shorter version of the pistol head than the PH 2, Ideal when setting difficult to access rivets.

  • Hydraulic head made of aluminium with wear-proof cylinder surface
  • Pneumatic cylinder made of die cast aluminium
  • Pistons: Steel hardened and chrome-plated – smooth operation and wear-proof
  • Compact seals are wear-proof for a long service life
  • Fast venting valve for fast return and high working sequence
  • Low-noise pneumatic switching
  • Simple, low-interruption valve design
  • Hydraulic head can be adjusted by 360°
  • Favourable centre of gravity and handle design for fatigue-free handling

 Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • 360° Adjustable Head
  • Tool Is Ideal For Setting Difficult To Access Rivets
  • 2.4mm - 4.0mm Setting Capacity
  • 14.0mm Stroke
  • 6.200N Traction Power
  • Nosepiece's Included



Do you require a tool repair / service? Click Here!



Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm
5.0mm
6.0mm
6.4mm

Gesipa PH 2-VK Air Riveter

SpecificationGesipa PH 2-VK
Brand Gesipa
Model PH 2-VK
Part Number 1456774
Type Air Riveter
Setting Capacity 2.4mm - 4.0mm
Contents Gesipa PH 2-VK Air Riveter
Weight 1.3kg
Air Consumption 1,2 - 1,8 ltr. per rivet (0,3 ltr. compr. air)
Air Hose Connection 6mm Ø (1/4")
Operating Air Pressure 5 - 7 bar
Operating Mode Compressed air
Stroke 14mm
Traction Power 6.200 N at 6 bar
