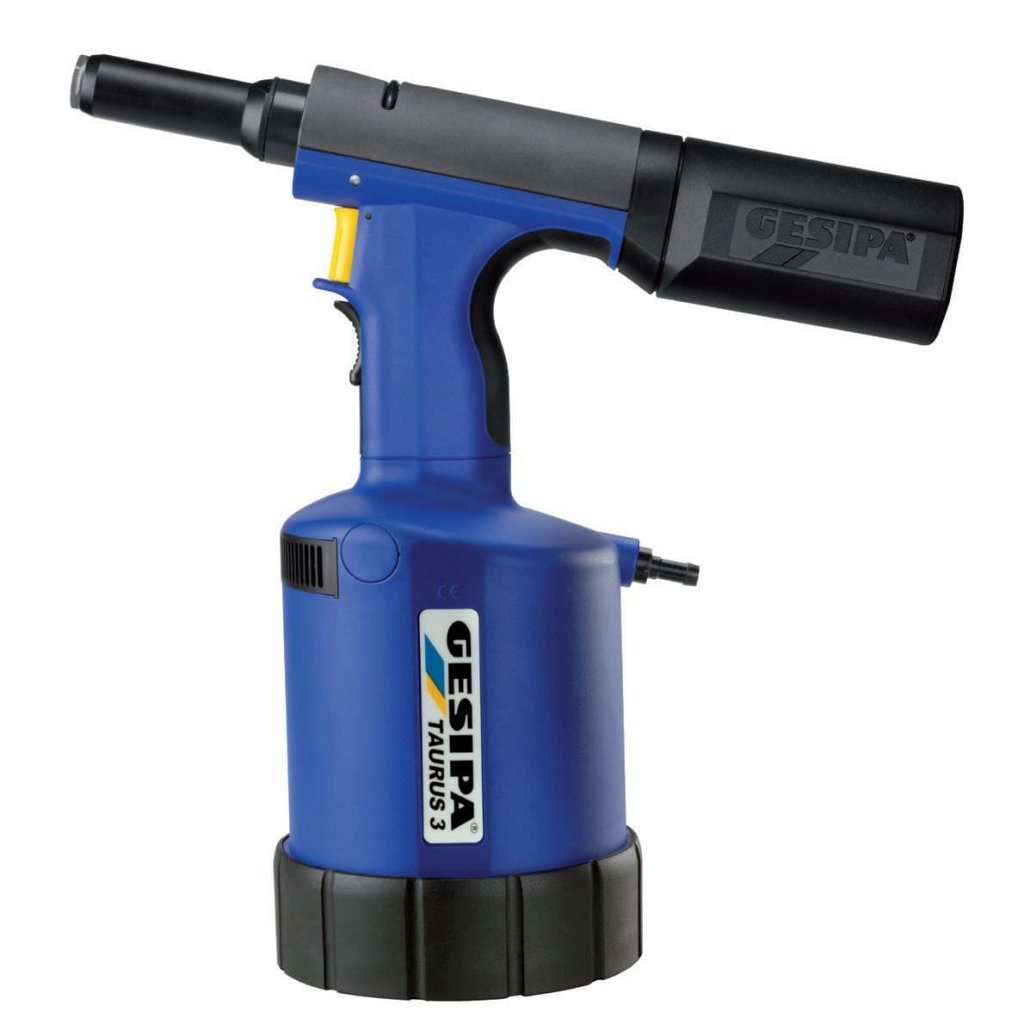

Gesipa Taurus 3 SRB Air Riveter For Huck Magna Grip

Features

With this taurus set up we provide you with a gesipa taurus 3 SRB. With this type of taurus the stroke is specially adjusted making the tool capable of setting lock bolt fasteners. This tool will also be supplied with a huck nose assembly capable of setting huck magna grip pin & collar lock bolt fasteners.

Since the market introduction of the TAURUS® 2 in the year 2002, the TAURUS® series has managed to convince thousand times over in trade and industry. The TAURUS® 2 especially is a true all-rounder.

The TAURUS® tool series is equipped with a high-performance, patented grip mechanism and jaw system. The optimum utilisation of the compressed air ensures maximum thriftiness, efficiency and greenness.

01 Modular principles

• Widest possible parts commonality – low spare part stocks required and simple maintenance
• Flexible adaption to new applications

02 Power

• High setting forces combined with low weight
• Fast work cycle
• Optimised stroke for the entire series

03 Patented handle mechanism

• With forcibly actuated jaws by pneumatic pressing
• Safe, non-slip gripping of the rivet mandrel
• Just one model of jaws for all tools
• Very long service lives

04 Efficiency

• Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent mandrels using the same air
• Air suction needed only for vertical downwards riveting. Can be permanently switched-off if not needed.

05 Work comfort / safety

• Rubberised, moulded grip
• Balanced center of gravity
• Low-vibration and soundproofed
• Little activation force required
• Spent mandrel container with swivelling air deflector
• Overpressure valve for prevention of overload
• Integrated protection feature prevents the ejection of spent mandrels while the spent mandrel container is removed

 Benefits

• Lightweight, Fast Operation
• Ideal For High Volume Production
• 25.0mm Stroke
• 18.000N Traction Power
• Capable Of Setting Huck 4.8mm Magna Grip Lock Bolt Fasteners
• Nosepiece's Included

Do you require a tool repair / service? Click Here!

Setting Capacity (Lock Bolts)

What Is A Huck Magna Grip ?

Gesipa Taurus 3 SRB Air Riveter For Huck Magna Grip
