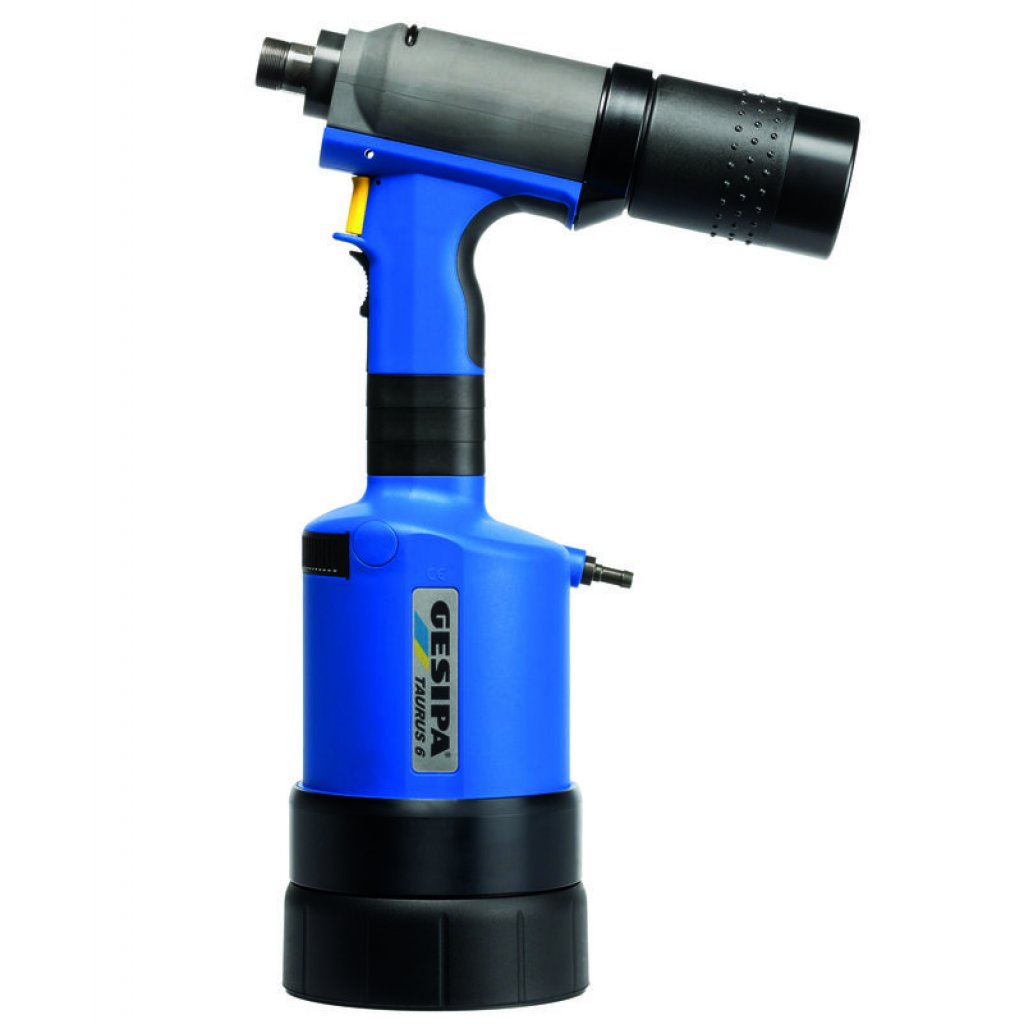

Gesipa Taurus 6 Air Riveter
For Rivets above 6.4mm

Model Number Taurus 6   Part Number 1458022

Gesipa Taurus 6 | Air Rivet Tool

Our extensive range of Gesipa Taurus 6 Air Riveters Genuine Gesipa Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • 6.4mm and Above Setting Capacity
  • 15.0mm Stroke
  • 50,000N Traction Power at 7 Bar
  • Capable Of Setting Lockbolts Up To 10mm with corresponding pulling heads
  • Nosepiece's Sold Seperately
  • 2 Year Manufacturer Warranty (click to view)
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£POA

Gesipa Taurus 6 Air Riveter

Features

The Gesipa Taurus 6 Air Riveter is used to fasten blind rivets above 6.4mm in all materials. The Taurus 6 also sets lockbolts up to 10mm with the corresponding pulling heads.

Tool includes:

  • 1 Hydraulic oil bottle 100ml
  • 1 Oil refill can
  • 1 Taurus 6 Tool
  • Operating instructions with spare parts list

01 Modular principles

  • Widest possible parts commonality – low spare part stocks required and simple maintenance
  • Flexible adaption to new applications

02 Power

  • High setting forces combined with low weight
  • Fast work cycle
  • Optimised stroke for the entire series

03 Patented handle mechanism

  • With forcibly actuated jaws by pneumatic pressing
  • Safe, non-slip gripping of the rivet mandrel
  • Just one model of jaws for all tools
  • Very long service lives

04 Efficiency

  • Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent mandrels use the same air
  • Air suction needed only for vertical downwards riveting. Can be permanently switched-off if not needed.

05 Work comfort / safety

  • Rubberised, moulded grip
  • Balanced center of gravity
  • Low-vibration and soundproofed
  • Little activation force required
  • Spent mandrel container with swivelling air deflector
  • Overpressure valve for prevention of overload
  • Integrated protection feature prevents the ejection of spent mandrels while the spent mandrel container is removed





Gesipa Taurus 6 Air Riveter

SpecificationGesipa Taurus 6
Brand Gesipa
Model Taurus 6
Part Number 1458022
Type Air Riveter
Setting Capacity 6.4mm and above
Contents Gesipa Taurus 6 Air Riveter
Weight 3.4kg
Air Consumption Approx. 6.9 ltr. per rivet
Air Hose Connection 6mm Ø (1/4")
Operating Air Pressure 5 - 7 bar
Operating Mode Compressed air
Stroke 15mm
Traction Power 50,000 N at 7 bar



Head Module For Taurus 6

Head Module for 7.8mm Titgemeyer TIBULB | Part Number: 1458008

Head Module for 9.8mm HUCK Magna-Lok | Part Number: 1458009

Other head modules available on request.
