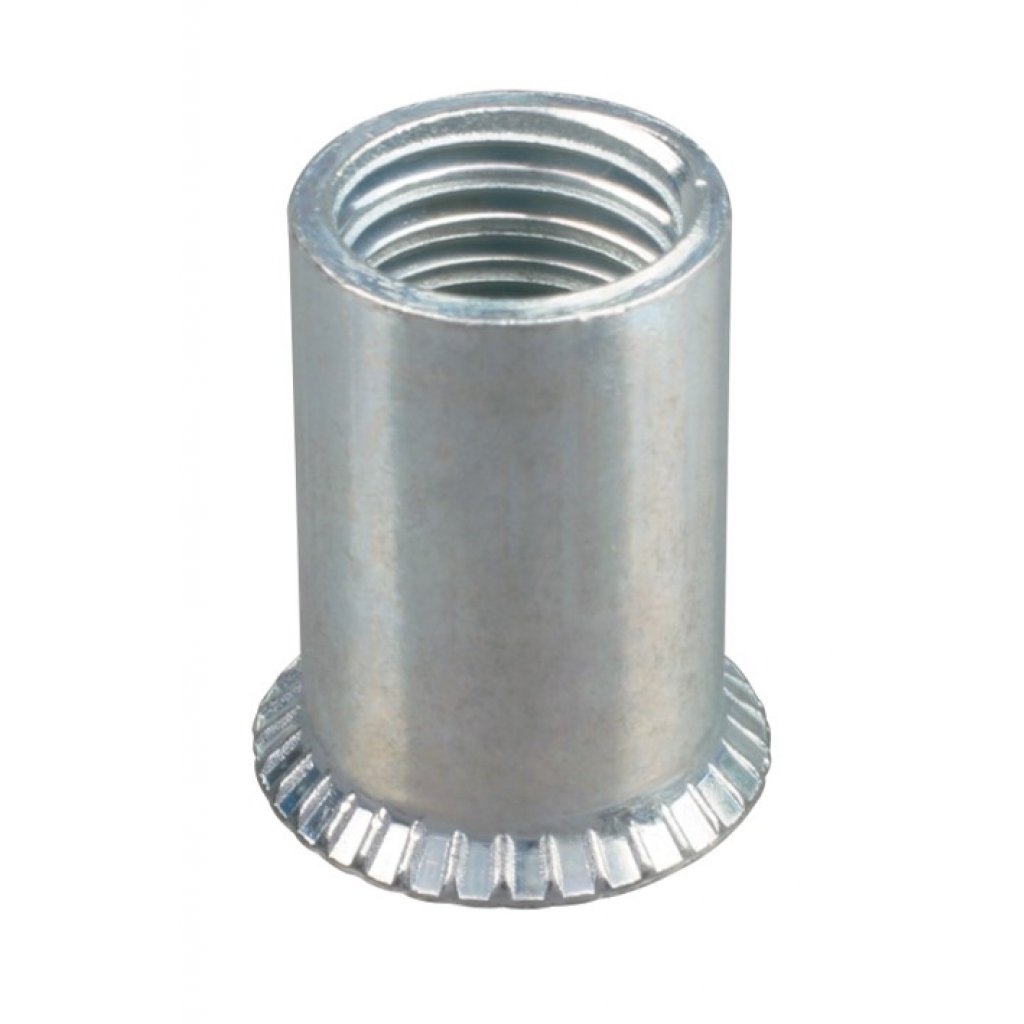

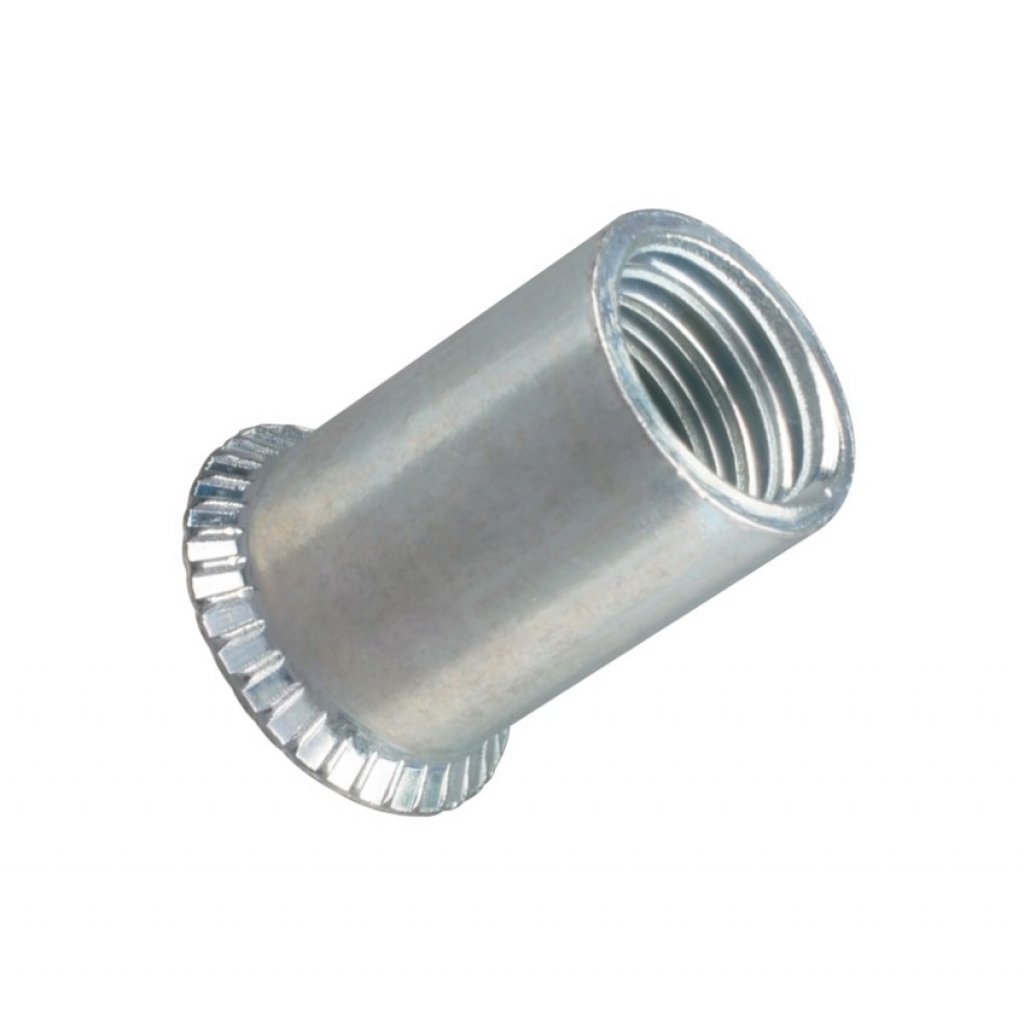

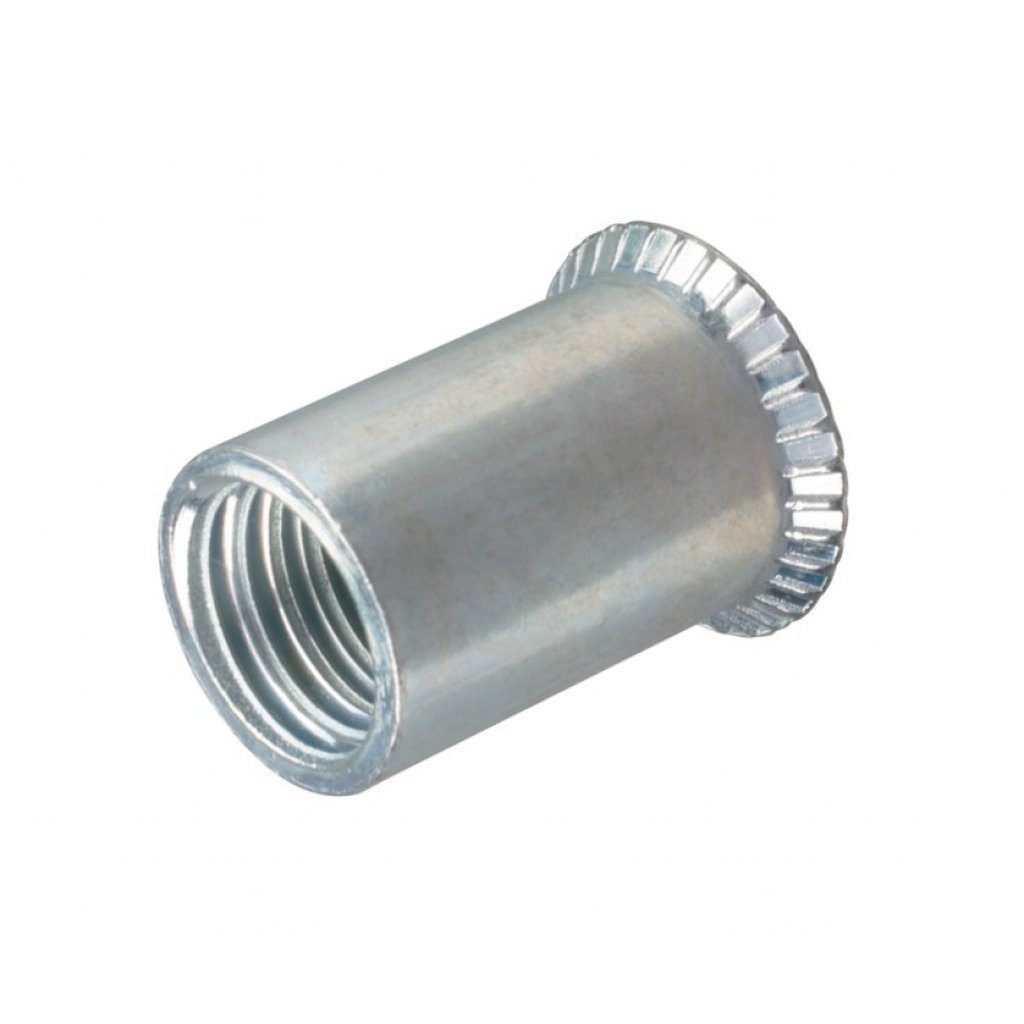

M5 Steel Round Body Countersunk Head Open Rivet Nut

Model Number FNORCM5SS   Part Number FNORCM5SS

M5 Steel Round Body Countersunk Head Open Rivet Nut

Our extensive range of Steel Round Body Countersunk Head Rivet Nuts are perfect for a wide range of applications.

Features
  • Head: Steel | Body: steel
  • Countersunk Head
  • Grip Range - Please refer to table below
  • Wide range of rivet nut lengths available - Please Select
  • Wide range of pack sizes available - Please Select

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£3.98 ex. vat

£4.78 inc. vat

Buy Now

M5 Steel Round Body Countersunk Head Open POP Rivet Nut

Features

Part-on Stock a range of countersunk head rivet nuts

Benefits

  • Can be easily set in thin material
  • Blind rivet nuts have the same properties as a tapper thread in full material, Because of the strong flush flange after deformation of the rivet nuts
  • Can be set from one side, Where the rear of the material and the inside of the object are inaccessible
  • The material will not be damaged
  • Will not deform or cause discolouration of the material

Types of Applications

  • Automotive Industry
  • HVAC Applications
  • Shipbuilding Industry
  • Hinges
  • Furniture
  • Window Frames

Specification

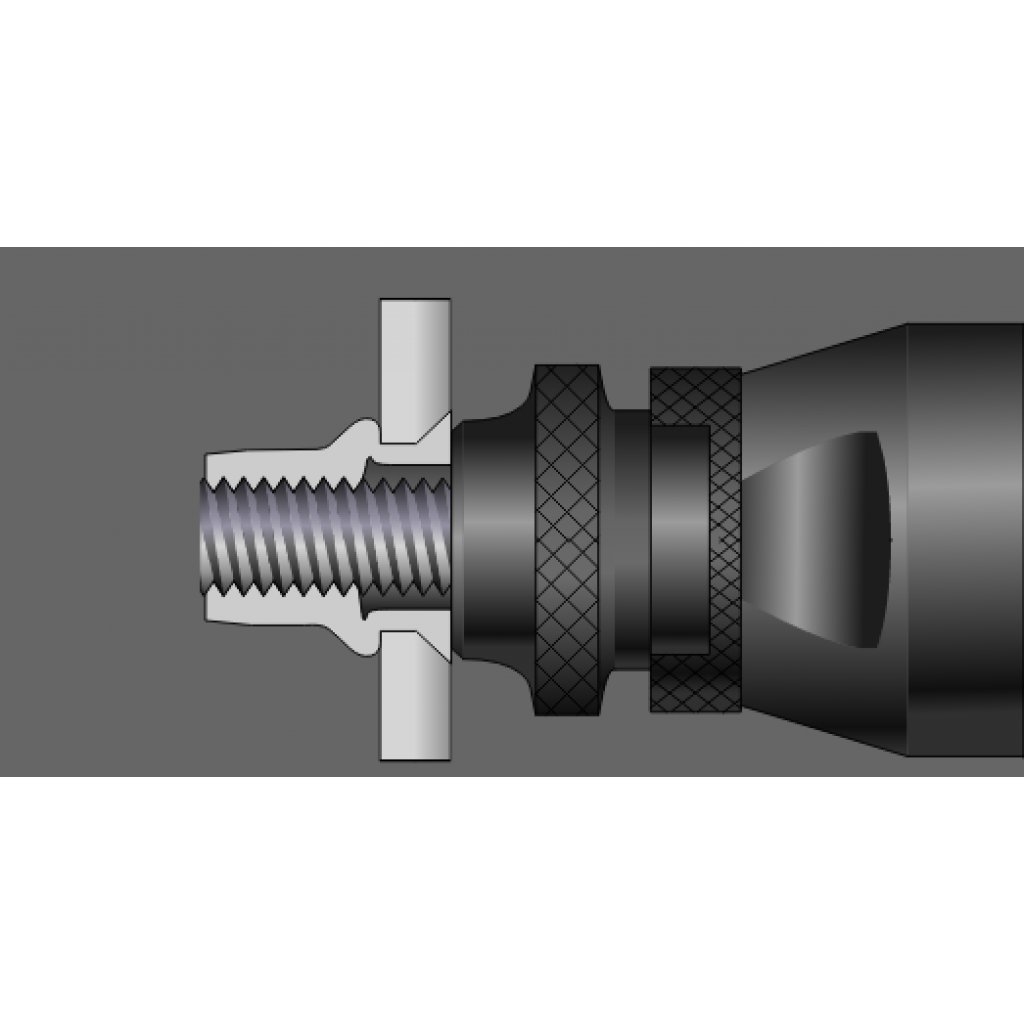

All our rivet nuts are tested as advised in the table and shown in the bellow diagram the following features are checked for quality & performance purposes.

  • Torque Test -  The torque is the strength which is used to tighten the screw in order to secure the attachment of parts without causing breakage this is measured in newton meters.
  • Setting Effort - Setting Effort is the tensile force necessary to cause the riveting force to assemble the insert nut this is measured in newtons





Diameter (d)Length (L)Body Diameter (D)Head Size (B)Flange Size (S)Drill SizeGrip RangeTorque Testing (Nm)Setting Effort (N)
M5 13.5mm 6.9mm 9.5mm 1.5mm 7.0mm 1.5 - 4.0mm 5.0 10.780
M5 16.0mm 6.9mm 9.5mm 1.5mm 7.0mm 4.0 - 6.5mm 5.0 10.780
M5 18.5mm 6.9mm 9.5mm 1.5mm 7.0mm 6.5 - 9.0mm 5.0 10.780
