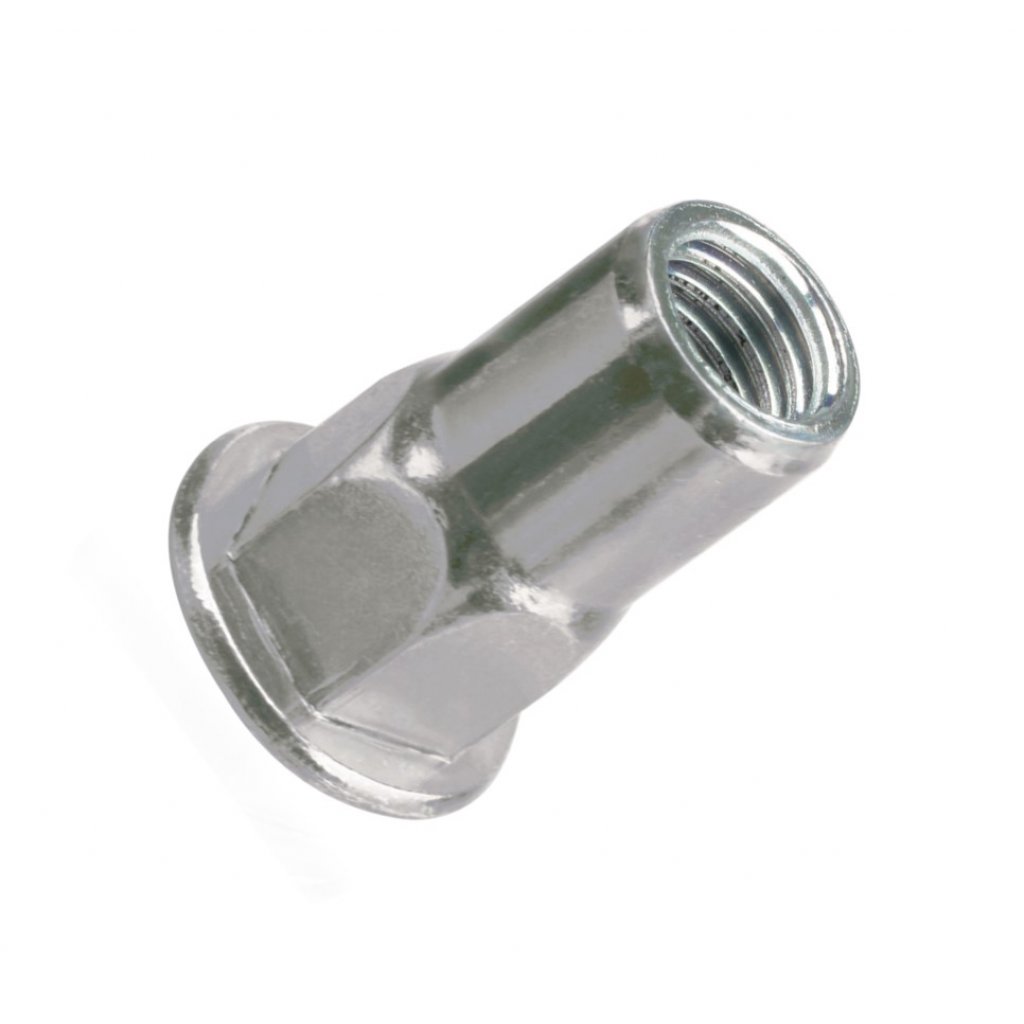

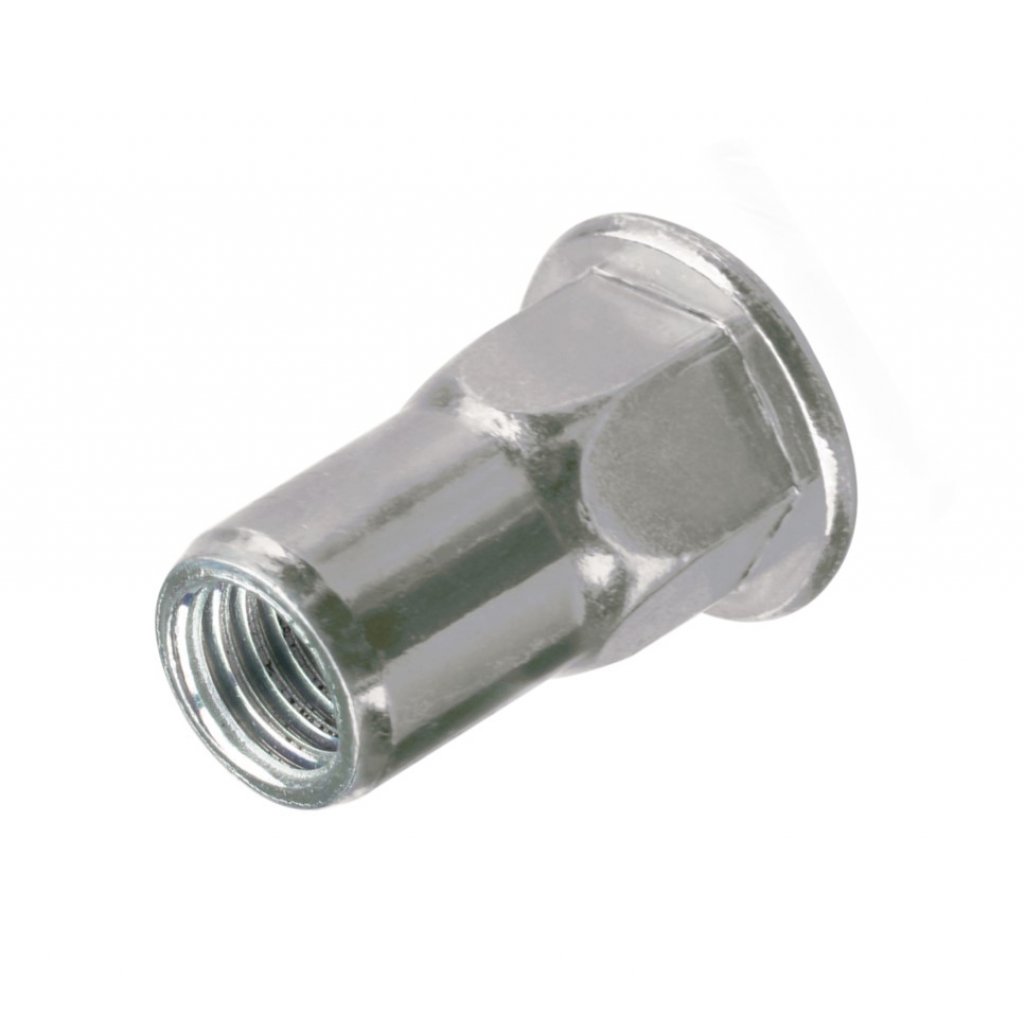

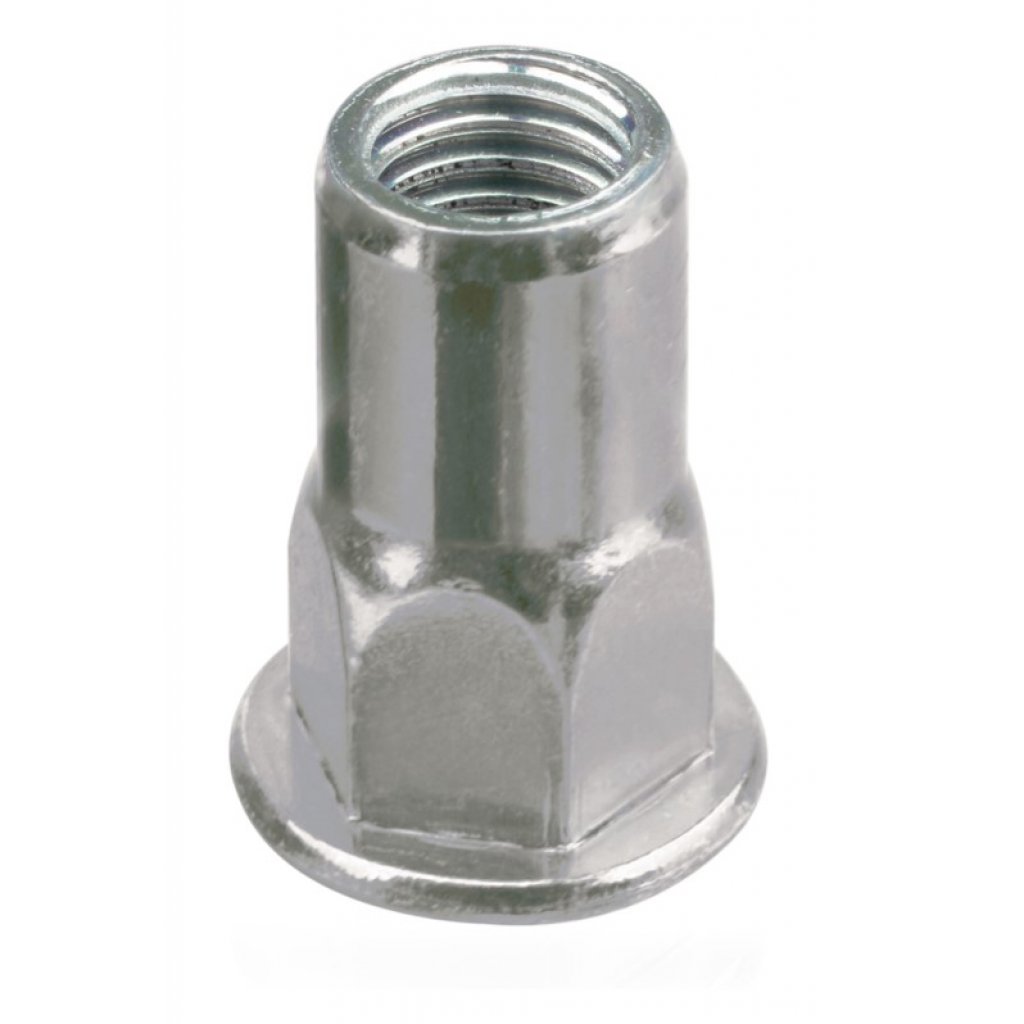

M8 Steel Half Hex Flat Head Open Rivet Nut

Model Number FNOHHFM8SS   Part Number FNOHHFM8SS

M8 Steel Half Hex Flat Head Open Rivet Nut

Our extensive range of Steel Half Hex Flat Head Open Rivet Nuts are perfect for a wide range of applications.

Features
  • Head: Steel | Body: steel
  • Flat Head
  • Grip Range - Please refer to table below
  • Wide range of rivet nut lengths available - Please Select
  • Wide range of pack sizes available - Please Select

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£7.61 ex. vat

£9.13 inc. vat

Buy Now

M8 Steel Half Hex Flat Head Open POP Rivet Nut

Features

Part-on Stock a range of Half hexagon rivet nuts

Benefits

  • Can be easily set into thin material
  • Blind rivet nuts have the same properties as a tapper thread in full material, Because of the strong flush flange after deformation of the rivet nuts
  • Can be set from one side, Where the rear of the material and the inside of the object are inaccessible
  • The material will not be damaged
  • Will not deform or cause discolouration of the material

Types of Applications

  • Automotive Industry
  • HVAC Applications
  • Shipbuilding Industry
  • Hinges
  • Furniture
  • Window Frames

Specification

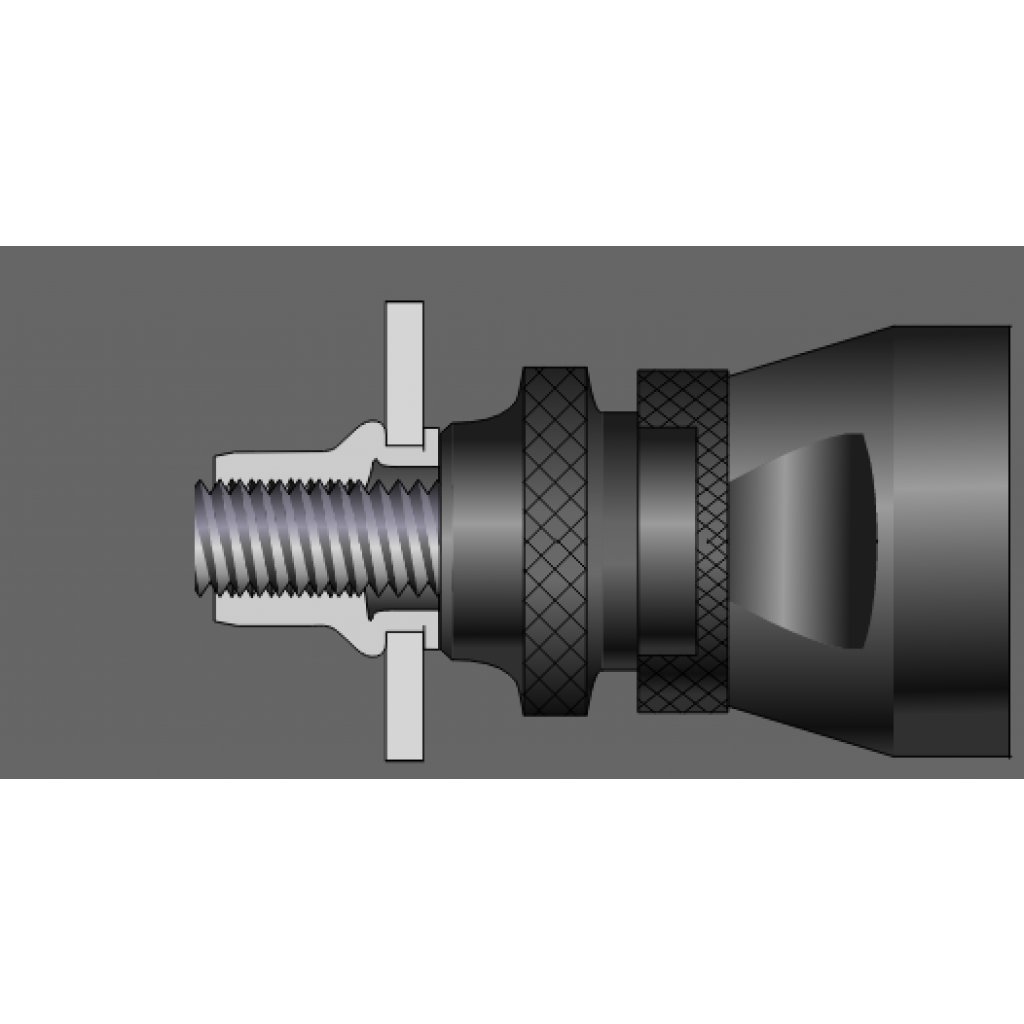

All our rivet nuts are tested as advised in the table and shown in the below diagram the following features are checked for quality & performance purposes.

  • Torque Test -  The torque is the strength which is used to tighten the screw in order to secure the attachment of parts without causing breakage, this is measured in newton meters.
  • Setting Effort - Setting Effort is the tensile force necessary to cause the riveting force to assemble the insert nut, this is measured in newtons.





Diameter (d)Length (L)Body Diameter (M)Head Size (B)Flange Size (S)Punch Size (M1)Grip RangeTorque Testing (Nm)Setting Effort (N)
M8 19.0mm 11.0mm 14.5mm 1.6mm 11.1mm 0.5 - 3.0mm 22.0 21.500

A Hex body rivet nuts can indeed be set with standard rivet nut tooling. Although you need to ensure the rivet nut tools capability suits your thread size and material of rivet nut (ie M5, stainless steel).
