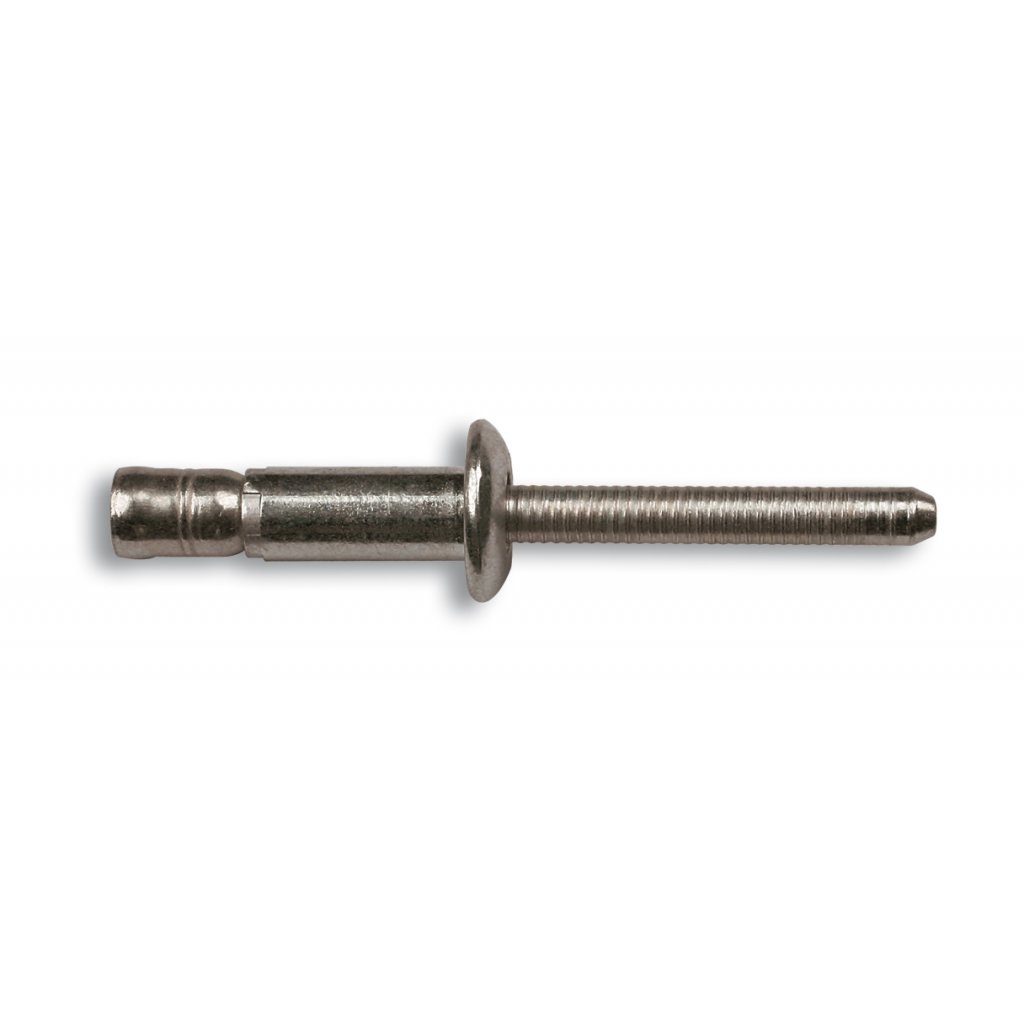

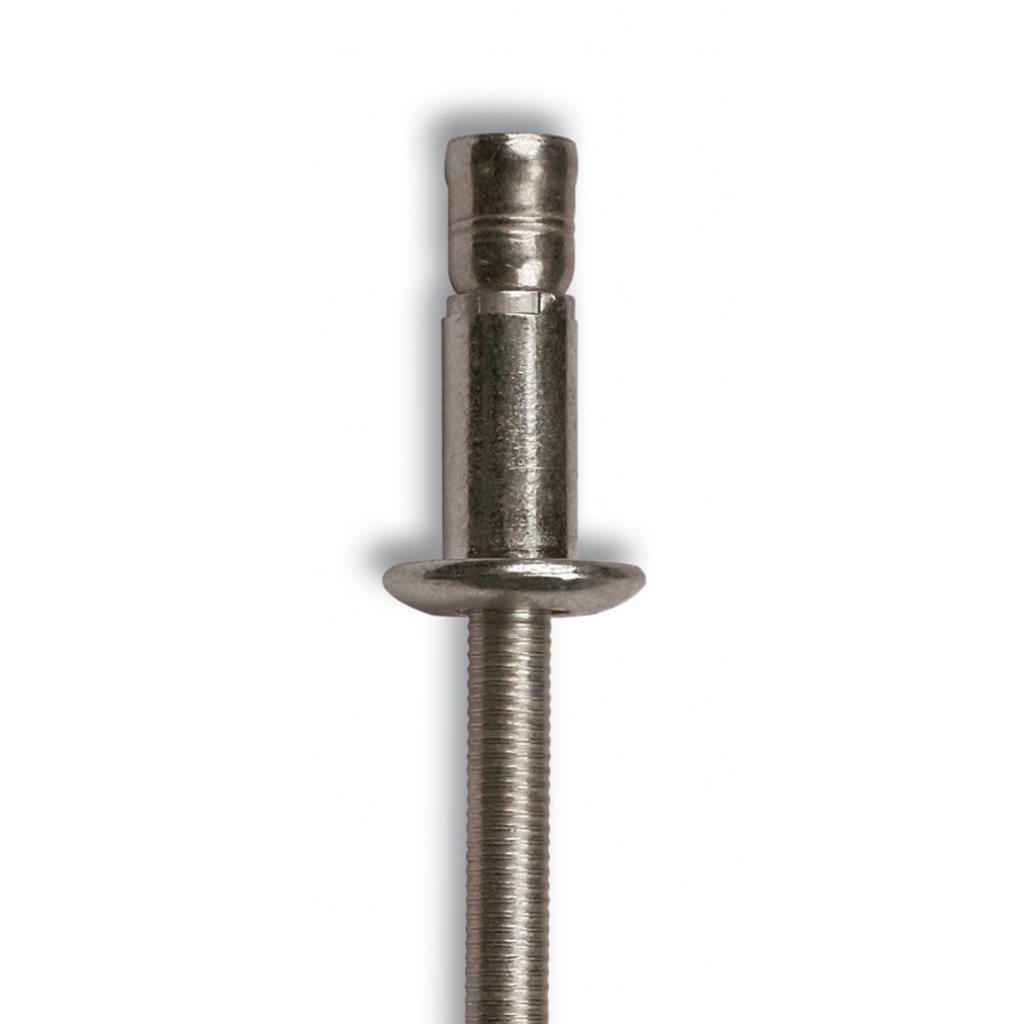

4.8mm Stainless Steel Domed Head High Strength Structural Rivet | Monobolt

Model Number FRFD4811A2   Part Number FRFD4811A2

4.8mm Stainless Steel High Strength Structural Rivet

Our extensive range of Monobolt High Strength Structural Rivets are perfect for a wide range of applications.

Features
  • Body: stainless steel | Mandrel: stainless steel
  • Grip Range - Please refer to table below
  • Wide range of rivet sizes available
  • Wide range of pack sizes available - Please Select

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£12.42 ex. vat

£14.90 inc. vat

Buy Now

4.8mm Stainless Steel High Strength Structural Monobolt Rivet

Features

Our stainless steel domed head high strength structural Monobolt rivets are available in a wide range of materials and head styles. Monobolt is a rivet belonging to the range of structural fixing systems. This product features high-quality mechanical characteristics, high resistance to vibration and a good watertight seal. Generally, it can be used in all cases when the fixing element is subject to great loads

Diameter (d)Length (L)Flange Diameter (D)Drill SizeGrip RangePart Number
4.8mm 11.0mm 9.6mm 4.9mm 1.6 - 6.9mm FRFD4811A2
4.8mm 14.0mm 9.6mm 4.9mm 5.4 - 11.1mm FRFD4814A2

Rivet Specification

Rivet SizeRivet TypeHead TypeBody Material (C)Mandrel Material (D)
4.8mm Monobolt | FARBOLT Domed Head Stainless Steel Stainless Steel

4.8mm Stainless Steel High Strength Structural Monobolt Rivet

Benefits

  • The special locking mechanism increases the clamping force
  • After setting the mandrel is locked permanently
  • A 100% water tight connection
  • High resistance to vibrations
  • Large clamping capacity

Types of Applications

  • Automotive Industry Bodyworks
  • Containers
  • Coach Works
  • Truck Building
  • Construction Work
  • Carpentry
  • Farming Machines
  • Railway Industry

Please note: In order to set Monobolt rivets you will require a structural rivet tool & nose assembly. These can be found on the following links.

FAR RAC171 Structural Rivet Tool (Nose assembly included)

713213 - Structural Jaw Set

717016 - Structural Nose Piece

These rivets are compatible for other structural rivet tools, However to avoid disappointment please enquire for further information.
