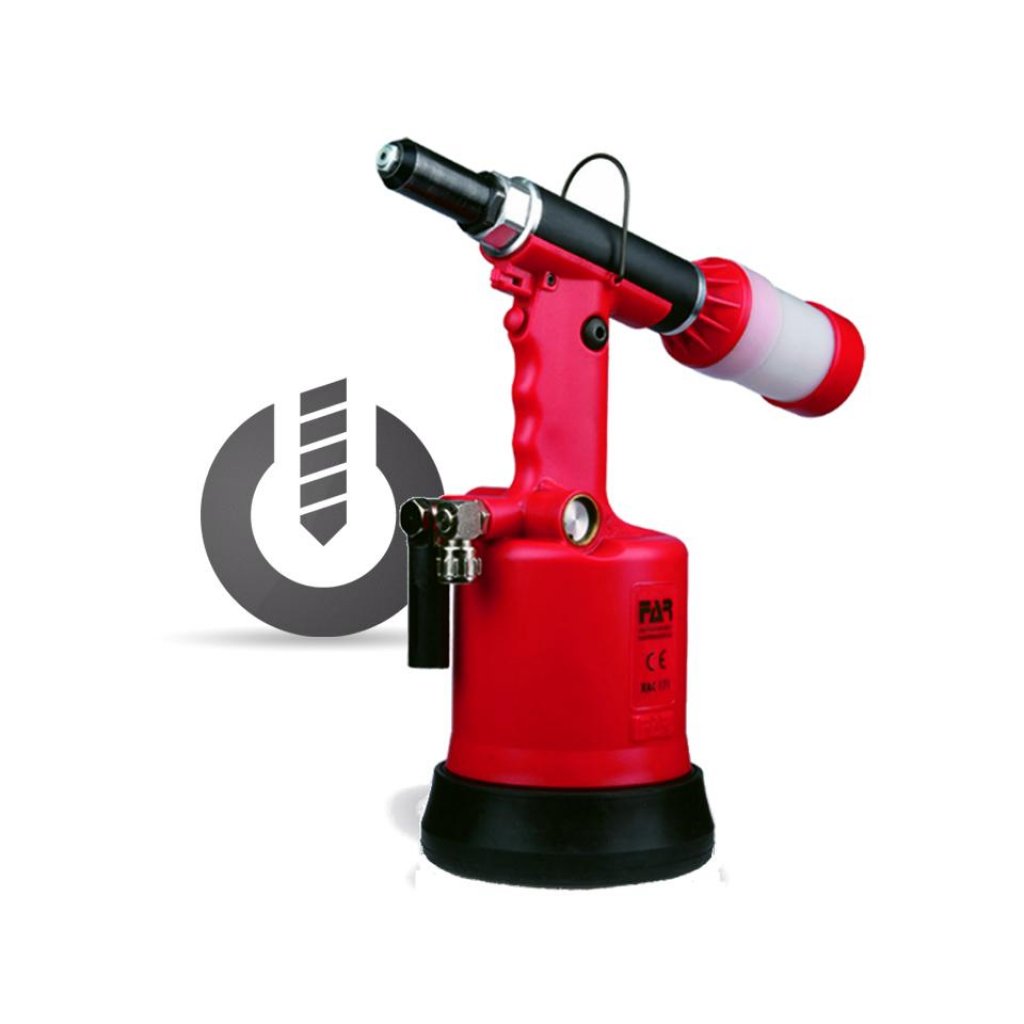

FAR RAC171 Air Riveter
4.8mm - 7.8mm

Model Number RAC171   Part Number 700171

FAR RAC171 | Air Rivet Tool

Our extensive range of FAR Air Rivet Tools Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Suction
  • Stroke 25.5mm
  • Traction Power 17.273 kN
  • 4.8mm - 7.8mm Setting Capacity
  • Nose Pieces Included
  • Capable Of Setting Structural Rivets
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

This product is currently in stock

£388.50 ex. vat

£466.20 inc. vat

Buy Now

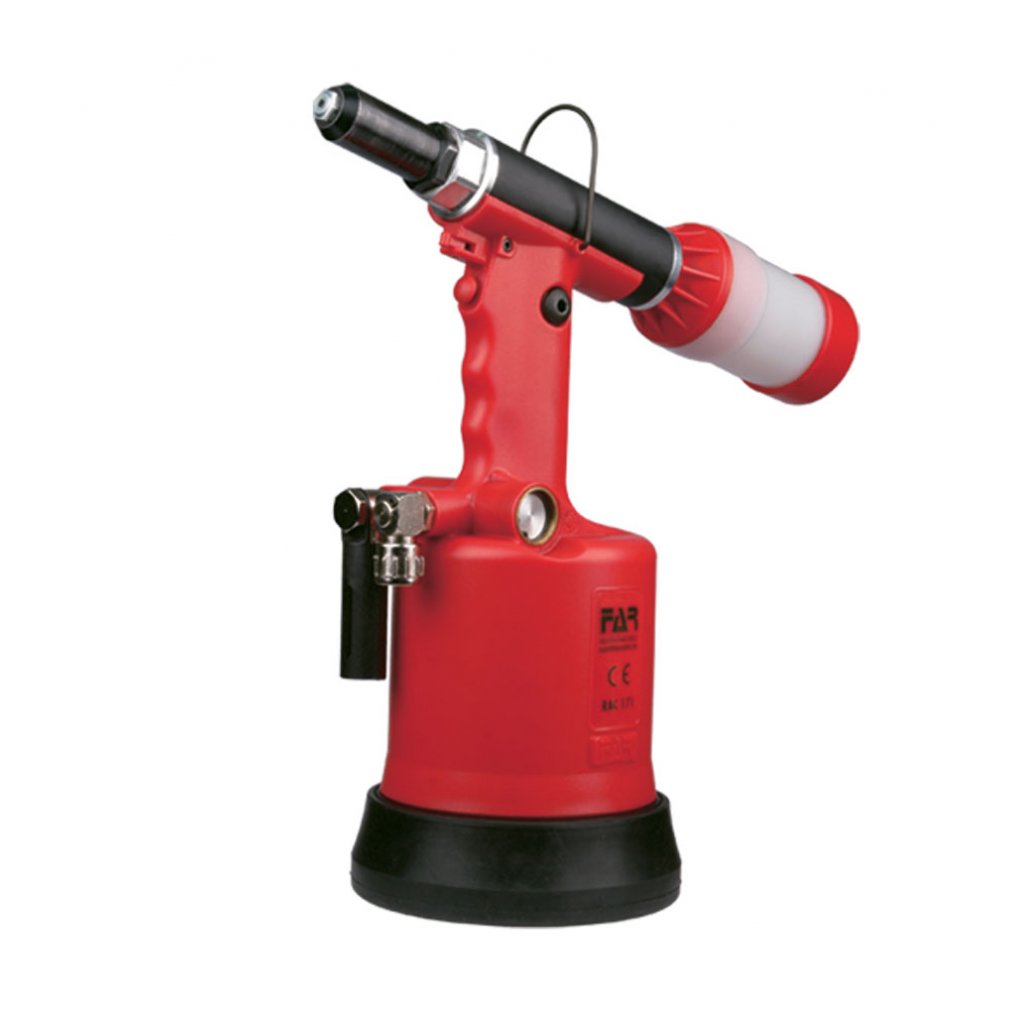

FAR RAC171 Air Rivet Tool

Features

The FAR RAC 171 is a pneumatic rivet tool ideal for setting rivets in a variety of applications.

The FAR RAC171 rivet tool offers a built in vacuum enabling the rivet to be held in place allowing the operator a free hand. A mandrel eject system collects the spent mandrel safely.

With front facing air inlets on a swivel attachment, the FAR RAC171 rivet tool is ideal for use in confined spaces, providing the ability to get into tight areas to set rivets easily and without any fuss.

The FAR RAC171 rivet tool sets rivets in all materials from 4.8 mm - 6.4 mm also 3/16" and 1/4" Monobolts and Huck Magnalok. This versatile Air Riveter also sets 7.8mm in Standard Aluminium Rivets.

Part-on are by FAR the best choice for all rivet and rivet tooling supply and service partnerships. We repair all tools in-house and have extensive knowledge, not only with FAR but all major manufacturers tooling and fasteners making us your perfect partner.

Part-on hold an extensive stock of all spare parts for the FAR RAC171 rivet tool

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Suction
  • Stroke 25.5mm
  • Traction Power 17.273 kN
  • 4.8mm - 7.8mm Setting Capacity
  • Nose Pieces Included
  • Capable Of Setting Structural Rivets
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool

Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm
5.0mm
6.0mm
6.4mm
7.8mm
8.0mm
10.0mm


Setting Capacity (Structural Rivets)

Rivet TypeMonobolt | FARBOLT | Mega GripNose Piece Included
4.8mm
6.4mm
10.0mm
Rivet Type       Hemlok | Tamp | G-Bulb          Nose Piece Included
3.2mm
4.0mm
4.8mm
6.0mm
6.4mm

FAR RAC171 Air Rivet Tool

SpecificationFAR RAC171
Brand FAR
Model RAC171
Part Number 700171
Type Air Rivet Tool
Operating Mode Compressed Air
Setting Capacity 4.8mm - 7.8mm
Stroke 25.5mm
Traction Power 17.273 kN
Suction Automatic
Sets Structural Rivets Yes
Operating Air Pressure 6 BAR
Weight 2.90kg
Warranty One Year
Contents FAR RAC171 Tool | Supplied With Nose Pieces

PART-ON SAYS:

" FAR RAC171 Rivet Tool : Robust, Powerful, Comfortable and Speedy. Best of all Reduced in price"

Need to set up your tool ? We supply a range of Air Fittings, Hoses, Hose Barbs & Couplings. Avalable now in our Pneumatics Section


Why Should I Choose A Riveter With Suction?

It is beneficial to choose a riveter with suction as when the rivet is set, The vacuum suction system pulls the pin through to the collector bottle system.

This saves the operator time when setting several rivets, It also reduces the chance of the tool becoming jammed.

Suction is also beneficial if the operator is setting a rivet into an application at an obscure/awkward place/angle as it keeps the rivet in the head until it has been set.

Tools can offer two types of suction:

  1. Automatic Suction -  This is a feature that can be switched on by the operator, The vacuum suction system will automatically collect the rivet pins.
  2. Triggered Suction - This feature the operator can activate the vacuum suction system by pressing the tool trigger.

The RAC171 offers automatic suction.



Choose Your Set Up



Rivet Type          OffersHead Size(d)Stem Size(C)Nose PieceJaw SetNose Case
Standard 4.8mm 2.9 - 3.0mm  717004   71345507   710562
Standard 6.4mm 3.5mm  717005   71345507   710562
Standard 7.8mm 3.8mm  717007   71345507   710562
FARBOLT/Monobolt 4.8mm 3.0mm  717016   713213   711356
FARBOLT/Monobolt 6.4mm 4.0mm  717015   713213   711356
Tamp 4.8mm 2.9mm  717004   71345507   710562
Tamp 6.0mm 3.8mm  717005   71345507   710562
Tamp 6.4mm 3.8mm  717019   713213   711356
Multi FAR/Multi Grip 4.8mm 2.9 - 3.2mm  717004   71345507   710562
Multi FAR/Multi Grip 6.4mm 3.2 - 3.5mm  717005   71345507   710562
Multi FAR/Multi Grip 6.4mm 3.95mm  717019   713213   711356

Whats Included

  • FAR RAC171 Rivet Tool - Set up with Standard Jaw Set, Nosepiece & Nose Case
  • Priming Pump
  • Tool Manual

Also Inluded In Plastic Case

  • x6 Nose Pieces (717015, 717016, 717018, 717019, 717005 & 717007)
  • x1 Jaw Set (713213)
  • x1 Nose Case (711356)
  • x1 Air Fitting
  • x1 Rubber Deflector
  • x1 Wrench & Hex Key
Part Number Product Title Price
710011/171 710011
Jaw Set
FAR RAC171 Part
Jaws Set rac 171 710011
£9.32 ex. vat Add to cart
710258. 710258
O Ring
FAR RAC171 Part
5-612 RAC 171
£1.05 ex. vat Add to cart
710350 710350
O Ring
FAR RAC171 Part
2-109 RAC 171
£1.05 ex. vat Add to cart
710367. 710367
O Ring
FAR RAC171 Part
2-8 RAC 171
£1.05 ex. vat Add to cart
710402 710402
Seeger Ring
FAR RAC171 Part
22
RAC 171
£1.05 ex. vat Add to cart
710528 710528
O Ring
FAR RAC171 Part
008d
RAC 171
£1.05 ex. vat Add to cart
710562 710562
Nose Case
FAR RAC171 Part
RAC 171
£14.18 ex. vat Add to cart
710822 710822
Valve Piston ll
FAR RAC171 Part
RAC 171
£3.82 ex. vat Add to cart
710824 710824
Push Button
FAR RAC171 Part
RAC 171
£1.05 ex. vat Add to cart
710839. 710839
Oil Tank Plug
FAR RAC171 Part
RAC 171
£2.73 ex. vat Add to cart
710853 710853
Jaw Pusher Spring
FAR RAC171 Part
RAC 171
£1.05 ex. vat Add to cart
710873 710873
Balancer Hook
FAR RAC171 Part
RAC 171
£3.82 ex. vat Add to cart
710905 710905
Seeger Ring
FAR RAC171 Part
RAC 171
£1.05 ex. vat Add to cart
710906. 710906
Washer
FAR RAC171 Part
RAC 171
£1.64 ex. vat Add to cart
710909 710909
Connector
FAR RAC171 Part
2023
RAC 171
£5.45 ex. vat Add to cart
710916 710916
O Ring
FAR RAC171 Part
2-15
RAC 171
£1.05 ex. vat Add to cart
710918. 710918
O Ring
FAR RAC171 Part
2-5
RAC 171
£1.05 ex. vat Add to cart
710919. 710919
O Ring
FAR RAC171 Part
2-4
RAC 171
£1.05 ex. vat Add to cart
710922 710922
O Ring
FAR RAC171 Part
018
RAC 171
£1.05 ex. vat Add to cart
711092. 711092
Key
FAR RAC171 Part
RAC 171
£1.09 ex. vat Add to cart
711225 711225
Cylinder Cover
FAR RAC171 Part
RAC 171
£16.26 ex. vat Add to cart
711252 711252
Tube
FAR RAC171 Part
RAC171
£3.37 ex. vat Add to cart
711253 711253
Valve Piston l
FAR RAC171 Part
RAC 171
£6.36 ex. vat Add to cart
711254 711254
Valve Piston
FAR RAC171 Part
RAC 171
£6.36 ex. vat Add to cart
711259 711259
Cap
FAR RAC171 Part
RAC 171
£1.09 ex. vat Add to cart
711261 711261
Inlet Opening Lever
FAR RAC171 Part
RAC 171
£1.64 ex. vat Add to cart
711270 711270
Jaw Pusher
FAR RAC171 Part
RAC 171
£5.45 ex. vat Add to cart
711273 711273
Container Connector
FAR RAC171 Part
RAC 171
£4.36 ex. vat Add to cart
711304. 711304
Silencer
FAR RAC171 Part
RAC 171
£11.00 ex. vat Add to cart
711305 711305
Connector
FAR RAC171 Part
1631
RAC 171
£4.36 ex. vat Add to cart
711336 711336
O Ring
FAR RAC171 Part
2-114
RAC 171
£1.05 ex. vat Add to cart
711337 711337
O Ring
FAR RAC171 Part
2-21
RAC 171
£1.05 ex. vat Add to cart
711338 711338
O Ring
FAR RAC171 Part
2-3
RAC171
£1.05 ex. vat Add to cart
711339 711339
O Ring
FAR RAC171 Part
2-129
RAC 171
£1.64 ex. vat Add to cart
711340 711340
O Ring
FAR RAC171 Part
2-343
RAC171
£5.91 ex. vat Add to cart
711356 711356
Cone Holder
FAR RAC171 Part
RAC171
£16.27 ex. vat Add to cart
711370 711370
Output Connector
FAR RAC171 Part
RAC 171
£5.55 ex. vat Add to cart
711386 711386
O Ring
FAR RAC171 Part
2-45
RAC 171
£4.36 ex. vat Add to cart
711722. 711722
Balsele Seal Nei
FAR RAC171 Part
RAC 171
£10.81 ex. vat Add to cart
711821. 711821
Seeger Ring Jv
FAR RAC171 Part
RAC171
£1.05 ex. vat Add to cart
712117 712117
Washer
FAR RAC171 Part
Washer Stopping Spring
RAC 171
£1.09 ex. vat Add to cart
712133. 712133
Rotating Connector
FAR RAC171 Part
Rotating Air Connector
RAC 171
£6.37 ex. vat Add to cart
712162. 712162
Silencer Protector
FAR RAC171 Part
RAC 171
£1.37 ex. vat Add to cart
712268 712268
Spring Guide Plug
FAR RAC171 Part
RAC 171
£4.36 ex. vat Add to cart
712282 712282
Safety Washer
FAR RAC171 Part
RAC 171
£1.05 ex. vat Add to cart
713213 713213
Monobolt Jaw Set
FAR RAC171 Part
RAC 171
£15.82 ex. vat Add to cart
713247 713247
Bush
FAR RAC171 Part
RAC 171
£3.00 ex. vat Add to cart
713253 713253
Head
FAR RAC171 Part
Carrying Nozzle
RAC 171
£18.44 ex. vat Add to cart
713258 713258
Anti-Extrusion Ring
FAR RAC171 Part
RAC 171
£5.73 ex. vat Add to cart
713272 713272
O Ring
FAR RAC171 Part
2-125
RAC 171
£1.09 ex. vat Add to cart
713273 713273
O Ring
FAR RAC171 Part
RAC 171
£1.05 ex. vat Add to cart
713274 713274
O Ring
FAR RAC171 Part
RAC 171
£1.05 ex. vat Add to cart
713275 713275
O Ring
FAR RAC171 Part
2-122p
RAC 171
£1.09 ex. vat Add to cart
713276 713276
Balsele Seal Tse
FAR RAC171 Part
RAC 171
£9.72 ex. vat Add to cart
713278 713278
O Ring
FAR RAC171 Part
2-122
RAC 171
£1.09 ex. vat Add to cart
713281 713281
Gasket Tts
FAR RAC171 Part
RAC 171
£7.00 ex. vat Add to cart
713282 713282
Balsele Seal Tse
FAR RAC171 Part
RAC 171
£9.72 ex. vat Add to cart
713391 713391
Key
FAR RAC171 Part
RAC 171
£2.00 ex. vat Add to cart
71345212 71345212
Rubber Deflector
FAR RAC171 Part
Nails Baffle
RAC 171
£2.82 ex. vat Add to cart
71345507. 71345507
High Performance Jaw Set FAR RAC171 Part
RAC 171
£17.52 ex. vat Add to cart
717004 717004
4.8mm Nosepiece
FAR RAC171 Part
Nozzle
RAC 171
£2.28 ex. vat Add to cart
717005 717005
6.0 - 6.4mm Nosepiece FAR RAC171 Part
Nozzle
RAC 171
£2.28 ex. vat Add to cart
717016 717016
4.8mm Monobolt Nosepiece FAR RAC171 Part
Nozzle
RAC 171
£11.36 ex. vat Add to cart
717018 717018
4.8mm Huck Nosepiece FAR RAC171 Part
Nozzle
RAC 171 | Magna Lok
£5.45 ex. vat Add to cart
721275 721275
Trigger Assembly
FAR RAC171 Part
Long Valve Body
RAC 171
£23.44 ex. vat Add to cart
721387. 721387
Oil Container
FAR RAC171 Part
Priming Pump
rac 171
£11.77 ex. vat Add to cart
740819. 740819
Collector Bottle Kit
FAR RAC171 Part
rac 171
£5.18 ex. vat Add to cart
740840 740840
Valve Spacer Kit
FAR RAC171 Part
rac 171
£8.10 ex. vat Add to cart

No questions or answers have been posted about this item.

Ask a question

Please enter your question below and you receive an email once it has been answered

×
Ask a question
Sorry, you do not have the right plugin.
Download the PDF here

Part On delivers orders using Road Transport Courier Service. This is to ensure the goods are delivered safely and effectively to customers. We offer an option to upgrade to an AM delivery for an extra charge to you, the customer, and this can be arranged by telephone to Part On office 0121 439 7152.

Orders are dispatched using 24/48 hour Road Transport Courier Service for UK Mainland.

Offshore orders can be delivered for an extra charge, including Southern Ireland.

Deliveries must be signed for on delivery, no shipments are left without a signature. Should the delivery not be possible at the designated address ... Read More

Return of goods must be within 5 days of receiving the delivery note or invoice whichever is
received by you, the customer, first. To enable Part On to issue a refund the goods must be in
Its original packaging and condition, this is to ensure the goods are fit for resale.
If the packaging is damaged in any way you, the customer, may incur handling charges.

Goods must be returned to Part On office address:

Part-on Tools Limited
Unit 21 Kings Norton Trading Estate
Stockmans Close
Kings Norton
Birmingham
B38 9TS


Part On are not responsible for Read more...

>

Customer Reviews for FAR RAC171 Air Riveter
4.8mm - 7.8mm

Write a Review

Be the first to write a review for FAR RAC171 Air Riveter
4.8mm - 7.8mm.

What makes a good review?

  • Select a overall star rating for the item to recived
  • Be detailed and specific, talk about the product purchased, the customer service and delivery.
  • Not too short and not too long. Aim for between 75 and 300 words.

Click stars to select a rating:
12345

© 2019 Part On Tools

safe payments by Secure Payments    iD30 eCommerce
