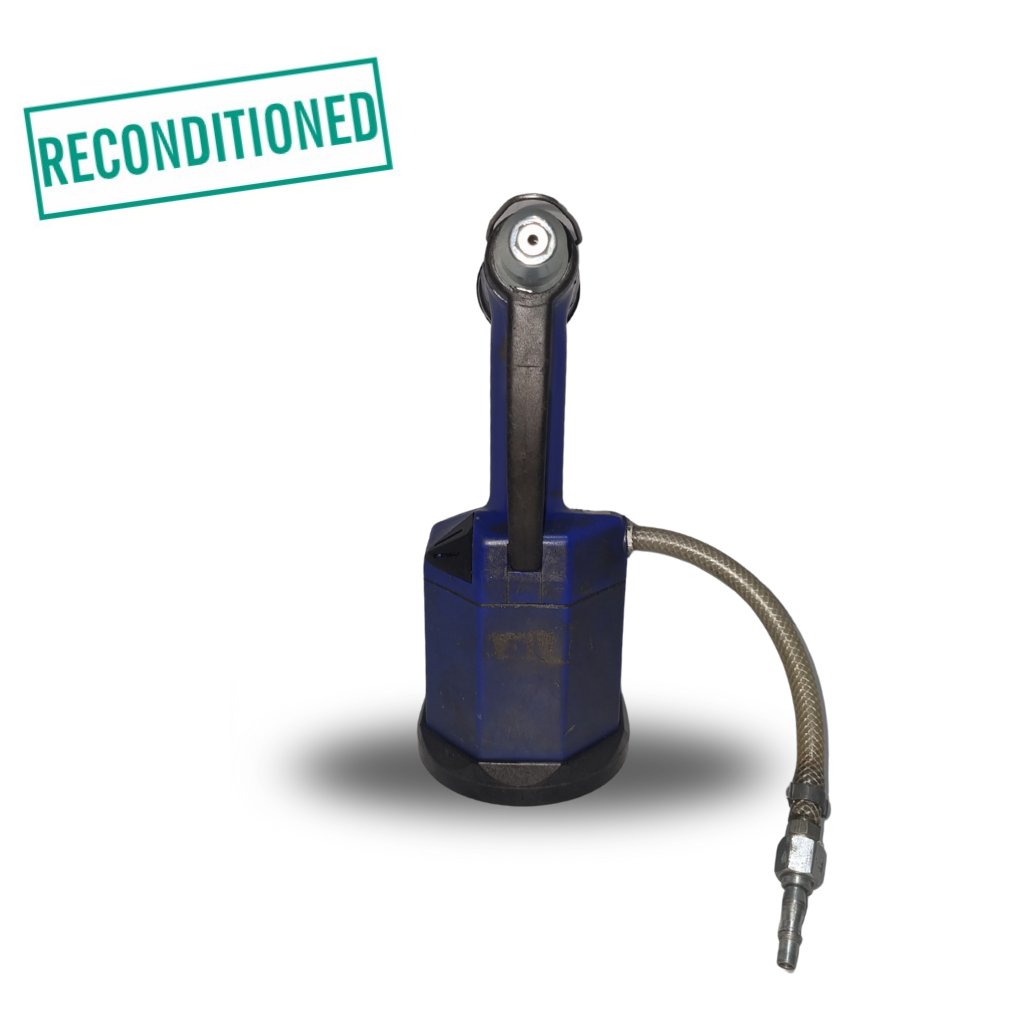

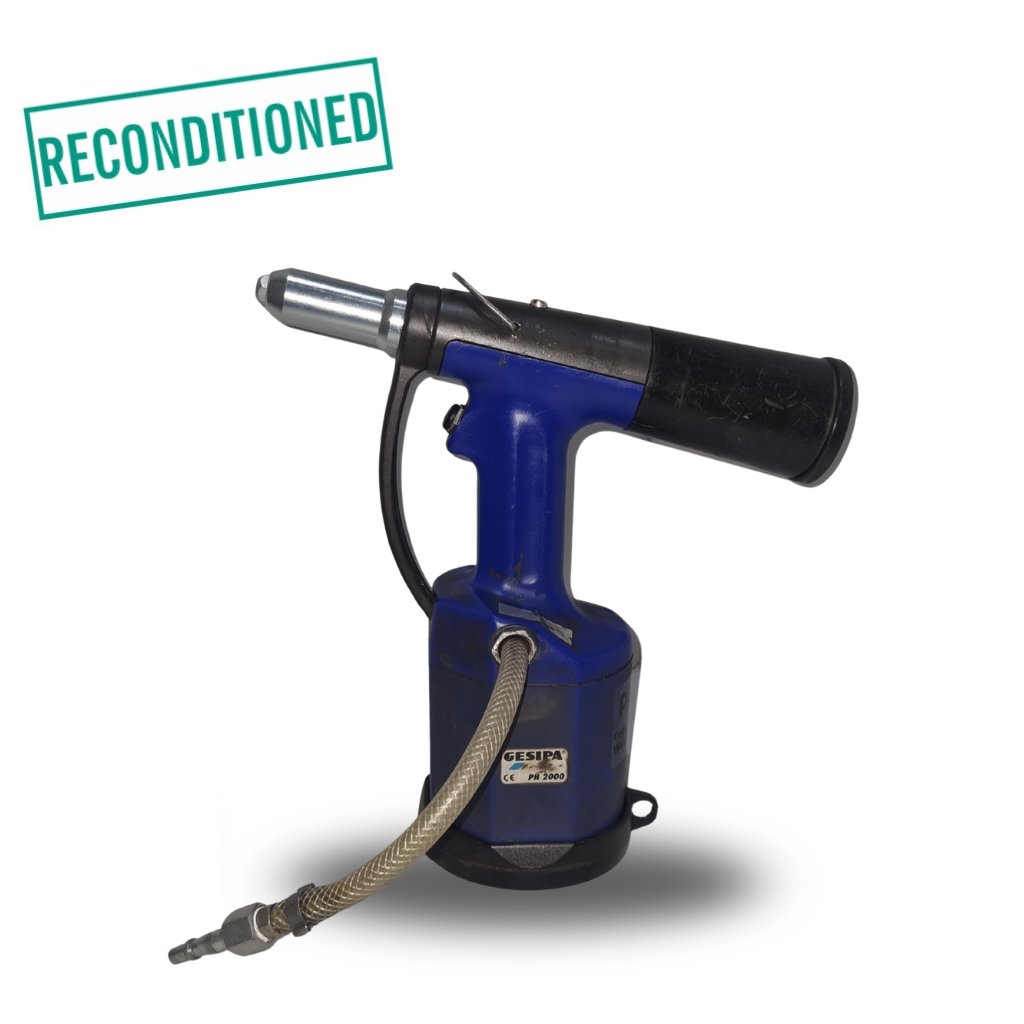

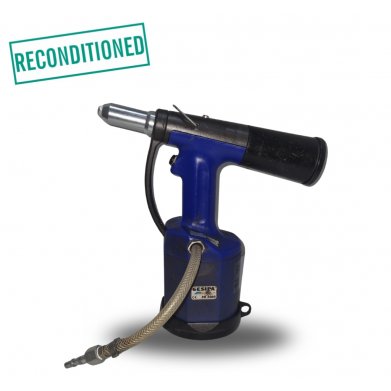

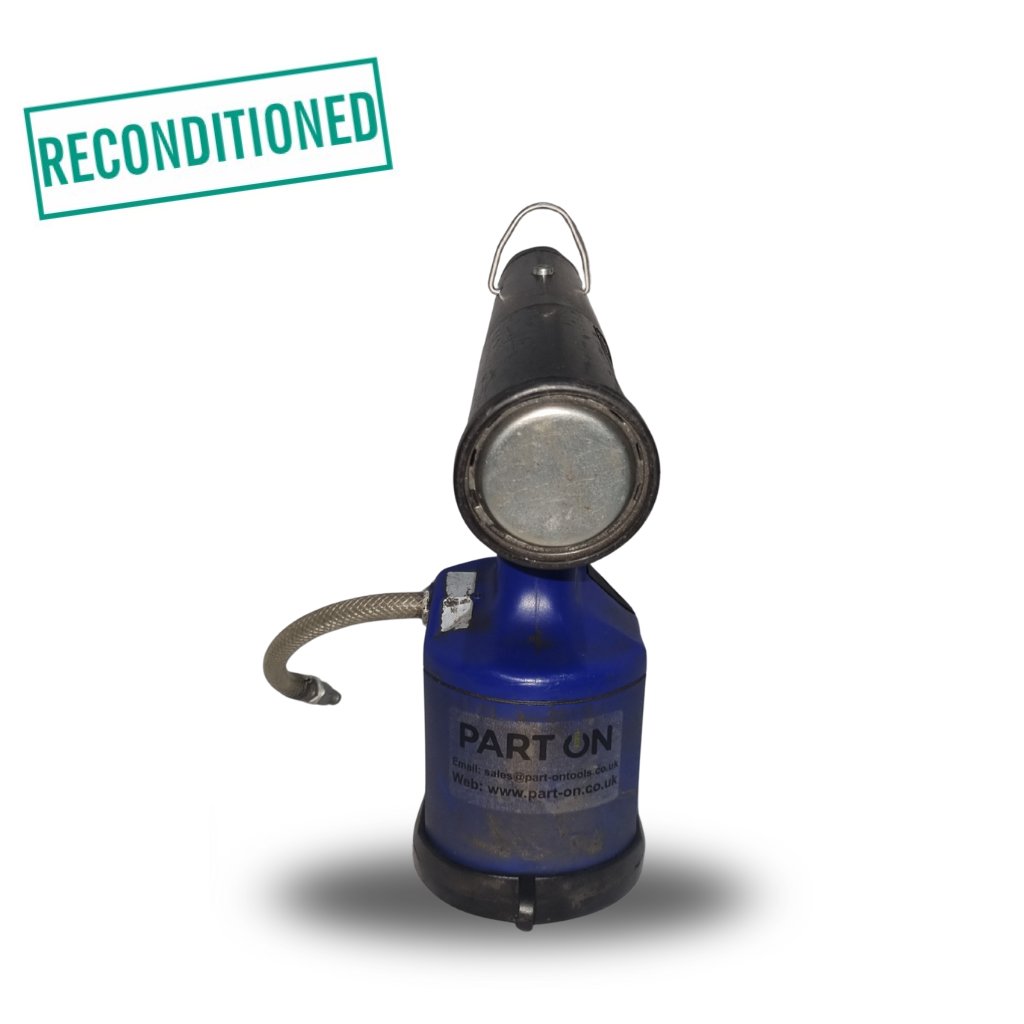

Gesipa PH2000 Air Rivet Tool

Features

The Gesipa PH2000 is a high-performance, heavy-duty pneumatic-hydraulic riveter designed for industrial-scale production. Engineered for power and speed, it effortlessly sets blind rivets from 2.4mm up to 6.4mm across all materials, including Stainless Steel.

Advanced Mandrel Disposal System

The PH2000 features a patented integrated mandrel disposal system. Unlike other tools, no retrofitting is required.

• Efficiency: The tool repurposes the compressed air from the setting process to automatically eject the broken mandrel into the collection container.

• Cost-Saving: This dual-use air system reduces overall air consumption and keeps the workspace clear.

Technical Highlights

• Massive 22mm Stroke: Guarantees the rivet is set in a single action without the need for re-engagement, significantly speeding up production and extending oil-refill intervals.

• High Power-to-Weight Ratio: Delivers high setting force within a lightweight, ergonomic body to reduce operator fatigue.

• Industrial Build Quality: Features an Aluminium hydraulic head with a wear-proof cylinder surface and a pneumatic cylinder protected by an impact-resistant plastic sheath.

• Rapid Working Sequence: Equipped with a pneumatic piston return and a direct pneumatic trigger valve for fast, reliable operation.

Product Specifications & Benefits

• Setting Capacity: 2.4mm – 6.4mm (All materials).

• Ready to Use: Supplied set up for 4.8mm rivets with a Fitting included.

• Versatile Handling: Universal design for easy handling in various assembly positions.

• Maintenance Friendly: Designed for long service intervals and easy part replacement.

The Part-On Reconditioned Guarantee

• 3-Month Warranty: Fully inspected and tested by our in-house technical team.

• UK Support: Part-On provides full servicing and stocks a comprehensive range of genuine Gesipa spare parts.
