FAR RAC182 Air Riveter
2.4mm - 6.0mm

Model Number RAC182   Part Number 700182

FAR RAC182 | Air Rivet Tool

Our extensive range of FAR Air Rivet Tools Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Suction
  • Tool Features Triggered Suction
  • Stroke 20.5mm
  • Traction Power 10.50 kN
  • 2.4mm - 6.0mm Setting Capacity
  • Nose Pieces Included
  • Capable Of Setting Structural and Trifar Rivets
  • New Replacement Tool For The RAC181
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Be the first to review this item

This product is currently in stock

was £498.88

£339.00 ex. vat

£406.80 inc. vat

Buy Now

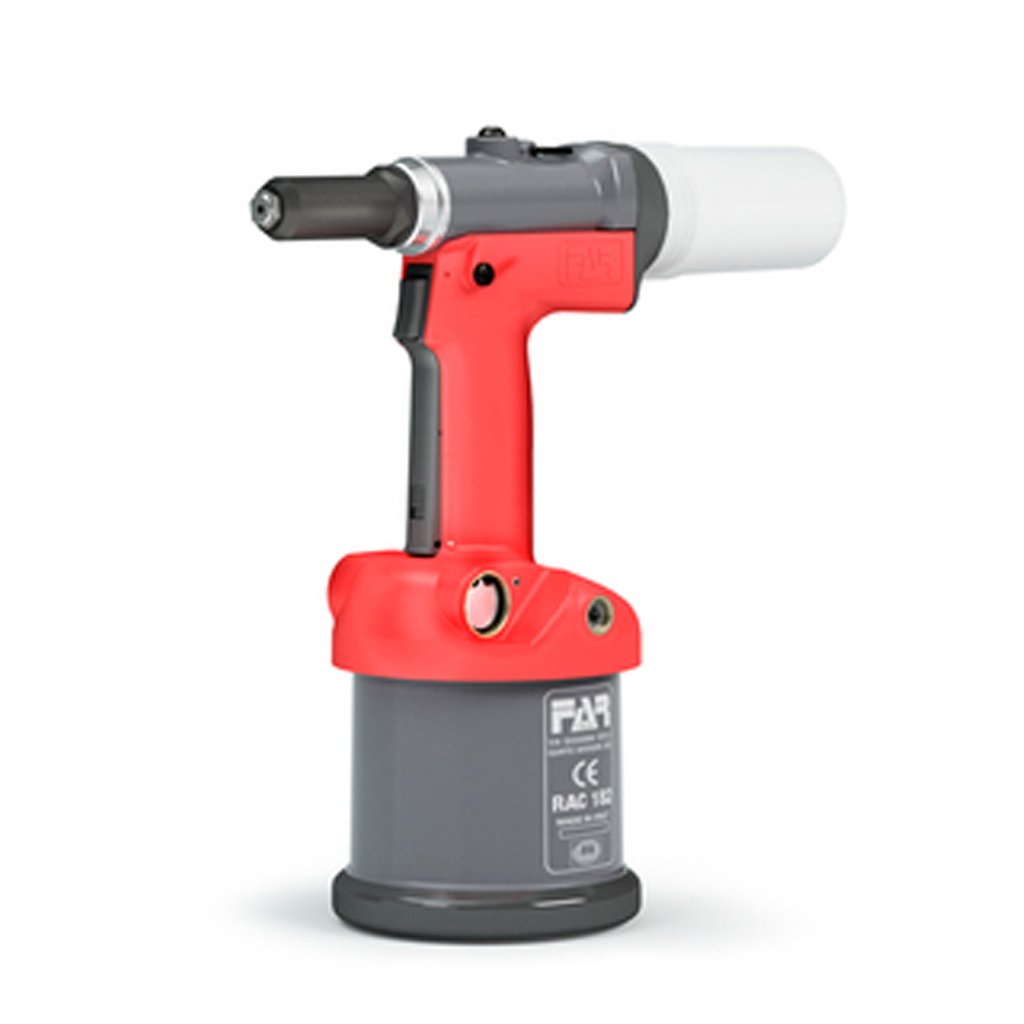

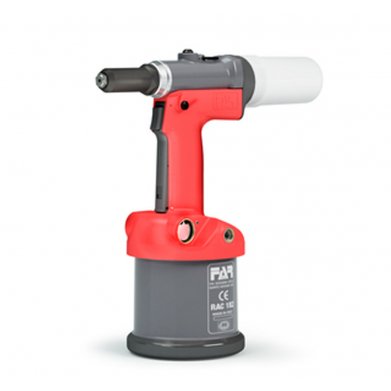

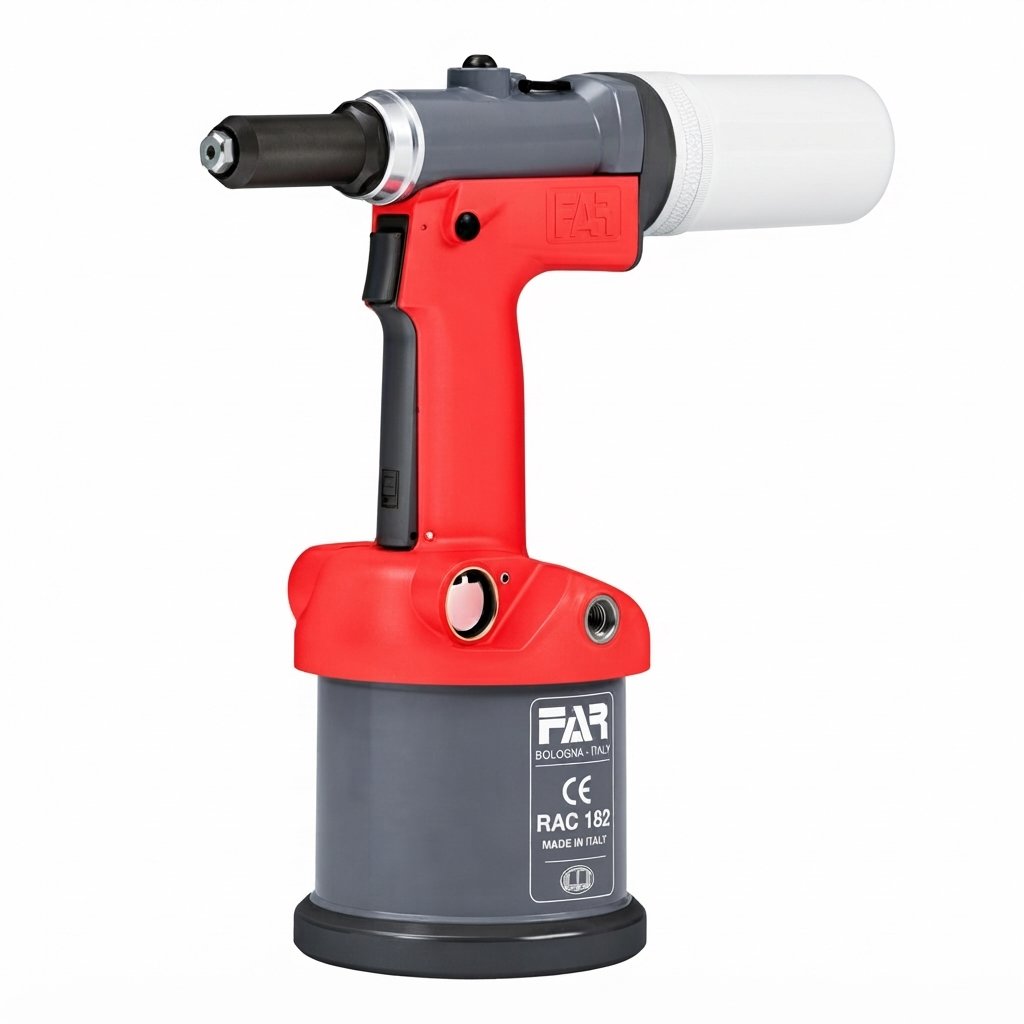

FAR RAC182 Air Rivet Tool





Features

The FAR RAC182 Riveter is a hydropneumatic tool perfect for use with blind rivets from 2.4mm up to 4.8mm in aluminium ,steel and stainless steel and up to 6.0mm in aluminium. It will also set 3.2 - 4.8mm FarBolt, Tamp, Mulinox, Trifar, Magna-Lok and Monobolt applications. All standard POP rivet nosepieces sold complete with tool.

The FAR RAC182 is a Heavy Duty Tool which is perfect for high volume production due to its light weight structure and operator friendly design.

Designed with a vacuum and auto ejection system similar to the FAR RAC170 / RAC181 this ensures the FAR RAC182 will retain the rivet in the nozzle for easier application.

Air inlets can be set up on either side of the tool

The simple operation of this tool makes for an excellent choice in any high volume production environment.

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Suction
  • Tool Features Triggered Suction
  • Stroke 20.5mm
  • Traction Power 10.50 kN
  • 2.4mm - 6.0mm Setting Capacity
  • Nose Pieces Included
  • Capable Of Setting Structural and Trifar Rivets
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool



Do you require a tool repair / service? Click Here!



Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm
5.0mm
6.0mm
6.4mm
7.8mm
8.0mm
10.0mm



Setting Capacity (Structural Rivets)

Rivet TypeMonobolt | FARBOLT | Mega GripNose Piece Included
4.8mm
6.4mm
10.0mm
Rivet Type       Hemlok | Tamp | G-Bulb          Nose Piece Included
3.2mm
4.0mm
4.8mm
6.0mm
6.4mm
Rivet Type       X/S - Trifar          Nose Piece Included
5.0mm



Whats New

The FAR RAC 182 is the new replacement tool of the previous highly successful FAR RAC 181 air rivet tool & is avalible now at Part-on.

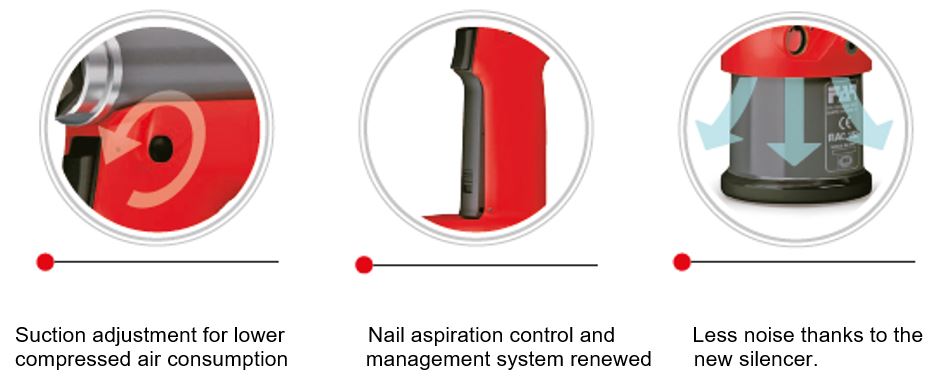

  • New suction adjustment for lower compressed air consumption
  • New nail aspiration control and management system renewed
  • Less noise thanks to the new silencer
  • Learn more on our blog

FAR RAC182 Air Rivet Tool

SpecificationFAR RAC182
Brand FAR
Model RAC182
Part Number 700182
Type Air Rivet Tool
Operating Mode Compressed Air
Setting Capacity 2.4mm - 6.0mm
Stroke 20.5mm
Traction Power 10.50 kN
Suction Automatic & Triggered
Sets Structural Rivets Yes
Operating Air Pressure 6 BAR | 90 PSI
Weight 1.70kg
Warranty With Part-On Servicing One Year
Contents FAR RAC182 Tool | Supplied With Nose Pieces

PART-ON SAYS:

" FAR RAC182 Rivet Tool : Robust, Comfortable and Speedy. Best of all Reduced in price!"

Need to set up your tool ? We supply a range of Air Fittings, Hoses, Hose Barbs & Couplings. Avalable now in our Pneumatics Section"

"Part-On supplies it all! Tooling? Repairs? or Fasteners? Purchase all you need at Part-On!"


Why Should I Choose A Riveter With Suction?

It is beneficial to choose a riveter with suction as when the rivet is set, The vacuum suction system pulls the pin through to the collector bottle system.

This saves the operator time when setting several rivets, It also reduces the chance of the tool becoming jammed.

Suction is also beneficial if the operator is setting a rivet into an application at an obscure/awkward place/angle as it keeps the rivet in the head until it has been set.

Tools can offer two types of suction:

  1. Automatic Suction -  This is a feature that can be switched on by the operator, The vacuum suction system will automatically collect the rivet pins.
  2. Triggered Suction - This feature the operator can activate the vacuum suction system by pressing the tool trigger.

The RAC182 offers both of these features
