FAR RAC172 Structural Air Riveter
6.0 - 7.8mm

Model Number 700172   Part Number RAC172

FAR RAC172 | Air Rivet Tool

Our extensive range of FAR Air Rivet Tools Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Designed to fasten high performance rivets
  • Stroke 19.5mm
  • Maximum Force: 22725 N
  • 6.0mm - 7.8mm Setting Capacity
  • Capable Of Setting Structural Rivets
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
  • Click "Manual" for the drawing and parts list!
  • Write a review

    was £1,070.00

    £616.40 ex. vat

    £739.68 inc. vat

Buy Now

RAC 172 FAR Air Riveter

Features

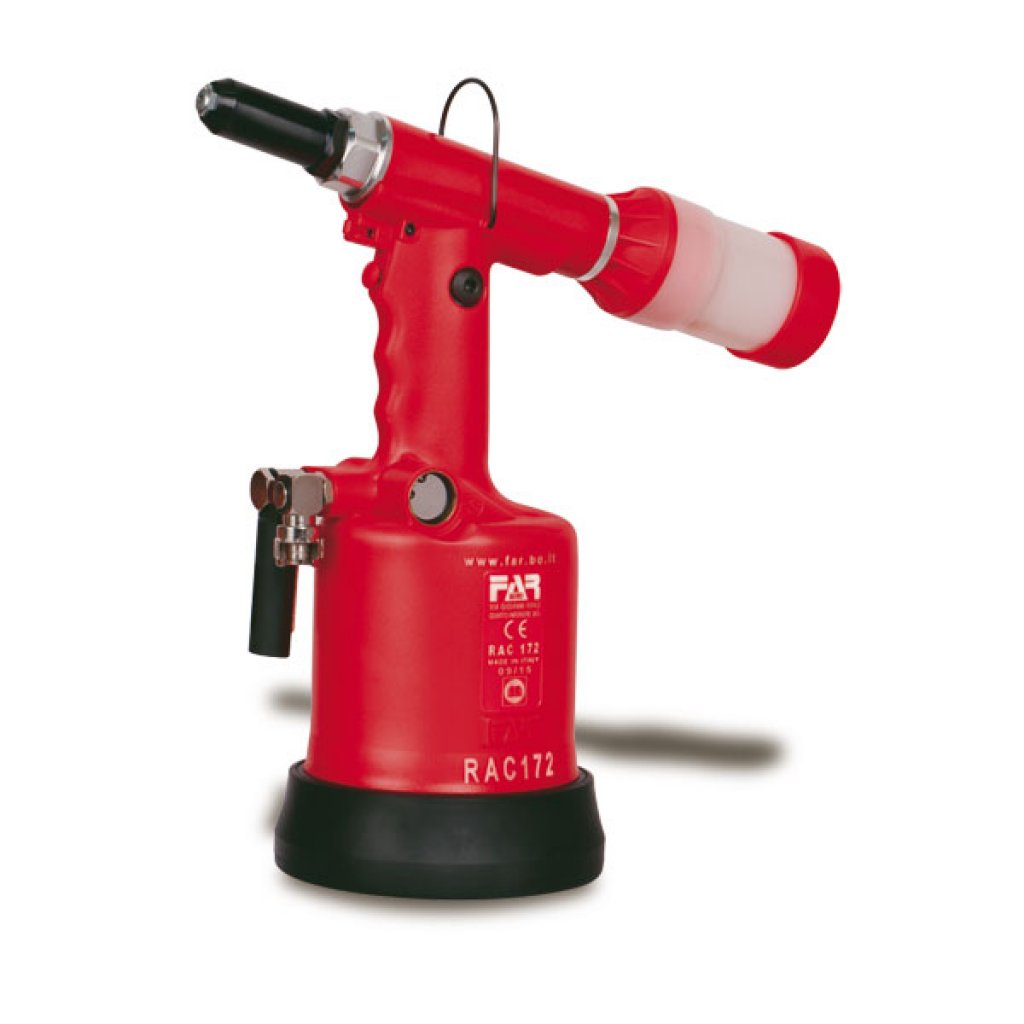

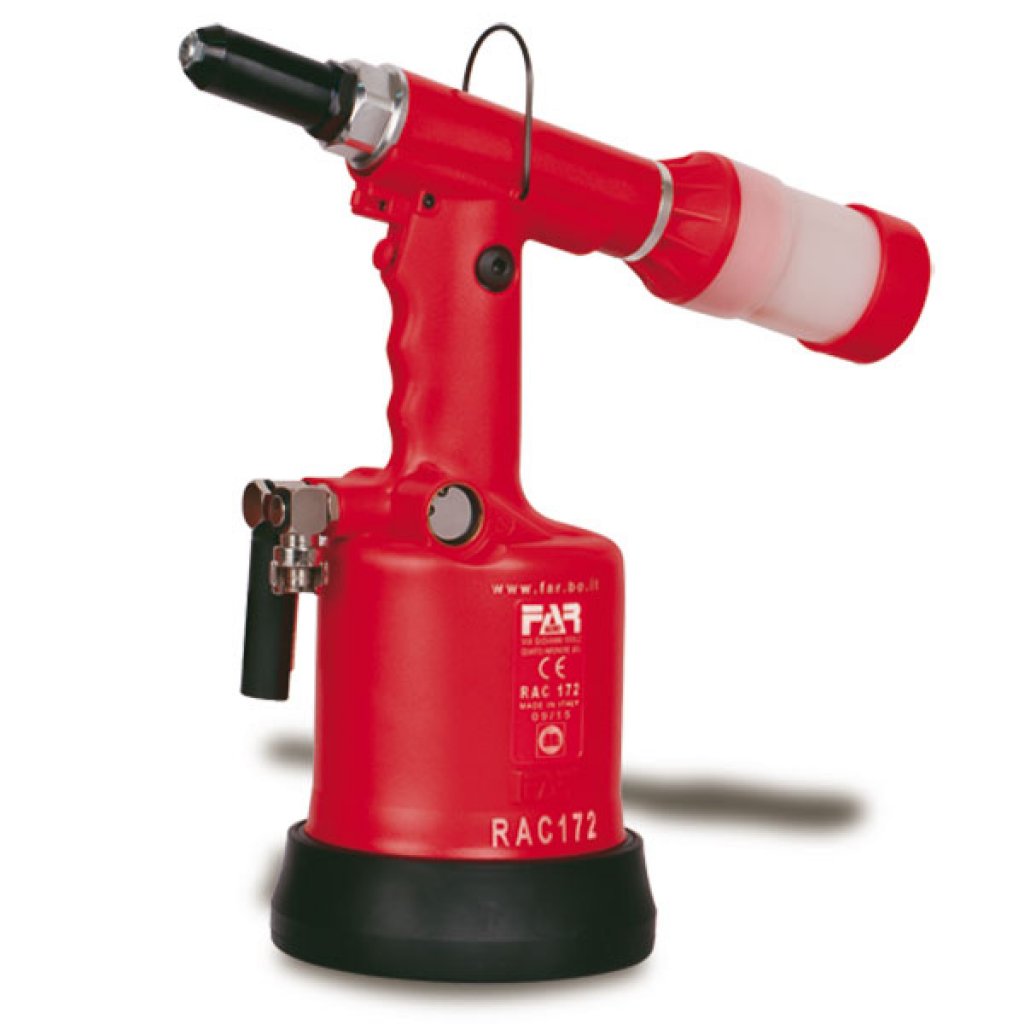

The FAR RAC 172 is a hydro pneumatic rivet tool ideal for setting high performance rivets with ø 6mm or 6.4mm and grooved nail

The FAR RAC172 has a improved cycle time - over other tooling - due to having a shorter stroke specific to structual fastener.

The riveting air tool is able to provide a force of 22725N and a stroke of 19,5 mm. Which gives the possibility to fix rivets such as TAMP AP, FARBOLT, MONOBOLT or other similar high performance rivets.

The FAR RAC172 rivet tool sets monobolt and tamp AP rivets in all materials from 6.0mm - 6.4 mm (1/4") Monobolts and Tamp AP. This versatile Air Riveter also sets 7.8mm in Standard Aluminium Rivets with head part number 72000191.

Part-on are by FAR the best choice for all rivet and rivet tooling supply and service partnerships. We repair all tools in-house and have extensive knowledge, not only with FAR but all major manufacturers tooling and fasteners making us your perfect partner.

Part-on hold an extensive stock of all spare parts for the FAR RAC172


Benefits

    • Lightweight, Fast Operation
    • Ideal For high performance rivets with ø 6mm or 6.4mm and grooved nails
    • Stroke 19.5mm
    • Maximum Force 22725N
    • 6.0mm - 7.8mm Setting Capacity
    • Capable Of Setting Structural Rivets
    • Supplied With One Year's Manufacture Warranty
    • Part-on Can Service & Provide Spare Parts For This Tool


Do you require a tool repair / service? Click Here!



Setting Capacity (Structural Rivets)

Rivet TypeMonobolt | FARBOLT | Mega Grip
6.0mm
6.4mm
7.8mm


Rivet Type       Hemlok | Tamp | G-Bulb
6.0mm
6.4mm

FAR RAC172 Air Rivet Tool

Thanks to the maximum conversion of applied force (22.725N), the RAC172 riveting tool can set the new TAMP AP high-performance rivets and other fasteners withmandrel diameter from 4.4 mm to 5.3 mm, including commercially available rivets.

In addition, unlike alternative tools designed for use with high-performance rivets, the RAC 172 by FAR can recover the sheared mandrel tail once the rivet has been set.

SpecificationFAR RAC172
Brand FAR
Model RAC172
Part Number 700172
Type Air Rivet Tool
Operating Mode Compressed Air
Setting Capacity 6.0mm - 7.8mm
Stroke 19.5mm
Maximum Force 22725 N

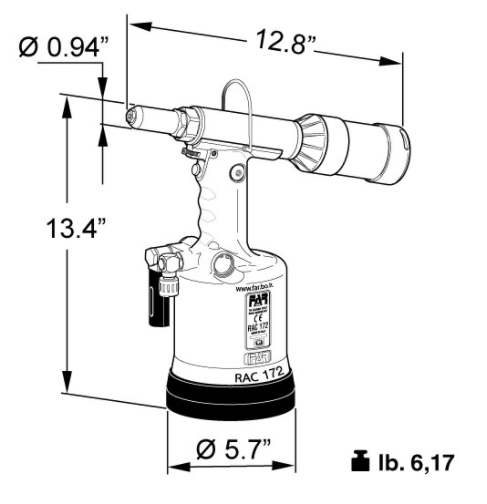

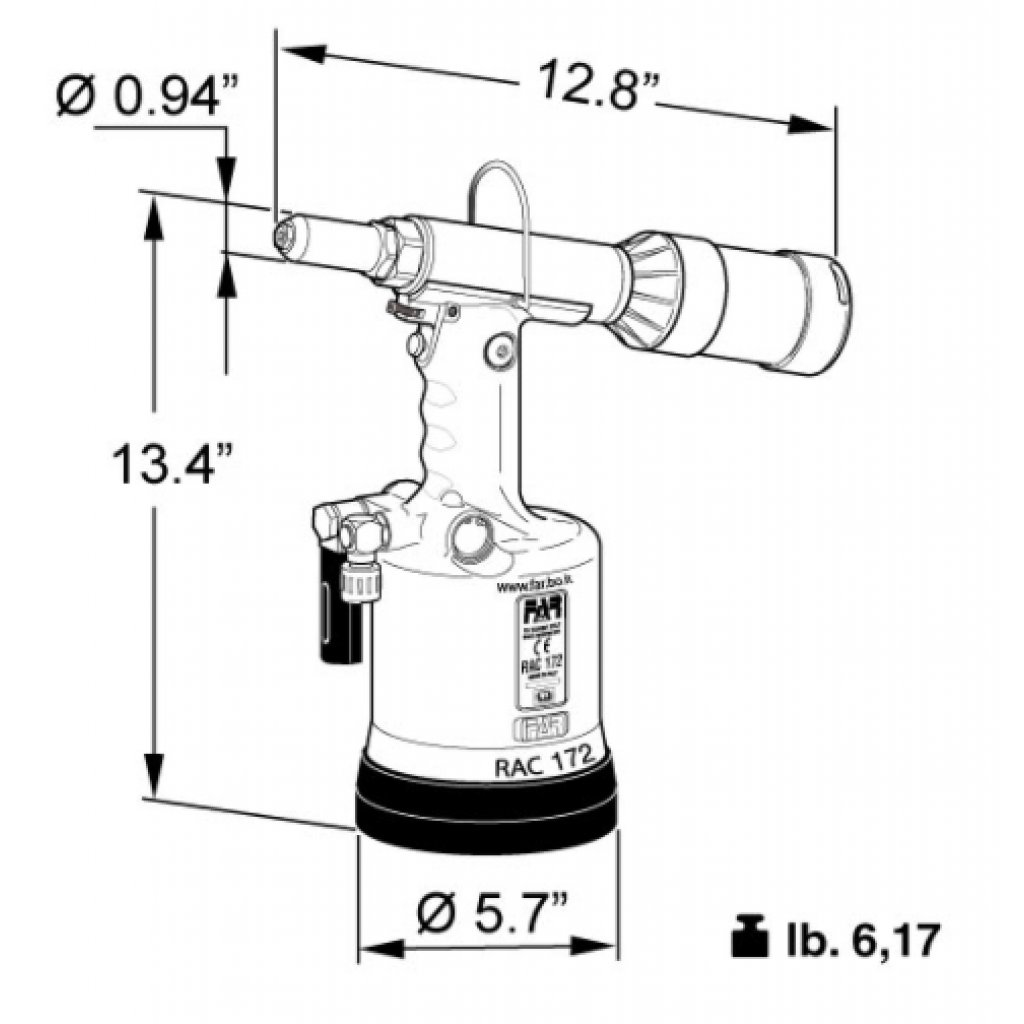

Dimensions 16 × 11 × 7 in
Sets Structural Rivets Yes
Operating Air Pressure 6 BAR
Weight 11lbs (4.9kg)
Warranty One Year
Contents FAR RAC172 Tool
