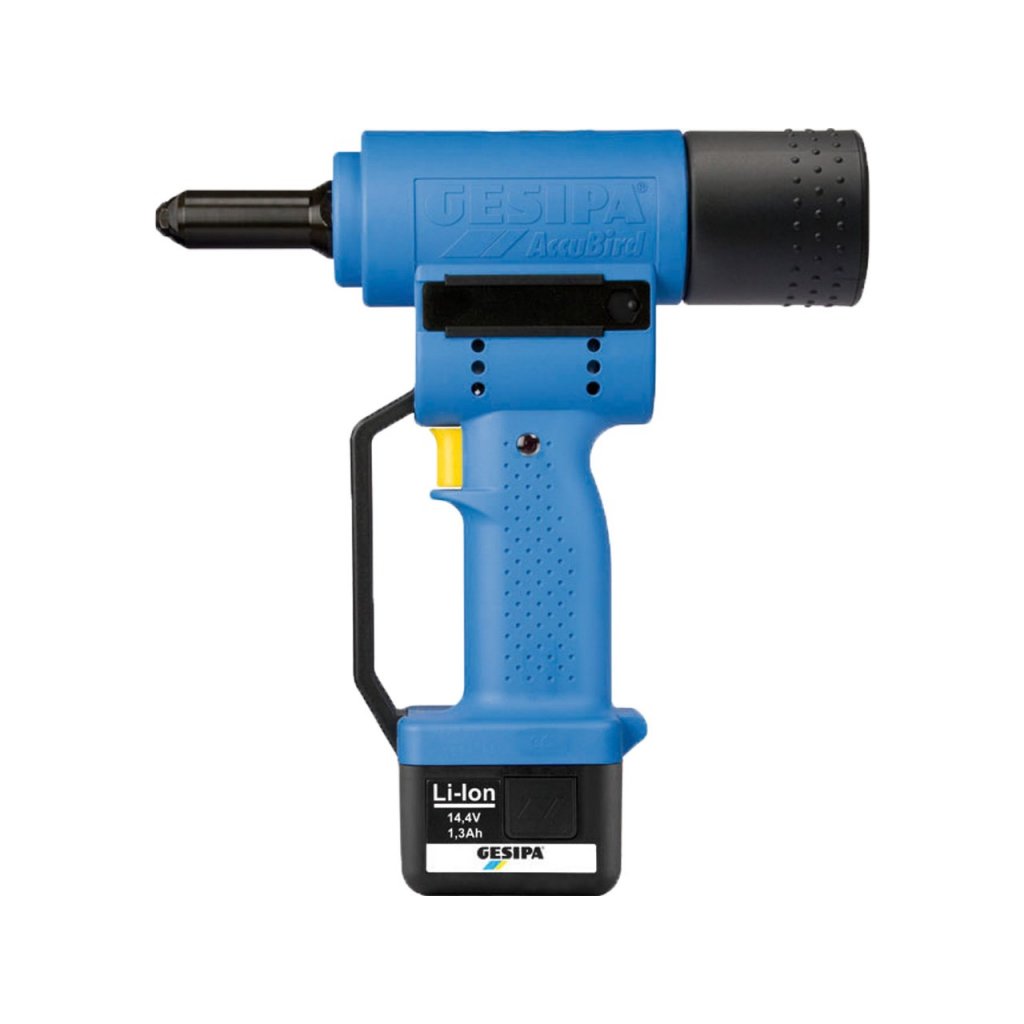

Gesipa Accubird Battery Riveter
2.4mm - 6.0mm

Model Number Accubird   Part Number 1437230

Gesipa Accubird | Battery Riveter

Benefits
  • Lightweight, Fast Operation
  • Portable
  • 2.4mm - 6.0mm Setting Capacity
  • 20.0mm Stroke
  • 10.000N Traction Power
  • Capable Of Setting Bulb-Tite Rivets
  • Battery Rivet Tool Capable Of Setting Structural Rivets
  • Nosepiece's Included
  • 2 Year Manufacturer Warranty (click to view)
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£POA

Enquire now

Gesipa Accubird Battery Riveter

GESIPA ACCUBIRD | BATTERY RIVETER

THIS TOOL HAS BEEN DISCONTINUED

NEW PRODUCT: Follow link: ACCUBIRD PRO NEW CAS EDITION

This tool is the new  version of the classic GESIPA Accubird battery tool.


Features

The Gesipa Accubird Battery Riveter is used to fasten blind rivet nuts in a wide range of materials including Aluminium, Steel & Stainless Steel.

This Gesipa Accubird does not come in a carry case.

This Accubird is capable of setting Bulbtite Rivets. These nosepieces are not supplied with the tool but are avaliable upon request.



Do you require a tool repair / service? Click Here!



Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm
5.0mm
6.0mm
6.4mm

Please Note: In order to set 4.8mm & 5.0mm Stainless Steel rivets you may need to purchase an additional nosepiece depending on your fastener.

Setting Capacity (Bulb-Tite Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
4.0mm
5.2mm
6.3mm
7.7mm

Setting Capacity (Structural Rivets)

Rivet TypeMega Grip | Monobolt | FARBOLTNose Piece Included
4.8mm
6.4mm
Rivet Type       G-Bulb | Avinox | TAMP          Nose Piece Included
4.8mm
6.4mm

Gesipa Accubird Battery Riveter

GESIPA®, which invented battery-powered blind riveting technology, has been producing the Bird series for over twenty years now. On the 25th anniversary of the AccuBird® the Bird series has been technically modernised and visually upgraded. The following modernisations have been implemented on the AccuBird®, PowerBird® and PowerBird® Solar:

  • New battery management ensuring the longer-life battery is always ready
  • Shorter pulling process with the new additional auto-reverse function. This reduces wear and increases the battery life.

AccuBird® – Production

  • Developed and produced in Germany since 1992 by the inventor of the battery blind rivet setting tool

Reliability

  • Electronic control
  • No mechanical switching components
  • Electronic temperature and overload protection
  • High reliability through low loss power transmission via a highly efficient ball screw drive

Freedom

  • Cable free tool for flexible operation in installation jobs and industry production

Auto-reverse function

  • Immediately after mandrel break-off, this additional operating mode stops the pulling process and moves the jaw assembly back into the initial position. This reduces wear, saves time and energy while making sure the tool is immediately ready for use.

High performance

  • 10,000 N setting force
  • High pulling force for safe setting of blind rivets up to 5 mm diameter in all materials
  • High yield per battery charge
  • Large 20 mm stroke

Versatility

  • Blind rivets from Ø 2.4 mm aluminium, up to Ø 5 mm all materials and blind rivets up to Ø 6 mm aluminium. BULB-TITE® blind rivets up to Ø 6.3 mm aluminium and steel.

High speed

  • High speed of operation through automatic resetting of the jaw mechanism immediately after each setting process

With Li-Ion energy

  • Choice of 1.3 Ah and 2.6 Ah Li-Ion batteries
  • Even greater production rate per battery charge thanks to the new battery management system


SpecificationGesipa Accubird
Brand Gesipa
Model Accubird
Part Number 1437230
Type Battery Riveter
Setting Capacity 2.4mm - 6.0mm
Contents Gesipa Accubird Battery Riveter
Weight 2.0kg
Stroke 20mm
Drive DC Motor
Traction Power 10.000 N
Part Number Product Title Price
1434952 1434952 | Item 15
Plastic Tube
Gesipa Accubird Part
Battery Riveter Spare Parts | 143 4952 | 725 1521 | 7251521

£POA

Enquire now
1434953 1434953 | Item 31 Protection Bracket Gesipa Accubird Battery Riveter Spare Parts | 143 4953 | 725 1540 | 725 1540

£POA

Enquire now
1434955 1434955 | Item 1
17/24 Nosepiece
Gesipa Accubird Part
Battery Riveter Spare Parts | 143 4955 | 7251583 | 725 1583 | 3.0mm | 3.2mm | 4.0mm

£POA

Enquire now
1434956 1434956 | Item 2
Tool Head
Gesipa Accubird Battery Riveter Spare Parts | 143 4956 | 7251591 | 725 1591

£POA

Enquire now
1434957 1434957 | Item 8
Adapter
Gesipa Accubird Part
Battery Riveter Spare Parts | 143 4957 | 725 1605 | 7251605

£POA

Enquire now
1434958 1434958 | Item 4
Standard Jaw Set
Gesipa Accubird Part
7251613 | Battery Riveter Spare Parts | 143 4958 | 725 1613 | Jaws

£POA

Enquire now
1434959 1434959 | Item 5
Standard Jaw Pusher
Gesipa Accubird Part
Battery Riveter Spare Parts | 143 4959 | 7251621 | 725 1621

£POA

Enquire now
1434966 1434966 | Item 7
Wiper
Gesipa Accubird Battery Riveter Spare Parts | 143 4966 | 7251745 | 725 1745

£POA

Enquire now
1434967 1434967 | Item 12
Stop Disc
Gesipa Accubird Battery Riveter Spare Parts | 143 4967 | 7251753 | 725 1753

£POA

Enquire now
1434973 1434973 | Item 1
17/27 Nosepiece
Gesipa Accubird Part
Battery Riveter Spare Parts | 143 4973 | 7252040 | 725 2040 | 4.0mm

£POA

Enquire now
1434974 1434974 | Item 1
17/29 Nosepiece
Gesipa Accubird Part
Battery Riveter Spare Parts | 143 4974 | 7252059 | 725 2059 | 4.0mm | 4.8mm | 5.0mm

£POA

Enquire now
1434975 1434975 | Item 1
17/32 Nosepiece
Gesipa Accubird Battery Riveter Spare Parts | 143 4975 | 7252067 | 725 2067 | 4.8mm | 5.0mm

£POA

Enquire now
1434976 1434976 | Item 1
17/18 Nosepiece
Gesipa Accubird Part
Battery Riveter Spare Parts | 143 4976 | 7252075 | 725 2075 | 2.4mm | 3.2mm

£POA

Enquire now
1434978 1434978 | Item 29
Magazine Insert
Gesipa Accubird Battery Riveter Spare Parts | 143 4978 | 7252091 | 725 2091

£POA

Enquire now
1434985 1434985 | Item 1
17/26 Bulb-Tite Nosepiece Gesipa Accubird Battery Riveter Spare Parts | 143 4985 | 7252202 | 725 2202 | 4.0mm

£POA

Enquire now
1434986 1434986 | Item 1
17/32 Bulb-Tight Nosepiece Gesipa Accubird Battery Riveter Spare Parts | 143 4986 | 7252210 | 725 2210 | 5.2mm

£POA

Enquire now
1434988 1434988 | Item 1 17/42 Bulb-Tite Nosepiece Gesipa Accubird Battery Riveter Spare Parts | 143 4988 | 7252229 | 725 2229 | 6.3mm

£POA

Enquire now
1434992 1434992 | Item 5
Bulb-Tight Jaw Pusher Gesipa Accubird Battery Riveter Spare Parts | 143 4992 | 7252245 | 725 2245

£POA

Enquire now
1435016 1435016 | Item 28
Nosepiece Magazine
Gesipa Accubird Battery Riveter Spare Parts | 143 5016 | 7255023 | 725 5023

£POA

Enquire now
1435017 1435017 | Item 51
Tool Hanger
Gesipa Accubird Part
Tool

£POA

Enquire now
1435027 1435027 | Item 10
Bearing Complete
Gesipa Accubird Battery Riveter Spare Parts | 143 5027 | 7259185 | 725 9185

£POA

Enquire now
1435028 1435028 | Item 13
Pinion Shaft
Gesipa Accubird Battery Riveter Spare Parts Complete | 143 5028 | 7259193 | 725 9193

£POA

Enquire now
1435030 1435030 | Item 47
Motor Complete
Gesipa Accubird Part
Tool

£POA

Enquire now
1435031 1435031 | Item 19
Magnetic Holder
Gesipa Accubird Battery Riveter Spare Parts Complete | 143 5031 | 7259266 | 725 9266

£POA

Enquire now
1435032 1435032 | Item 32
Collector Bottle
Gesipa Accubird Battery Riveter Spare Parts Spent Mandrel Container Complete | 143 5032 | 7259282 | 725 9282

£POA

Enquire now
1435033 1435033
Complete Bulb-TiteNose Kit Gesipa Accubird Part Complete Changeover Set For Bulb-Tight | Battery Riveter Spare Parts | 143 5033 | 7259290 | 725 9290

£POA

Enquire now
1435034 1435034 | Item 33
Extension
Gesipa Accubird Battery Riveter Spare Parts | 143 5034 | 7259328 | 725 9328

£POA

Enquire now
1445314 1445314 | Item 6
Compression Spring
Gesipa Accubird Part
Battery Riveter Jaw Pusher Spring Spare Parts | 144 5314 | 7179693 | 717 9693

£POA

Enquire now
1445760 1445760 | Item 30
Key
Gesipa Accubird Battery Riveter Spare Parts | 144 5760 | 7251834 | 725 1834

£POA

Enquire now
1445763 1445763 | Item 18 Metal Bushing Gesipa Accubird Battery Riveter Spare Parts | 144 5763 | 7251893 | 725 1893

£POA

Enquire now
1445768 1445768 | Item 9
Allen Screw
Gesipa Accubird Battery Riveter Spare Parts | 144 5768 | 7251982 | 725 1982

£POA

Enquire now
1445769 1445769 | Item 20
Mag Holder Screw
Gesipa Accubird Magnetic Battery Riveter Spare Parts | 144 5769 | 7251990 | 725 1990

£POA

Enquire now
1445770 1445770 | Item 43
Spring Washer
Gesipa Accubird Part
Tool

£POA

Enquire now
1445772 1445772 | Item 25 Housing Screw Long Gesipa Accubird Battery Riveter Spare Parts | 144 5772 | 7252024 | 725 2024

£POA

Enquire now
1445773 1445773 | Item 24 Housing Screw Short Gesipa Accubird Battery Riveter Spare Parts | 144 5773 | 7252032 | 725 2032

£POA

Enquire now
1445774 1445774 | Item 22
Silicone Hose
Gesipa Accubird Battery Riveter Spare Parts | 144 5774 | 7255066 | 725 5066

£POA

Enquire now
1457361 1457361 | Item 14
Drive Shaft Complete
Gesipa Accubird Part
Battery Riveter Spare Parts | 145 7361 | 7259134 | 725 9134

£POA

Enquire now
1457363 1457363 | Item 11
Ballscrew Drive
Gesipa Accubird Part
Mounted | Battery Riveter Spare Parts | 145 7363 | 7259142 | 725 9142

£POA

Enquire now
1462906 1462906 | Gesipa Switch Accubird

£POA

Enquire now
1462907 1462907
Lubrication Grease
Gesipa Accubird Battery Riveter Spare Parts Safety | 146 2907 | 7252555 | 725 2555

£POA

Enquire now
