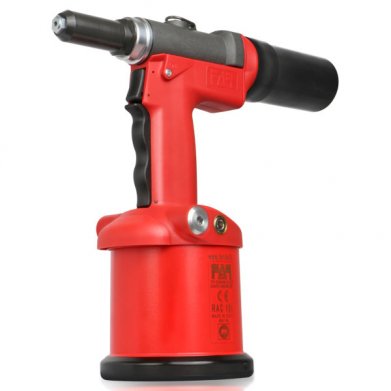

FAR RAC181 Air Riveter
2.4mm - 6.0mm

Model Number RAC181   Part Number 700181

FAR RAC181 | Air Rivet Tool

Our extensive range of FAR Air Rivet Tools Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Suction
  • Tool Features Triggered Suction
  • Stroke 21.0mm
  • Traction Power 10.526 kN
  • 2.4mm - 6.0mm Setting Capacity
  • Nose Pieces Included
  • Capable Of Setting Structural Rivets
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Be the first to review this item

This product is currently in stock

£339.00 ex. vat

£406.80 inc. vat

Buy Now

FAR RAC181 Air Rivet Tool





Features

The FAR RAC181 Riveter is a hydropneumatic tool perfect for use with blind rivets from 2.4mm up to 5.0mm in steel and stainless steel and up to 6.0mm in aluminium. It will also set 3/16" FarBolt, Magna-Lok and Monobolt applications. All standard POP rivet nosepieces sold complete with tool.

The FAR RAC181 is a Heavy Duty Tool which is perfect for high volume production due to its light weight structure and operator friendly design.

Designed with a vacuum and auto ejection system similar to the FAR RAC170 this ensures the FAR RAC181 will retain the rivet in the nozzle for easier application.

Air inlets can be set up on either side of the tool

The simple operation of this tool makes for an excellent choice in any high volume production environment.

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Suction
  • Tool Features Triggered Suction
  • Stroke 21.0mm
  • Traction Power 10.526 kN
  • 2.4mm - 6.0mm Setting Capacity
  • Nose Pieces Included
  • Capable Of Setting Structural Rivets
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool

Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm
5.0mm
6.0mm
6.4mm
7.8mm
8.0mm
10.0mm


Setting Capacity (Structural Rivets)

Rivet TypeMonobolt | FARBOLT | Mega GripNose Piece Included
4.8mm
6.4mm
10.0mm
Rivet Type       Hemlok | Tamp | G-Bulb          Nose Piece Included
3.2mm
4.0mm
4.8mm
6.0mm
6.4mm

Whats New

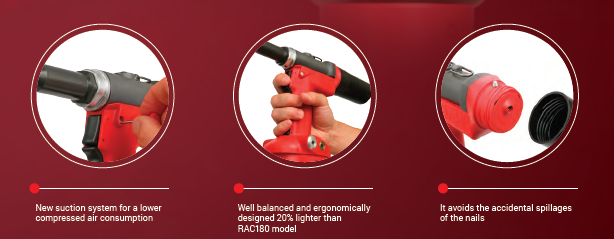

The FAR RAC 181 is the new replacement tool of the previous highly successful FAR RAC 180 air rivet tool & is avalible now at Part-on.

  • More Lightweight & Operater Freindly
  • New Suction System for lower compressed air consumption
  • New Modified Collector System





FAR RAC181 Air Rivet Tool

SpecificationFAR RAC181
Brand FAR
Model RAC181
Part Number 700181
Type Air Rivet Tool
Operating Mode Compressed Air
Setting Capacity 2.4mm - 6.0mm
Stroke 21.0mm
Traction Power 10.526 kN
Suction Automatic & Triggered
Sets Structural Rivets Yes
Operating Air Pressure 6 BAR
Weight 1.60kg
Warranty One Year
Contents FAR RAC181 Tool | Supplied With Nose Pieces

PART-ON SAYS:

" FAR RAC181 Rivet Tool : Robust, Comfortable and Speedy. Best of all Reduced in price"

Need to set up your tool ? We supply a range of Air Fittings, Hoses, Hose Barbs & Couplings. Avalable now in our Pneumatics Section


Why Should I Choose A Riveter With Suction?

It is beneficial to choose a riveter with suction as when the rivet is set, The vacuum suction system pulls the pin through to the collector bottle system.

This saves the operator time when setting several rivets, It also reduces the chance of the tool becoming jammed.

Suction is also beneficial if the operator is setting a rivet into an application at an obscure/awkward place/angle as it keeps the rivet in the head until it has been set.

Tools can offer two types of suction:

  1. Automatic Suction -  This is a feature that can be switched on by the operator, The vacuum suction system will automatically collect the rivet pins.
  2. Triggered Suction - This feature the operator can activate the vacuum suction system by pressing the tool trigger.

The RAC181 offers both of these features

Part Number Product Title Price
710555 710555 - FAR RAC181 Washer 400-004-4490 | Item 23 £1.73 ex. vat Add to cart
711067 711067 - FAR RAC181 Connector 6520 8 - 1/4" | Item 45 £7.45 ex. vat Add to cart
711357 711357 - FAR RAC181 Wrench Kit | Item 33 £3.54 ex. vat Add to cart
711706 711706 - FAR RAC181 Nails Container | Item 31 £2.98 ex. vat Add to cart
711729 711729 - FAR RAC181 Gasket O Ring 2-024 | Item 20 £1.05 ex. vat Add to cart
713390 713390 - FAR RAC181 Gasket Oring 2-007 | Item 7 £0.99 ex. vat Add to cart
71345272 71345272 - FAR RAC181 Valve Cap | Item 3 £8.22 ex. vat Add to cart
71346060 71346060 - FAR RAC181 Sleeve Carrying Nozzle | Item 25 £21.75 ex. vat Add to cart
71346084 71346084 - FAR RAC181 Rubber Protective Base | Item 44 £5.95 ex. vat Add to cart
71346085 71346085 - FAR RAC181 Metal Plate | Item 41 £13.89 ex. vat Add to cart
71346094 71346094 - FAR RAC181 Tube 8 x 7 | Item 42 £1.80 ex. vat Add to cart
71346096 71346096 - FAR RAC181 Rod | Item 35 £6.94 ex. vat Add to cart
71346098 71346098 - FAR RAC181 Flange | Item 34 £8.23 ex. vat Add to cart
71346099 71346099 - FAR RAC181 Coil | Item 2 £8.00 ex. vat Add to cart
71346101 71346101 - FAR RAC181 Front Connector | Item 17 £26.76 ex. vat Add to cart
71346103 71346103 - FAR RAC181 Hydraulic Piston | Item 11 £49.71 ex. vat Add to cart
71346106 71346106 - FAR RAC181 Ring Nut | Item 38 £8.93 ex. vat Add to cart
71346107 71346107 - FAR RAC181 Balancer Hook | Item 47 £2.68 ex. vat Add to cart
71346168 71346168 - FAR RAC181 Baffle | Item 49 £2.06 ex. vat Add to cart
71346171 71346171 - FAR RAC181 Silencer | Item 36 £3.15 ex. vat Add to cart
71C00297 71C00297 - FAR RAC181 Gasket O Ring 6-700 | Item 37 £5.35 ex. vat Add to cart
71C01022 71C01022 - FAR RAC181 Cap 1/4" | Item 46 £1.59 ex. vat Add to cart
71C01278 71C01278 - FAR RAC181 Screw TBCE M6 X 6 ISO 7380 | Item 24 £1.00 ex. vat Add to cart
71C01296 71C01296 - FAR RAC181 Seegar Ring 100 UNI 7437 | Item 40 £2.98 ex. vat Add to cart
71C01297 71C01297 - FAR RAC181 Gasket O Ring 2-043 | Item 39 £1.18 ex. vat Add to cart
72000143 72000143 - FAR RAC181 Hydraulic Cylinder | Item 9 £102.00 ex. vat Add to cart
72000144 72000144 - FAR RAC181 Push Button Unit | Item 5 £12.50 ex. vat Add to cart
72000146 72000146 - FAR RAC181 Handgrip | Item 1 £36.00 ex. vat Add to cart
72000154 72000154 - FAR RAC181 Pneumatic Cylinder | Item 8 £75.00 ex. vat Add to cart
72A00043 72A00043 - FAR RAC181 Push Button | Item 6 £3.73 ex. vat Add to cart
74000030 74000030 - FAR RAC181 Pneumatic Piston Kit | Kit B £23.72 ex. vat Add to cart
74000078 74000078 - FAR RAC181 Dampener Kit | Kit F £4.96 ex. vat Add to cart
74000079 74000079 - FAR RAC181 Lever Kit | Kit H £5.94 ex. vat Add to cart
74000080 74000080 - FAR RAC181 Coil Kit | Kit I £16.82 ex. vat Add to cart
74000088 74000088 - FAR RAC181 Cone Holder Kit | Kit D £42.40 ex. vat Add to cart
74000096 74000096 - FAR RAC181 Gaskets Kit | Kit Q £15.44 ex. vat Add to cart
