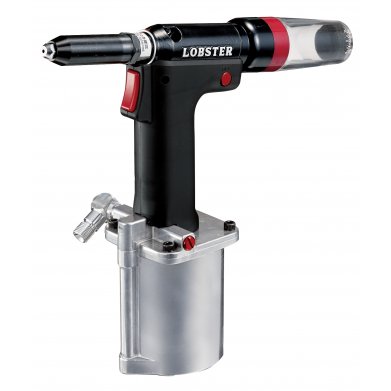

LOBSTER R1A1 Rivet Air Tool

The Lobster R1A1 rivet tool has an improved air circuitry design, consumes 30% less air than previous generation tools. This reduces compressor costs and is environmentally friendly.

The R1A1 riveters are made to provide value and performance in a lightweight, powerful package. The R1A1 features a speedy rivet setting cycle and longer stroke for improved productivity.

 Lobster's Soft-Set® shockless technology absorbs jarring vibrations, which encourages employee safety and reduced the risk of cumulative trauma disorders (CTD’s).

Lobster R1A1 is the latest generation of pneumatic-hydraulic rivet tools from this established brand.

Benefits:

• Sets from 3/32" (2.4mm) up to 3/16" (4.8mm) standard rivets in all materials
• Ultra-Jaws as standard for longer life
• Noise-reducing muffler
• Lightweight, with excellent power-to-weight ratio -10KN traction power.
• Soft-Set shockless technology offers ergonomically correct action to reduce the risk of cumulative trauma disorders
• Narrow nose assembly of 22.0mm diameter for tight access applications
• Wear-resistant surfaces extend tool life
• Swivel air connection with air inlets on both the left and right side allowing for greater flexibility, and operator productivity.
• Long stroke 19.0mm

Do you require a tool repair / service? Click Here!

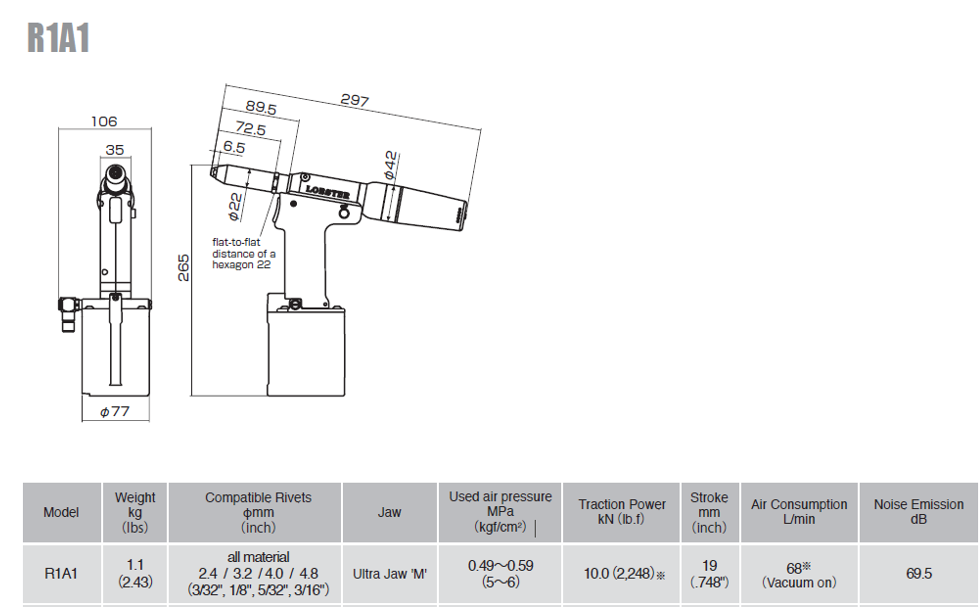

Features of the Lobster R1A1 -

·         Weight: 1.1kg.

·         Materials: Steel, Stainless Steel and Aluminium Rivets.

·         Sizes: Non Structural blind Rivets up to 4.8mm.

·         Use Range: 2.4mm - 4.8mm

·         Traction Power: 10.0kN (2,248lb.f)

·         Operating Air Pressure: 0.49 - 0.59 MPa (5-6 kgf/cm2）

·         Stroke: 19mm (.748")

·         Air Consumption: 68 L/min (vacuum on)

·         Noise Emission: 69.5 dB
