Safety Catch 10mm Slot Bosch Rexroth 3842 546 519

Model Number 3842 546 519   Part Number 3842546519

Safety Catch

Our extensive range of Counterbalances' Genuine Bosch Rexroth Parts Subject to Stock & Availability | Please Contact Us For Delivery Estimate.

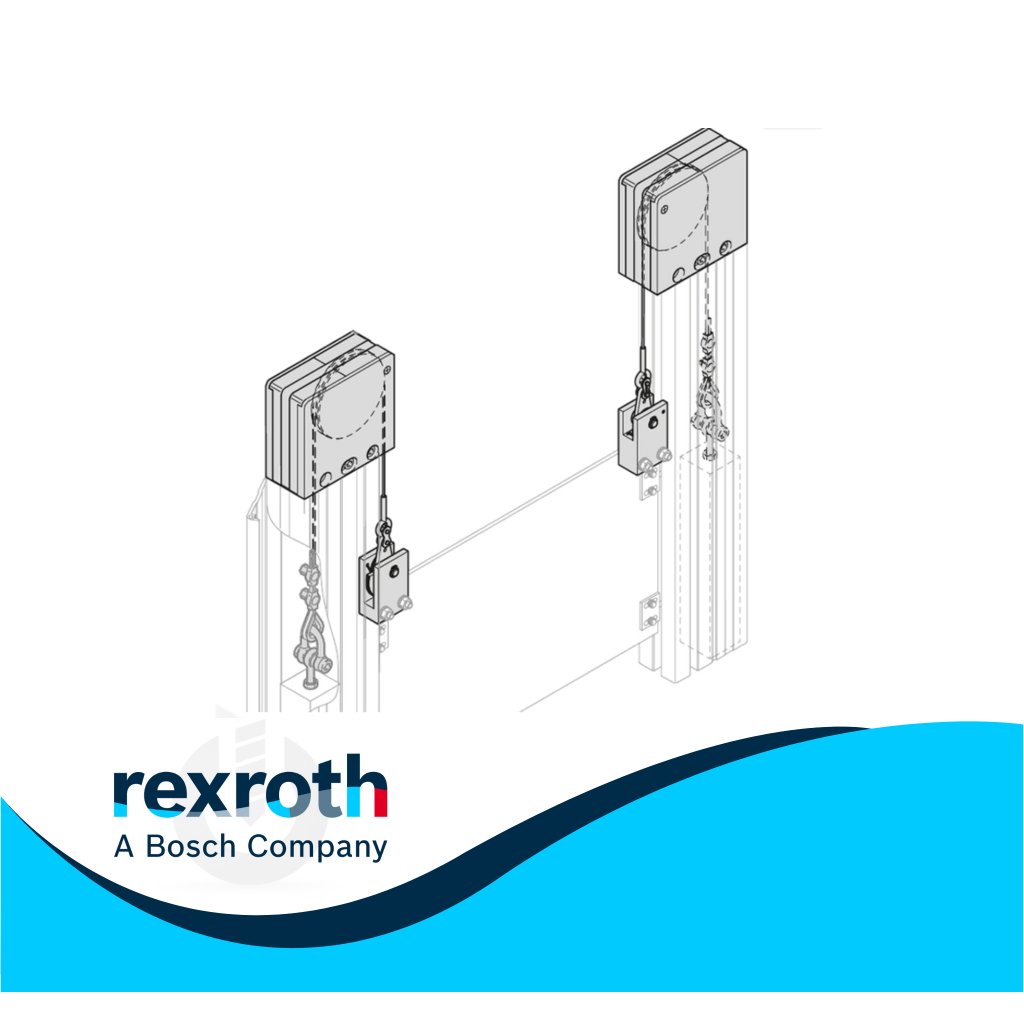

  • For Lifting Doors Comprising A Deflection Pulley and Control Cable
  • Counterweight Individually Adjustable and Preferably Guided in a Cable Duct
  • Length of cable can be adjusted
  • Genuine Bosch Rexroth

  • Call us today on 0121 439 7152 for best price and delivery!

    Be the first to review this item

    was £87.25

    £78.53 ex. vat

    £94.24 inc. vat

Buy Now

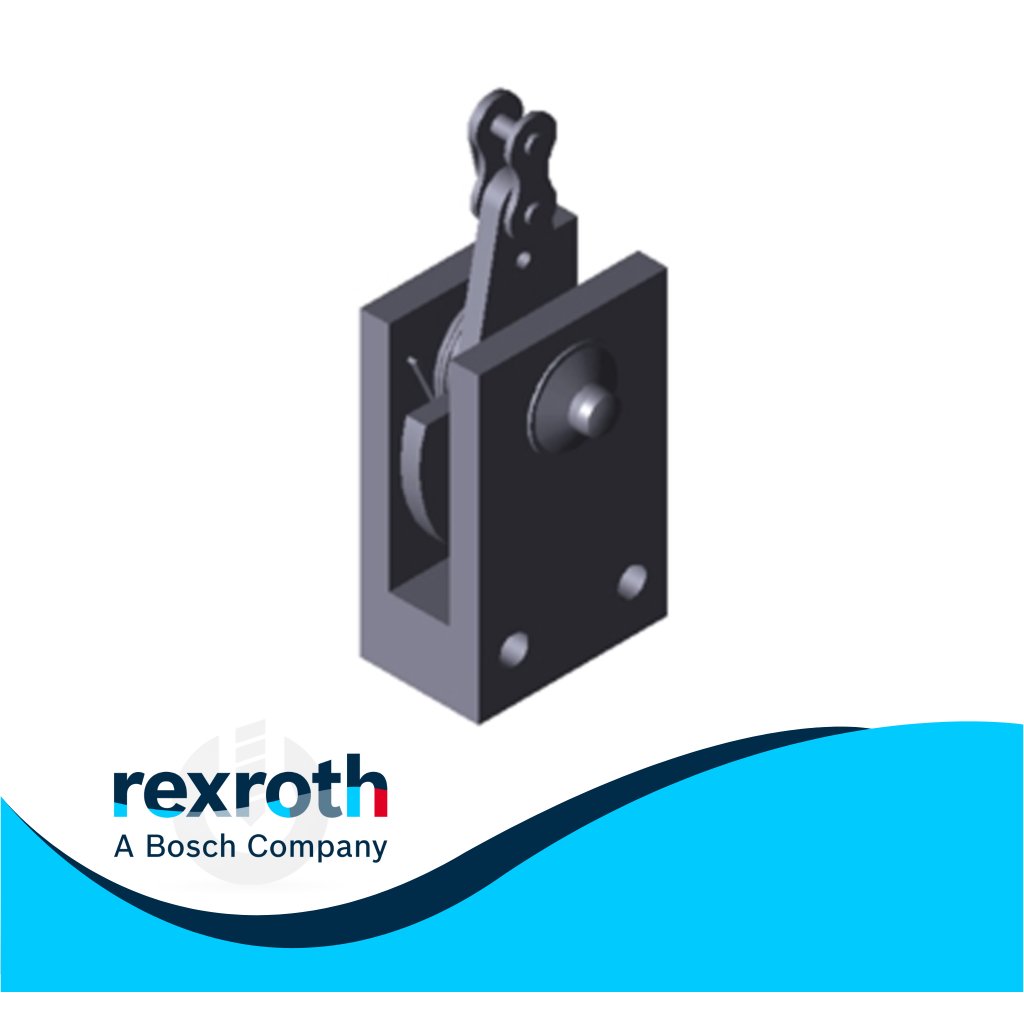

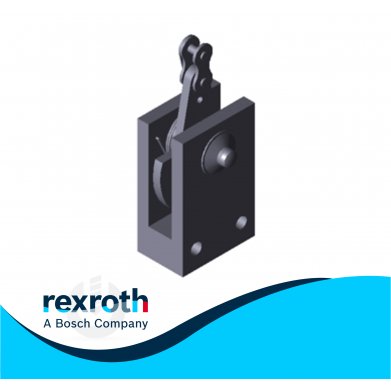

Bosch Rexroth Safety Catch

See more information in the "Manual" section.


  • Service life: 50,000 actuations
  • Profile finishes:
    – M12 for fastening the deflection pulley
  • Fit lifting doors with a back-up fall arrestor in accordance with the Machinery Directive 2006/42/EC
  • Safety catch
  • The safety catch in conjunction with the other components prevents a lifting door from falling if a cable breaks
  • If a cable breaks, the revolving part of the safety catch jams against a counterbearing and is wedged in position in the guide profile
  • Gap dimension between safety catch body and lateral guide profile: 6 mm
  • One safety catch is required for each cable:
    – max. load per safety catch: 250 N
    – min. load per safety catch: 25 N
  • The counterbearing (e.g. slider 3 842 530 303should be mounted under the safety catch and as close as possible to it
  • It can also be mounted without a frame on surface elements which have adequate transverse rigidity
  • Before installation and use please read the data sheet containing notes on use which is enclosed with the product


Technical DataBosch Rexroth Safety Catch
Brand Bosch Rexroth
Part number 3842 546 519
Minimum Order Quantity 1 // please enquire for special pricing if ordering large QTYs
Type Safety Catch

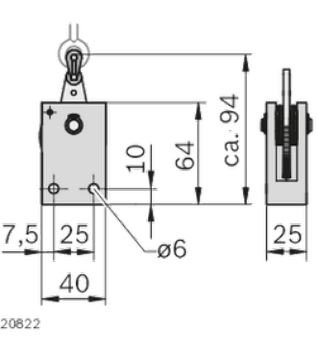

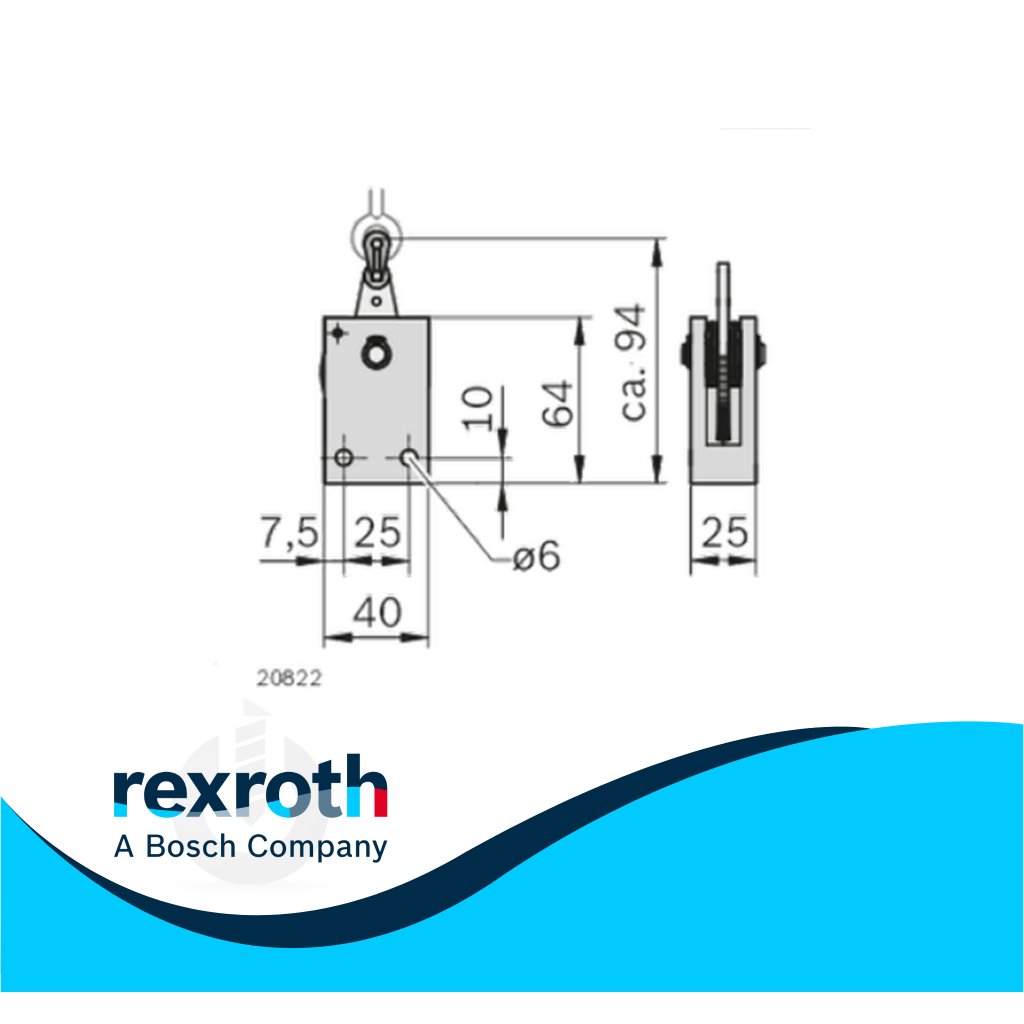

Size Dimensions available in the "Manual" Section
Slot Size 10mm
Description Genuine Bosch Rexroth Safety Catch 10mm Slot
Material Housing: aluminum
Rotating disk: steel, rust-free
Bolt: steel, hardened
Chain lock: steel, nickel-plated
Spacer disk: POM


See more information in the "Manual" section.
