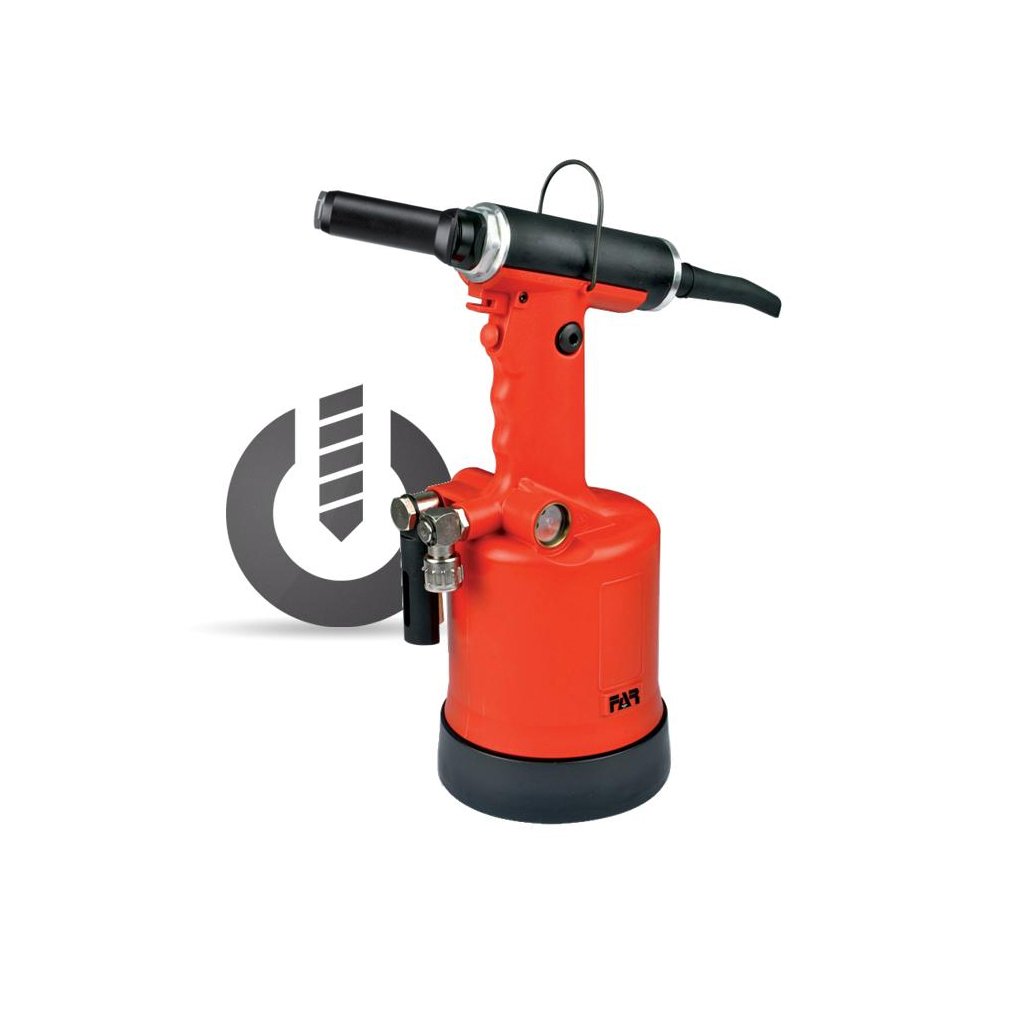

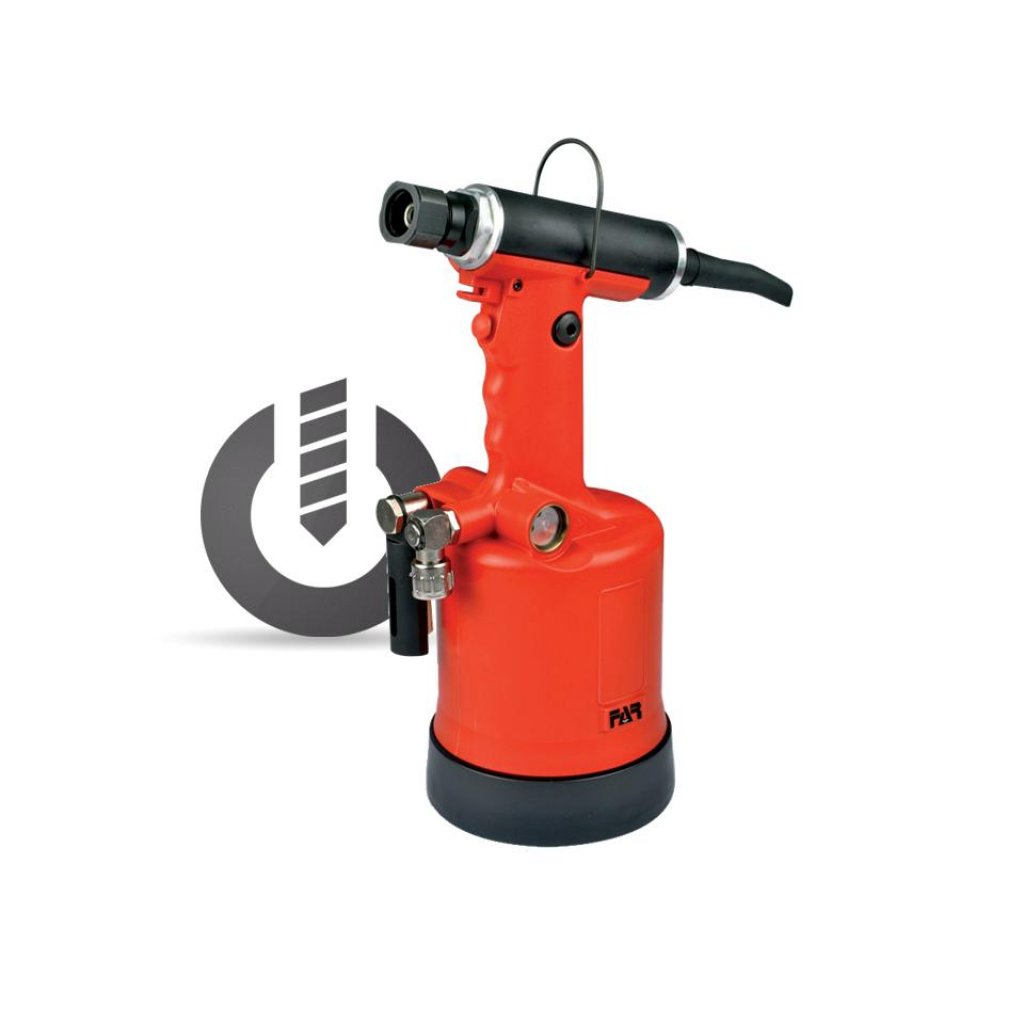

FAR FHU05 Structural Air Riveter
For Huck C6L

Model Number FHU05   Part Number FHU05 | C6L

FAR FHU05 | Air Rivet Tool

Our extensive range of Structural Air Riveters Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • 19.5mm Stroke
  • 22.555 N Traction Power
  • Capable Of Setting Huck Lock Bolt Fasteners
  • Nosepiece's Included
  • 4.8mm & 6.4mm C6L Set Up Available "Please Choose"
Please refer to the Details & Tech Spec tab below for more information.

Be the first to review this item

£882.90 ex. vat

£1059.48 inc. vat

Buy Now

FAR FHU05 Structural Air Riveter For Huck C6L





Features

The FAR FHU05 Structural Rivet Tool Is a Heavy Duty Tool, Which is capable of setting a variety and various types of sturctural rivets once being equipped with the relivent heads/nose assemblies. This then enables the tool to become capable of setting and installing the following: LockBolts ®, Pin & Collar ®,  Magna-Lok ®, Monobolt ® , Ultra-Grip ® , Avdelok ® , Magna-Grip ® Hucktainer ®, Max Lok ®, Structural ®, Orlock Rivets ®, Hemlock ®, Magna Bulb ®.

FAR FHU05 Structural Rivet Nut Tool To suit 4.8mm - 7.8mm Structural/ Pin & Collar Rivets

With this FAR FHU05 we provide you with a huck nose assembly capable of setting huck C6L pin & collar lock bolt fasteners.

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • 19.5mm Stroke
  • 22.555 N Traction Power
  • Capable Of Setting Huck Lock Bolt Fasteners
  • Nosepiece's Included
  • 4.8mm & 6.4mm C6L Set Up Available Please Choose



Do you require a tool repair / service? Click Here!



Setting Capacity (Lock Bolts)

Lock Bolt TypeC6L (Please Choose)
4.8mm
6.4mm


What Is A Huck C6L ?



FAR FHU05 Structural Air Riveter For Huck C6L

SpecificationFAR FHU05
Brand FAR
Model FHU05
Part Number FHU05 | C6L
Type Structural Air Riveter
Setting Capacity 4.8mm Or 6.4mm (Please Choose)
Contents FAR FHU05 Air Riveter & Chosen Nose Assembly
Weight 2.65kg
Stroke 19.5mm
Traction Power  22.555 N at 6 BAR
Working Pressure  6 BAR
Air Consumption Per Cycle  10.9 Lt
Min Int Diam Of The Compressed Air Feeding Hose  8mm

Some Of The Sizes This Riveter Can Set:

  • Pin & Collar, Avdelok and similar -  4.8mm to 6.4mm
  • Magna-Grip, Maxlok and similar -  4.8mm to 6.4mm
  • Structural Orlock Rivets -  7.8mm
  • Hemlok, Magna Bulb -  6.4mm

Extra Optional Features

PCL, Schrader & CEJN Set Up's Available. (Please Choose)

We also have a Wide Range of Fasteners, Materials & Grip Ranges Available Click Here for more information.
