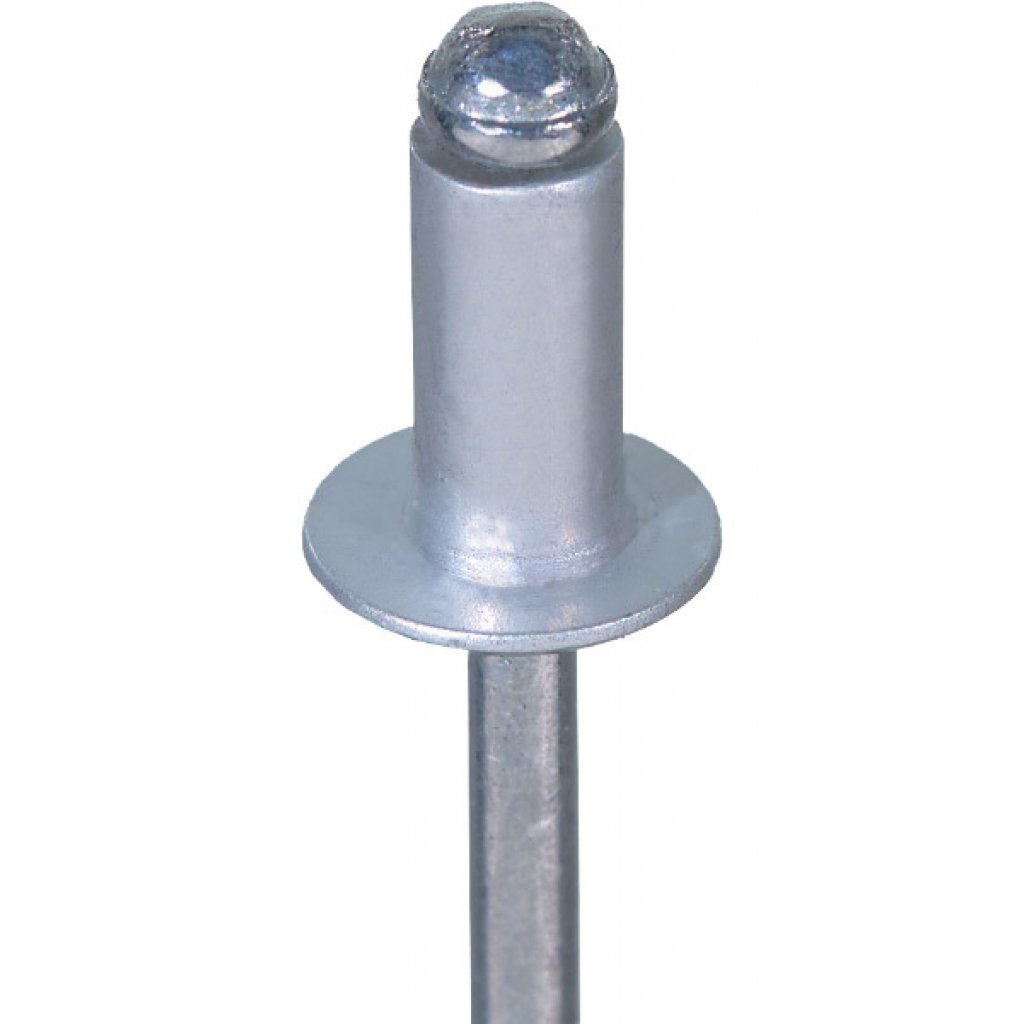

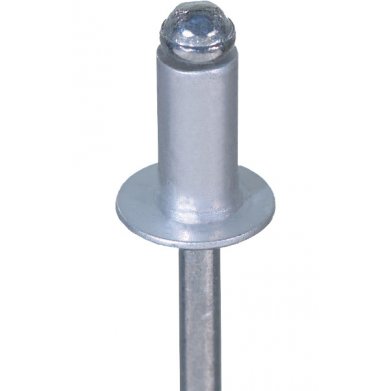

Our aluminium steel domed head rivets are available in a wide range of materials and head styles. Our range of aluminium steel domed head rivets are Suitable for applications with low load bearing requirements. They are designed for fastening in a fast and simple way especially when a high torque force is not needed.
|Diameter (d)||Length (L)||Flange Diameter (D)||Drill Size||Grip Range|
|4.8mm||6.0mm||9.5mm||4.9mm||1.0 - 3.0mm|
|4.8mm||8.0mm||9.5mm||4.9mm||3.0 - 4.5mm|
|4.8mm||10.0mm||9.5mm||4.9mm||4.5 - 6.0mm|
|4.8mm||12.0mm||9.5mm||4.9mm||6.0 - 8.0mm|
|4.8mm||14.0mm||9.5mm||4.9mm||8.0 - 10.0mm|
|4.8mm||16.0mm||9.5mm||4.9mm||10.0 - 12.0mm|
|4.8mm||18.0mm||9.5mm||4.9mm||12.0 - 14.0mm|
|4.8mm||20.0mm||9.5mm||4.9mm||14.0 - 16.0mm|
|4.8mm||22.0mm||9.5mm||4.9mm||16.0 - 18.0mm|
|4.8mm||25.0mm||9.5mm||4.9mm||18.0 - 21.0mm|
|4.8mm||28.0mm||9.5mm||4.9mm||21.0 - 23.5mm|
|4.8mm||30.0mm||9.5mm||4.9mm||23.5 - 25.0mm|
|4.8mm||35.0mm||9.5mm||4.9mm||25.0 - 30.0mm|
|4.8mm||40.0mm||9.5mm||4.9mm||30.0 - 35.0mm|
|4.8mm||45.0mm||9.5mm||4.9mm||35.0 - 40.0mm|
|4.8mm||50.0mm||9.5mm||4.9mm||40.0 - 45.0mm|
|Rivet Size||Rivet Type||Head Type||Body Material (C)||Mandrel Material (D)|
