FAR RAC180 2.4mm - 6.0mm Riveter

Model Number RAC180   Part Number 700180

FAR RAC180

Get The FAR RAC180 Legendary Air Rivet Tool While Stock's Last!

Benefits
  • Lightweight
  • Sold with all nose assemblies, rubber base support & a reprime and service kit
  • Setting capacity from 2.4mm - 4.8mm in all materials
  • Sets 6.0mm only in Aluminium
  • Quick & Simple to operate
  • Sets Structural Rivets
  • 1 year warranty

Be the first to review this item

£POA

FAR RAC180 | Rivet Air Tool

FAR RAC180 | AIR RIVETER

THIS TOOL HAS BEEN DISCONTINUED

NEW PRODUCT: Follow link: RAC181

This tool is the new  version of the classic FAR RAC180 rivet tool.







 Do you require a tool repair / service? Click Here!



See our FAR factory trained engineer's tooling certificates HERE.

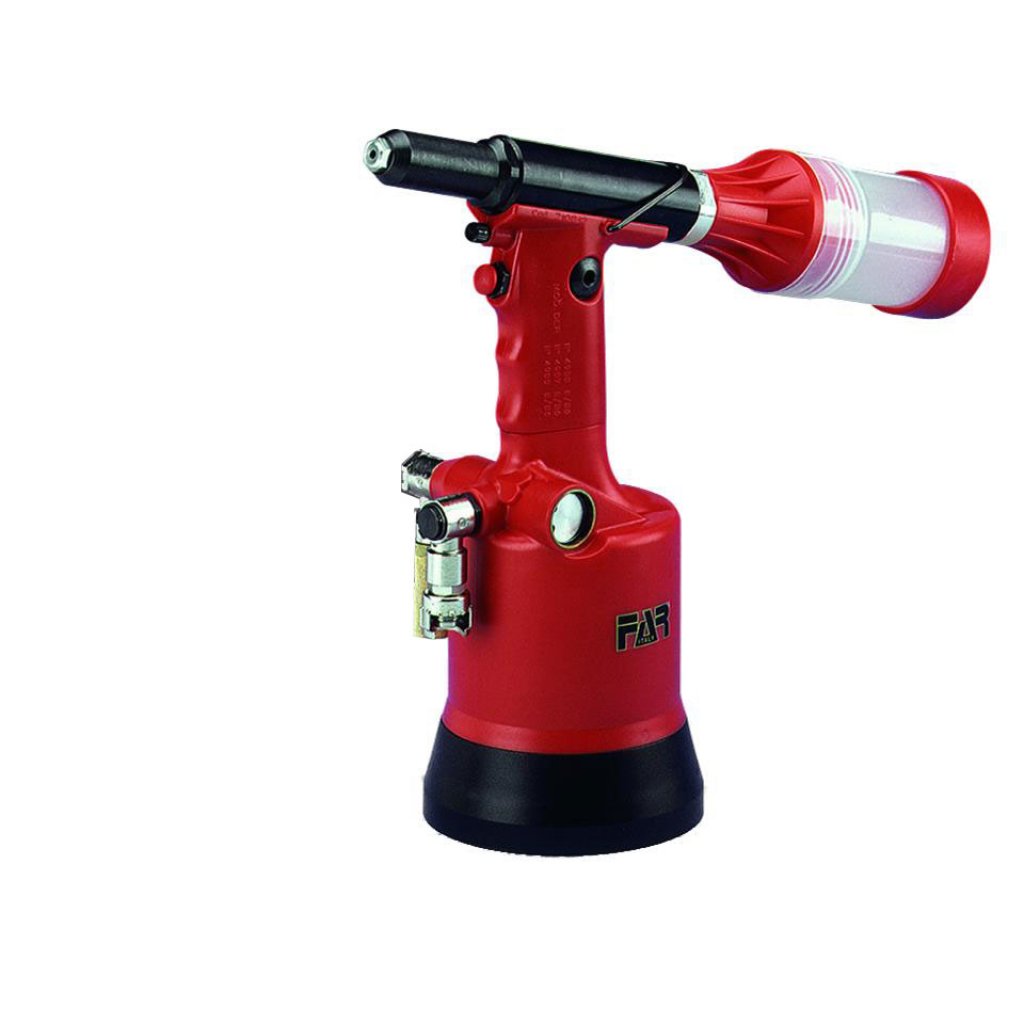

The FAR RAC 180 Riveter is a hydropneumatic tool perfect for use with blind rivets upto 4.8mm in steel and stainless steel and 6.0mm in aluminium.  It will also set 3/16" FarBolt, Magna-Lok and Monobolt applications.

The FAR RAC 180 is a Heavy Duty Tool which is perfect for high volume production due to its light weight structure and operator friendly design.

Designed with a vacuum and auto ejection system similar to the RAC 170 ensures the RAC 180 will retain the rivet in the nozzle for easier application.

The FAR RAC180 is supplied with 1 years warranty in our in-house tool repair centre.

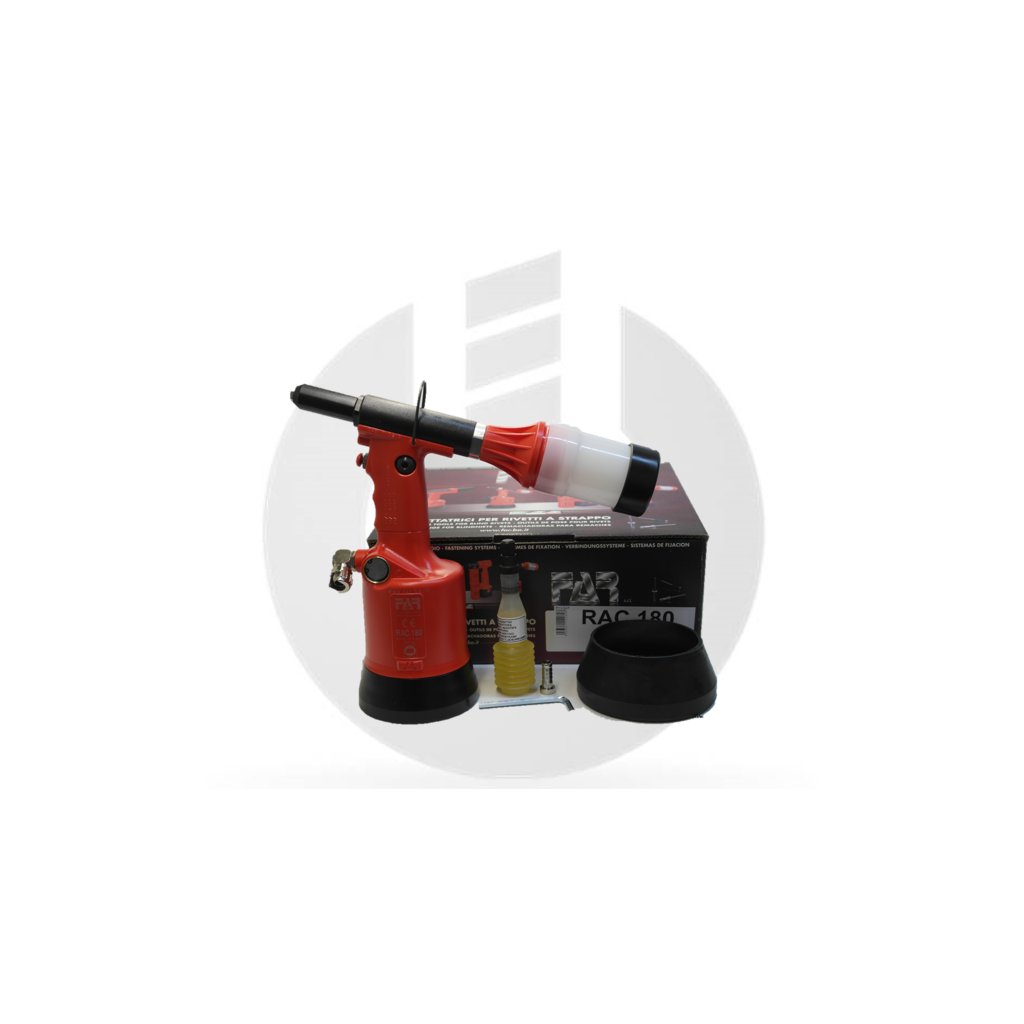

The Tool is sold with; all 2.4-4.8mm nose assemblies, a rubber support base and a reprime and service kit!



Setting Capacity

Rivet SizeAluminiumSteelStainless SteelNose Assemblies Included
2.4mm
3.2mm
4.0mm
4.8mm
6.0mm

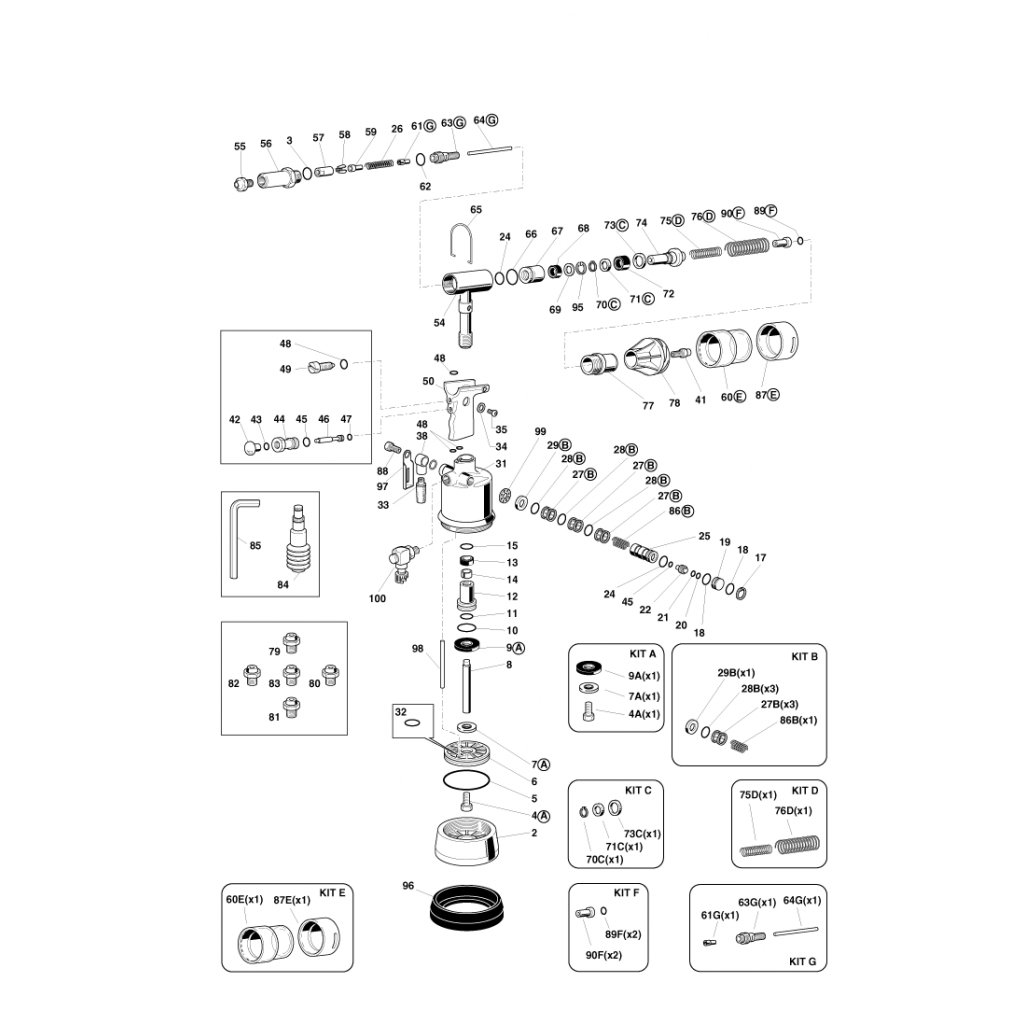

Part Number Product Title Price
710011 710011
Jaw Set
FAR RAC180 Part
Jaws Set rac180 rac181 710011

£POA

Enquire now
710102 710102
O Ring
FAR RAC180 Part
113D
rac 180

£POA

Enquire now
710258, 710258
O Ring
FAR RAC180 Part
5-612 rac 180

£POA

Enquire now
710300 710300
O Ring
FAR RAC180 Part
020 rac 180

£POA

Enquire now
710350. 710350
O Ring
FAR RAC180 Part
2-109
rac 180

£POA

Enquire now
710385 710385
O Ring
FAR RAC180 Part
006D
rac 180

£POA

Enquire now
710390 710390
Balsele Spacer
FAR RAC180 Part
rac 180

£POA

Enquire now
710402. 710402
Seeger Ring
FAR RAC180 Part
22
rac 180

£POA

Enquire now
710528. 710528
O Ring
FAR RAC180 Part
008D
rac 180

£POA

Enquire now
710577 710577
Seal
FAR RAC180 Part
rac 180

£POA

Enquire now
710816 710816 - FAR RAC180 Oil-Dynamic Cylinder | Item 54

£POA

Enquire now
710818 710818
Container Connector
FAR RAC180 Part
rac 180

£POA

Enquire now
710822. 710822
Valve Piston II
FAR RAC180 Part
rac 180

£POA

Enquire now
710824. 710824
Push Button
FAR RAC180 Part
rac 180

£POA

Enquire now
710831 710831
Tube
FAR RAC180 Part
rac 180

£POA

Enquire now
710838 710838
Output Connector
FAR RAC180 Part
rac 180

£POA

Enquire now
710839, 710839
Oil tank Plug
FAR RAC180 Part
rac180

£POA

Enquire now
710841. 710841 - FAR RAC180 Coil | Item 25

£POA

Enquire now
710842 710842
Suction Adjust Screw
FAR RAC180 Part
rac 180 Adjustment

£POA

Enquire now
710843 710843 - FAR RAC180 Sleeve Carrying Nozzle | Item 56

£POA

Enquire now
710847 710847
Valve Body
FAR RAC180 Part
rac 180

£POA

Enquire now
710848 710848
Valve Piston
FAR RAC180 Part
rac 180

£POA

Enquire now
710849 710849
Jaw Pusher
FAR RAC180 Part
rac 180

£POA

Enquire now
710850 710850
Plug Guide Spring
FAR RAC180 Part
rac 180

£POA

Enquire now
710853. 710853
Jaw Pusher Spring
FAR RAC180 Part
rac 180

£POA

Enquire now
710854. 710854
Balancer Hook
FAR RAC180 Part
rac 180

£POA

Enquire now
710855 710855
Sleeving Gasket
FAR RAC180 Part
rac 180

£POA

Enquire now
710856 710856 - FAR RAC180 Rod Guide Connector | Item 12

£POA

Enquire now
710859 710859
Cone Holder
FAR RAC180 Part
rac 180

£POA

Enquire now
710860 710860 - FAR RAC180 Rod | Item 8

£POA

Enquire now
710901 710901
Balsele Seal
FAR RAC180 Part
rac 180

£POA

Enquire now
710905. 710905
Seeger Ring
FAR RAC180 Part
rac 180

£POA

Enquire now
710906, 710906
Hermetic Washer
FAR RAC180 Part
rac 180

£POA

Enquire now
710908 710908
Washer
FAR RAC180 Part
rac 180

£POA

Enquire now
710909. 710909
Connector
FAR RAC180 Part
2023 rac 180

£POA

Enquire now
710914 710914
O Ring
FAR RAC180 Part
2-116 rac 180

£POA

Enquire now
710915 710915
O Ring
FAR RAC180 Part
2-124 rac 180

£POA

Enquire now
710916. 710916
O Ring
FAR RAC180 Part
2-15 rac 180

£POA

Enquire now
710917 710917
O Ring
FAR RAC180 Part
2-118 rac 180

£POA

Enquire now
710918, 710918
O Ring
FAR RAC180 Part
2-5 rac 180

£POA

Enquire now
710919, 710919
O Ring
FAR RAC180 Part
2-4 rac 180

£POA

Enquire now
710920 710920
O Ring
FAR RAC180 Part
2-337 rac 180

£POA

Enquire now
710922. 710922
O Ring
FAR RAC180 Part
018D rac 180

£POA

Enquire now
710931 710931
O Ring
FAR RAC180 Part
5-615 rac 180

£POA

Enquire now
711092, 711092
Key
FAR RAC180 Part
rac 180

£POA

Enquire now
711304 711304
Silencer
FAR RAC180 Part
rac 180

£POA

Enquire now
711305. 711305
Connector
FAR RAC180 Part
1631 rac 180

£POA

Enquire now
711736 711736 - FAR RAC180 Protection Bottom | Item 96

£POA

Enquire now
711827 711827
Seal
FAR RAC180 Part
rac 180

£POA

Enquire now
711974 711974
Seeger Ring
FAR RAC180 Part
JV22 rac 180

£POA

Enquire now
712117. 712117
Washer
FAR RAC180 Part
Stopping Spring
rac 180

£POA

Enquire now
712133 712133
Rotating Connector FAR RAC180 Part
Air rac 180

£POA

Enquire now
712162 712162
Silencer Protector
FAR RAC180 Part
rac 180

£POA

Enquire now
712268. 712268
Spring Guide Plug
FAR RAC180 Part
rac 180

£POA

Enquire now
712281 712281 - FAR RAC180 Piston | Item 74

£POA

Enquire now
712716 712716 - FAR RAC180 Body Cover | Item 2

£POA

Enquire now
71345507 71345507
High Performance Jaws FAR RAC180 Part
Jaw Set
rac 180

£POA

Enquire now
717001 717001
3.2mm Nosepiece
FAR RAC180 Part
Nozzle rac 180

£POA

Enquire now
717002 717002
4.0mm Nosepiece
FAR RAC180 Part
Nozzle rac 180

£POA

Enquire now
717003 717003
4.8 Ali Nosepiece
FAR RAC180 Part
Nozzle rac 180

£POA

Enquire now
717004. 717004
4.8mm Cu / Steel Nosepiece
FAR RAC180 Part
Nozzle rac 180

£POA

Enquire now
717005. 717005
6.0mm - 6.4mm Nosepiece FAR RAC180 Part
Nozzle rac 180

£POA

Enquire now
717006 717006
2.4mm Nosepiece
FAR RAC180 Part
Nozzle rac 180

£POA

Enquire now
720811 720811 - FAR RAC180 Riveting Tool Body | Item 31

£POA

Enquire now
720812 720812 - FAR RAC180 Handgrip | Item 50

£POA

Enquire now
720815 720815 - FAR RAC180 Pneumatic Piston | Item 6

£POA

Enquire now
721387, 721387
Oil Container
FAR RAC180 Part
Priming Pump
rac 180

£POA

Enquire now
740819 740819
Collector Bottle Kit
FAR RAC180 Part
rac 180

£POA

Enquire now
740821 740821 - FAR RAC180 Anti-Extrusion Ring Kit | Kit C

£POA

Enquire now
740837 740837 - FAR RAC180 Screw Stem Kit | Kit A

£POA

Enquire now
740840. 740840
Valve Spacer Kit
FAR RAC180 Part
rac 180

£POA

Enquire now
740851 740851
Spring Piston Kit
FAR RAC180 Part
Reversal Kit rac 180

£POA

Enquire now
740858 740858
Cone Holder Kit
FAR RAC180 Part
rac 180

£POA

Enquire now
741401 741401
Bush Kit
FAR RAC180 Part
rac 180

£POA

Enquire now
