VariBase Lifting Column 300N - 400mm Adjustment | VARIOBASE300

Model Number K24025   Part Number VARIOBASE300

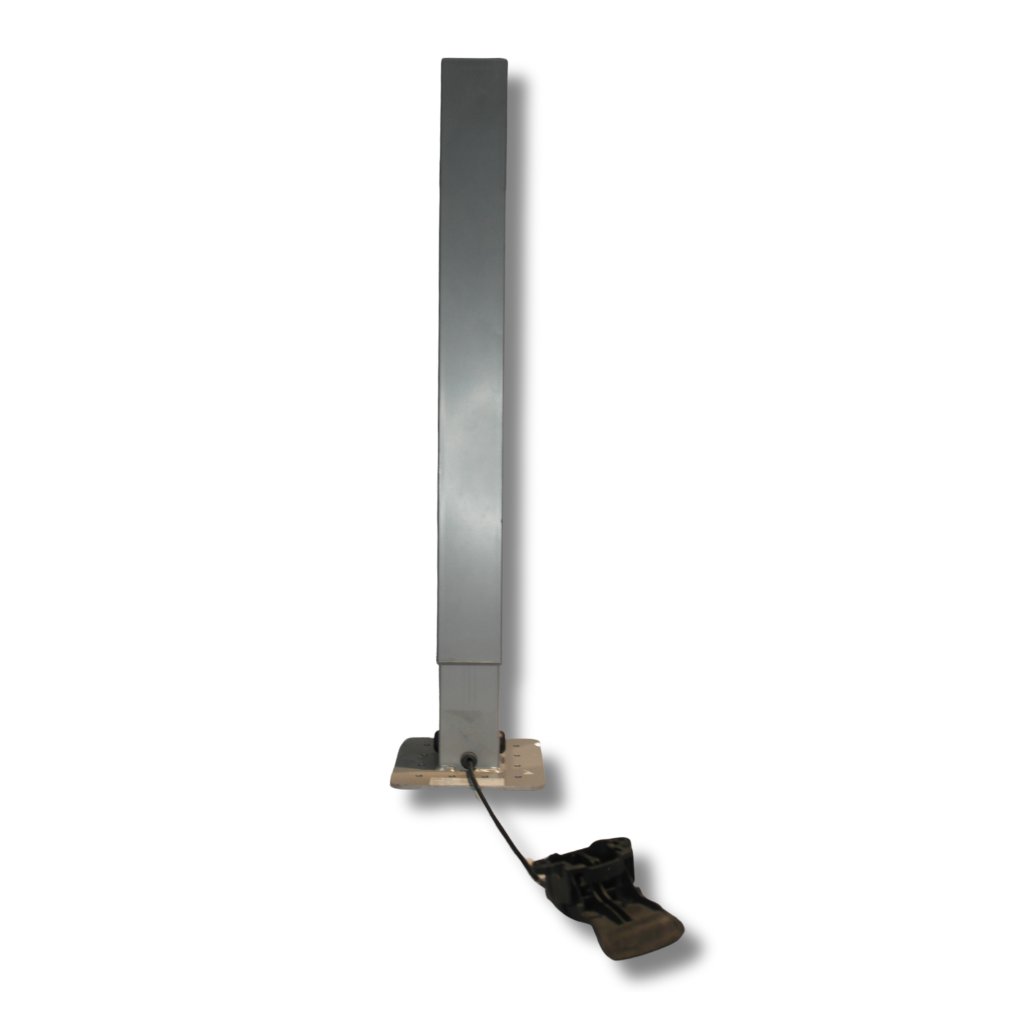

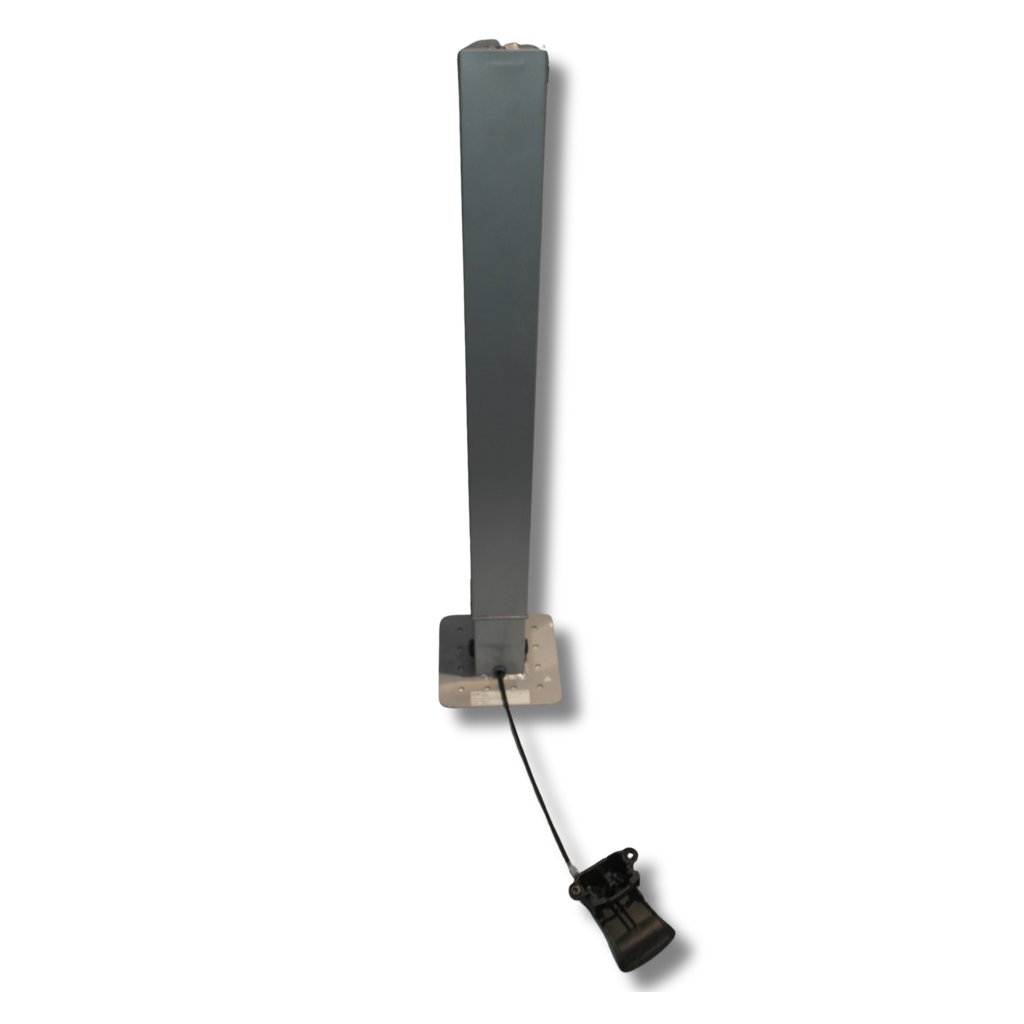

VariBase Lifting Column 300N



Features
  • Use the VariBase as a ready-to-install height-adjustable system.
  • 400mm Adjustable
  • Surface 1-2: Silver RAL 9006
  • See Tech Spec For Further Information
Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

This product is currently in stock

£144.00 ex. vat

£172.80 inc. vat

Buy Now

VariBase Lifting Column 300N

Features

  • Use the VariBase as a ready-to-install height-adjustable system.

  • 400mm Adjustable

  • Surface 1-2: Silver RAL 9006


Application temperature range from 0 °C to 45 °C
Storage temperature range from -10 °C to 60 °C
Corrosion resistance 75 hrs., testet acc. to DIN EN ISO 6270-2
Elastic locking at EL2 / Rigidly locking at HY6
Max. admissible load under tension: 1 200 N
Max. admissible load under compression : 1 200 N
Max. admissible static bending torque : 250 Nm

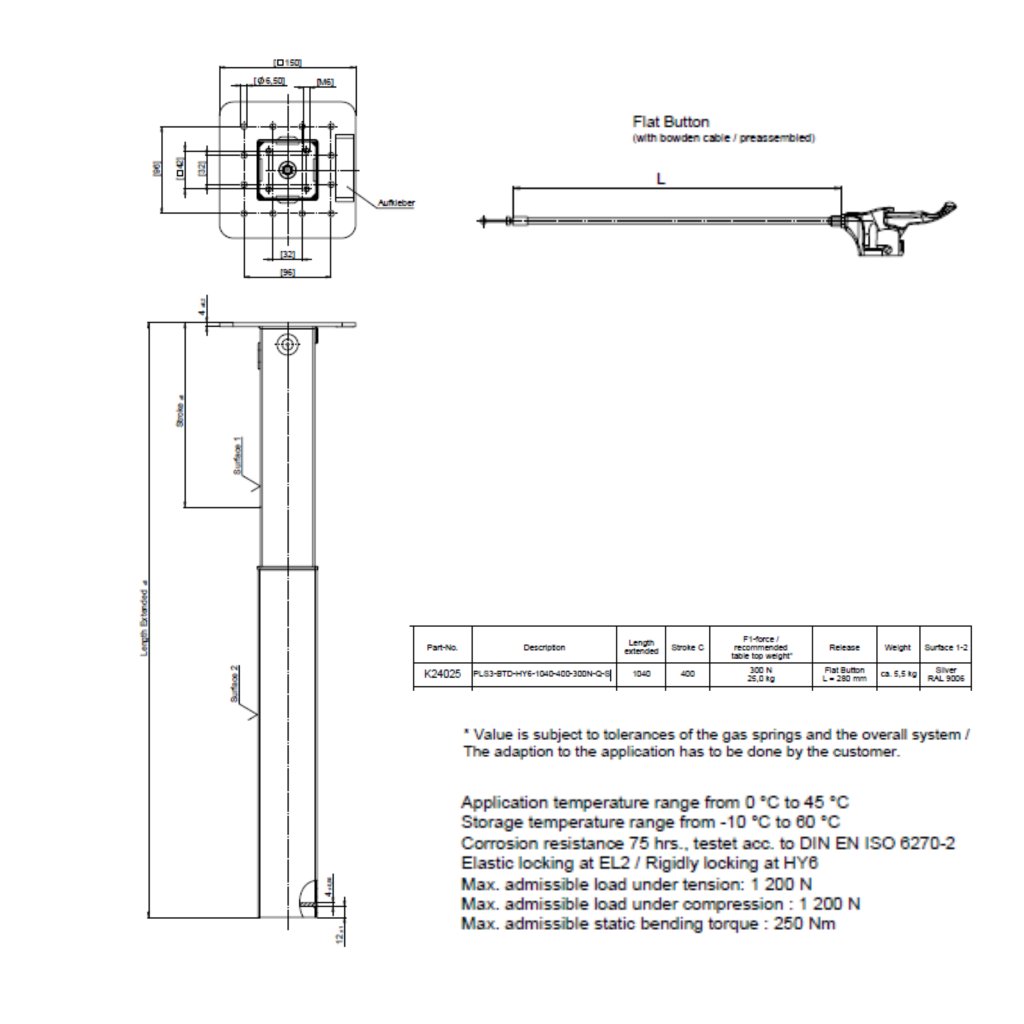

See Manual To Download Product Data Sheet


Specification

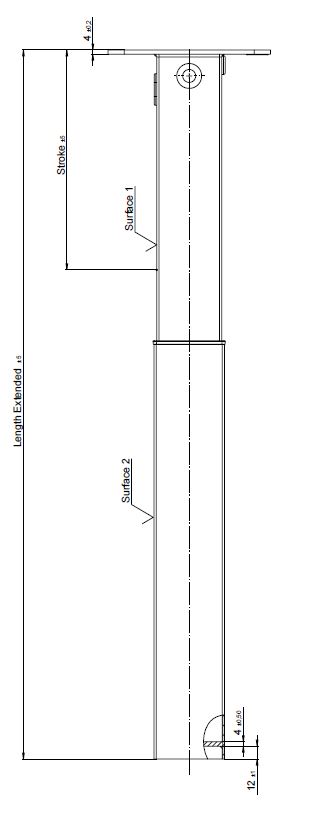

Part NumberDescriptionLength ExtendedStroke CF1-force/Recommended Table Top WeightReleaseWeightSurface 1-2Inner TubeOuter Tube

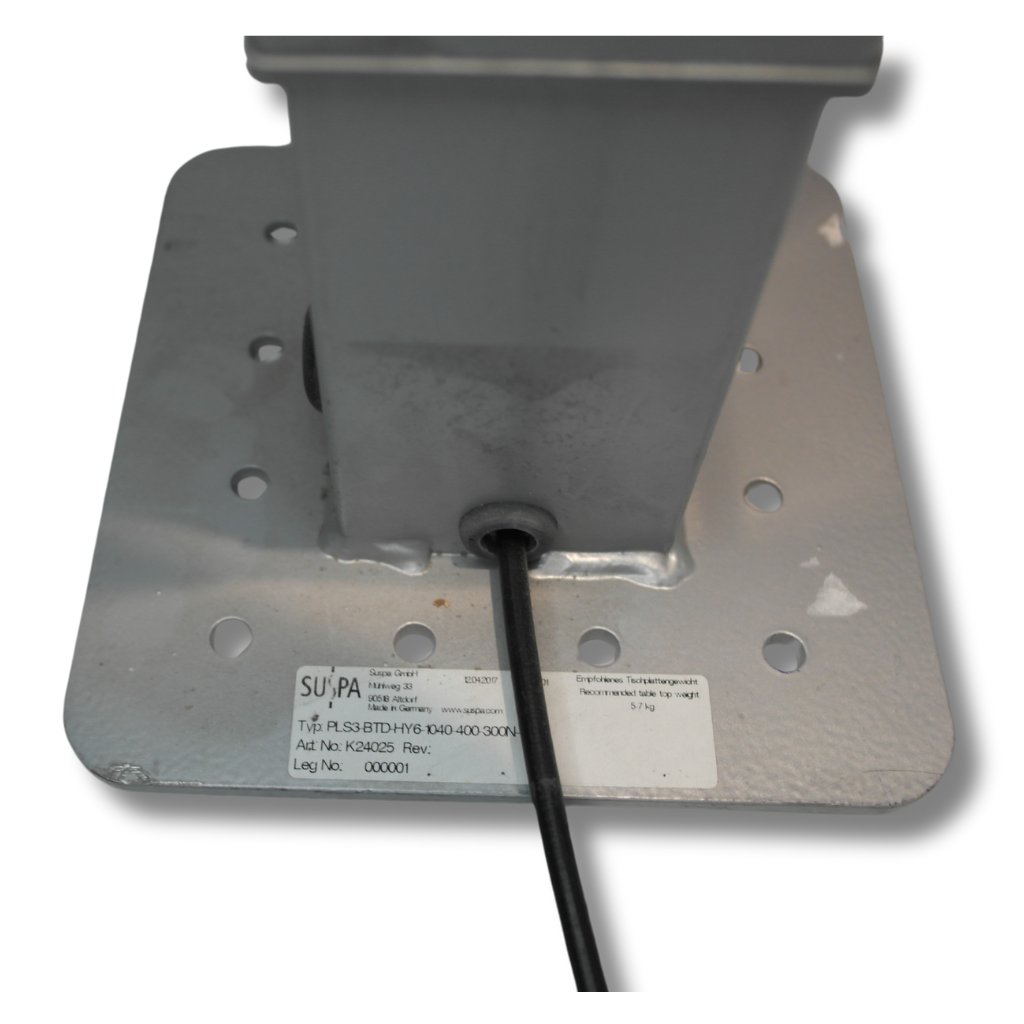

K24025 PLS3-BTD-HY6-1040-400-300N-Q-S 1040 400 300N
250.0Kg

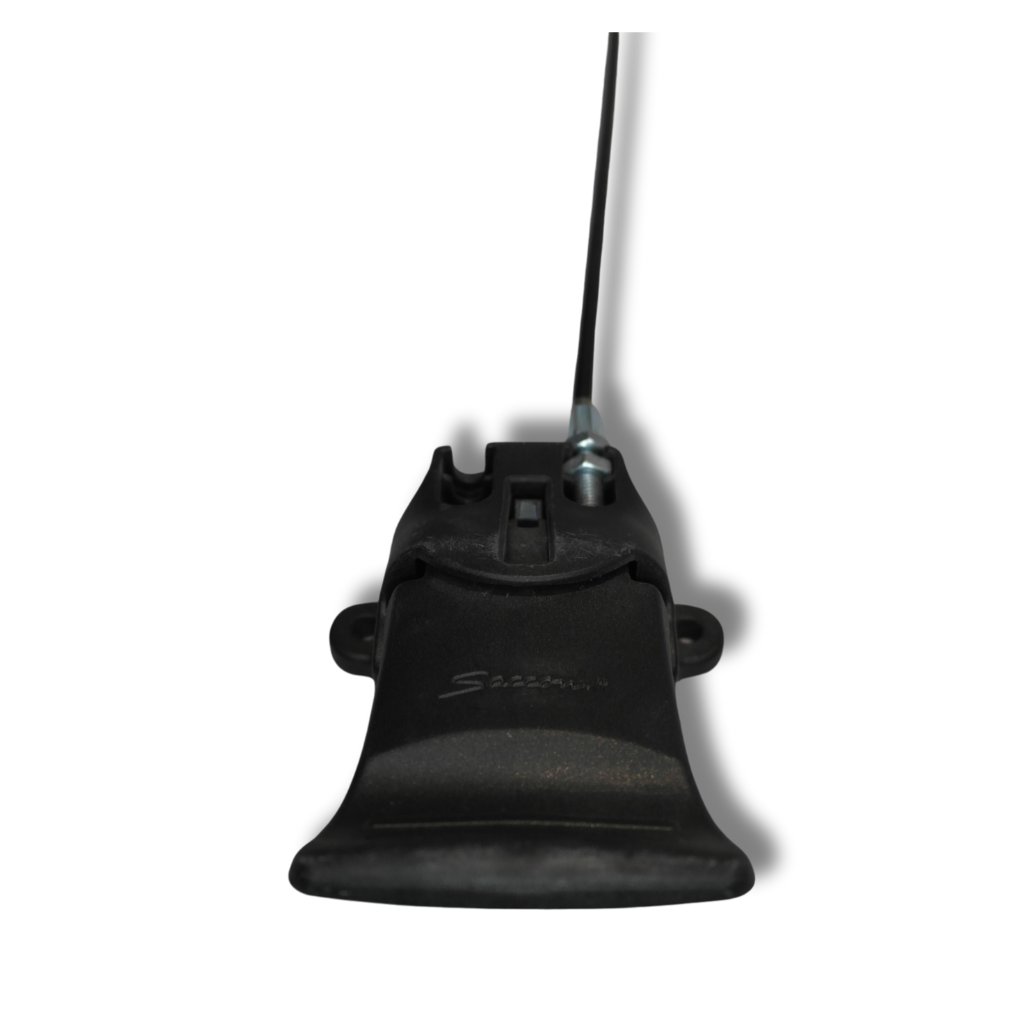

Flat Button

L=280mm

ca. 5.5Kg Silver RAL 9006 60mm 65mm
