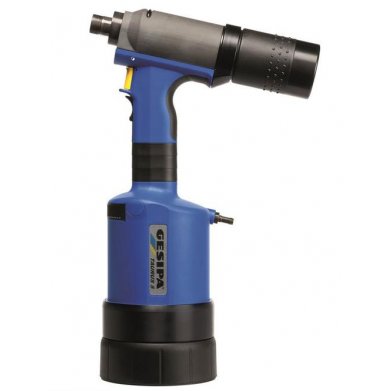

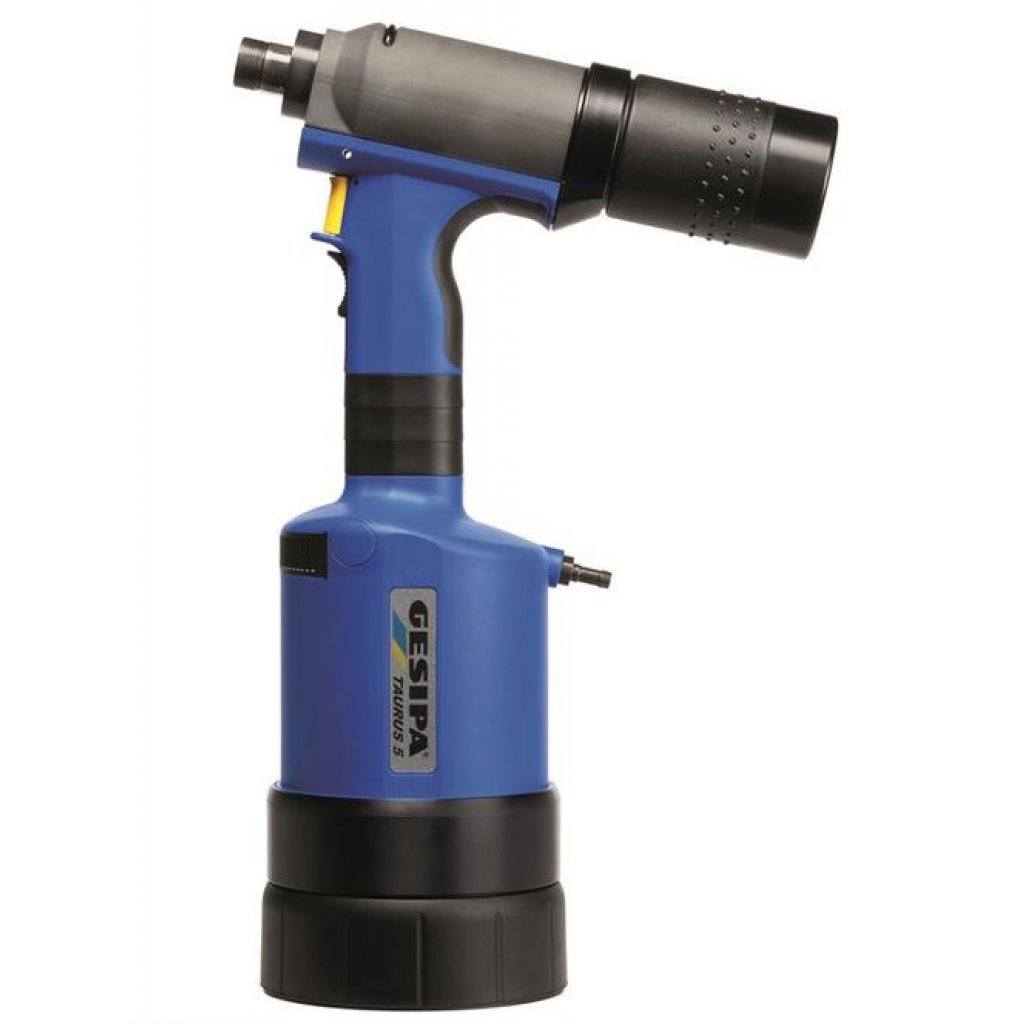

Gesipa Taurus 5 Air Riveter

Features

The Gesipa Taurus 5 Air Riveter is used to fasten blind rivets above 6.4mm in all materials. The Taurus 5 also sets lockbolts up to 10mm with the corresponding pulling heads.

Tool includes:

• 1 Hydraulic oil bottle 100ml
• 1 Oil refill can
• 1 Taurus 5 Tools
• Operating instructions with spare parts list

01 Modular principles

• Widest possible parts commonality – low spare part stocks required and simple maintenance
• Flexible adaption to new applications

02 Power

• High setting forces combined with low weight
• Fast work cycle
• Optimised stroke for the entire series

03 Patented handle mechanism

• With forcibly actuated jaws by pneumatic pressing
• Safe, non-slip gripping of the rivet mandrel
• Just one model of jaws for all tools
• Very long service lives

04 Efficiency

• Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent mandrels use the same air
• Air suction needed only for vertical downwards riveting. Can be permanently switched-off if not needed.

05 Work comfort / safety

• Rubberised, moulded grip
• Balanced center of gravity
• Low-vibration and soundproofed
• Little activation force required
• Spent mandrel container with swivelling air deflector
• Overpressure valve for prevention of overload
• Integrated protection feature prevents the ejection of spent mandrels while the spent mandrel container is removed

Gesipa Taurus 5 Air Riveter

Head Module For Taurus 5

Head Module for 7.8mm Titgemeyer TIBULB | Part Number: 1458008

Head Module for 9.8mm HUCK Magna-Lok | Part Number: 1458009

Other head modules available on request.
