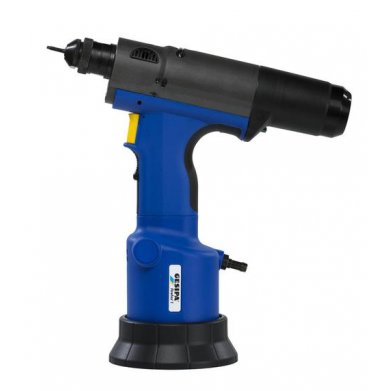

Gesipa Firefox 1F Air Rivet Nut Tool
M3 - M6

Model Number Firefox 1F   Part Number 1458198

Gesipa Firefox 1F | Air Rivet Nut Tool

Our extensive range of Gesipa Air Rivet Nut Tools Genuine Gesipa Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Automatic Spin Off Feature
  • Stroke (Adjustable) Max 7.5mm
  • Traction Power (Adjustable) Max 12.500 kN
  • M3 - M6 Setting Capacity
  • Capable Of Setting Rivet Stud Bolts
  • Nose Assembly's Included
  • 2 Year Manufacturer Warranty (click to view)
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

was £1,250.50

£1,199.77 ex. vat

£1439.72 inc. vat

Buy Now

Gesipa Firefox 1F Air Rivet Nut Tool

Features

The Gesipa Firefox 1F Air Rivet Nut Tool is used to fasten blind rivet nuts in a wide range of materials including Aluminium, Steel & Stainless Steel.

This Firefox is capable of setting Rivet Stud Bolts. These nose assemblys are not supplied with the tool but are avaliable upon request.

The easier-to-handle little brother of the FireFox® has been developed to allow even smaller blind rivet nuts to be set optimally and without damaging the materials to be joined. The FireFox® 1 F is controlled exclusively by setting the setting power. The thread of the blind rivet nut is perfectly protected and the blind rivet nut is anchored securing in the material being joined. Thanks to the modular system, the FireFox® 1 F has the same ergonomic design, low-fatigue working and familiar reliability of GESIPA® processing devices as its big brother. The stability has been optimised using a new rubber base.

  • Automatic Spin On | Off
  • Easy Mandrel Changeover
  • New Colour Coded Template Makes Setting The Traction Power On The Firefox Tools Very Easy & Precise
  • Tool Capable Of Setting Rivet Stud Bolts

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Automatic Spin Off Feature
  • Stroke (Adjustable) Max 7.5mm
  • Traction Power (Adjustable) Max 12.500kN
  • M3 - M6 Setting Capacity
  • Capable Of Setting Rivet Stud Bolts
  • Nose Assembly's Included
  • 2 Year Manufacturer Warranty (click to view)
  • Part-on Can Service & Provide Spare Parts For This Tool



Do you require a tool repair / service? Click Here!




Setting Capacity (Rivet Nuts)

Rivet Nut TypeAluminiumSteelStainless SteelNose Assembly Included
M3
M4
M5
M6
M8
M10
M12

Setting Capacity (Rivet Stud Bolts)

Rivet Bolt TypeSteelNose Assembly Included
M3
M4
M5
M6
M8
M10
M12

Gesipa Firefox 1F Air Rivet Nut Tool

SpecificationGesipa Firefox 1F
Brand Gesipa
Model Firefox 1F
Part Number 1458198
Type Air Rivet Nut Tool
Operating Mode Compressed Air
Setting Capacity M3 - M6
Stroke (Adjustable) Max 7.5mm
Traction Power (Adjustable) Max 12.500 kN
Spin On Automatic
Spin Off Automatic
Sets Rivet Stud Bolts Yes
Operating Air Pressure 5 - 7 BAR
Weight 1.96kg
Warranty Two Year
Contents Gesipa Firefox 1F Tool | Supplied With Nose Assembly's

Most blind rivet nut setting devices are stroke controlled, while only a few are setting force controlled. The FireFox® from GESIPA® represents a new generation of blind rivet nut setting device: simply, quickly and safely.

Reasons To Buy A Firefox ?

The innovative one – Setting blind rivet nuts with traction force adjustment. This means that the tool will stop pulling the blind rivet nut when a pre-adjusted traction force threshold is reached. No re-adjustment is needed when setting blind rivet nuts into different material thicknesses or when using blind rivet nuts with different shaft lengths. Traction force control prevents damage of the material which cannot be overstressed by a too high setting pressure and preserves the integrity of the blind rivet nut thread. As a bonus, it also extends the life duration of the threaded mandrels.

Fast and precise setting force adjustment with colour-coded setting ring. The required setting force is selected with a hexagon screwdriver directly on the tool.

The simple one – Easy operation through automatic drill-on function. The drill-on process will automatically start when a blind rivet nut is lightly pressed onto the mandrel tip. This avoids the cumbersome double action on twin triggers. Thereafter introduce the blind rivet nut into its setting hole, press the trigger and keep it pressed until the setting cycle is completely finished, nut drilled off and tool free. It couldn’t be easier!

The fast one – Extremely fast working cycle. Great care has been taken to shorten every sequence of the setting cycle to its absolute minimum: Pulling sequence and subsequent automatic drill-off take place at breathtaking speed and require only a single action on the trigger.
