Gesipa GAV HF Automated Rivet System
4.8 - 8mm
Gesipa GAV HF | Automated Rivet System
Benefits
- Electronic system controls
- Intuitive menu guidance via navigation and function keys
- 4.8-8mm Setting Capacity
- Function display
- Maintenance display and simple fault diagnosis
- Customer-specific software modification is possible
- Ideal for applications that do not require any process monitoring
- Supplied including one setting pistol
24 Month Manufacturer Warranty
Commissioning and Service Plans Offered
Call us today on 0121 439 7152 for best price and delivery!
£POA

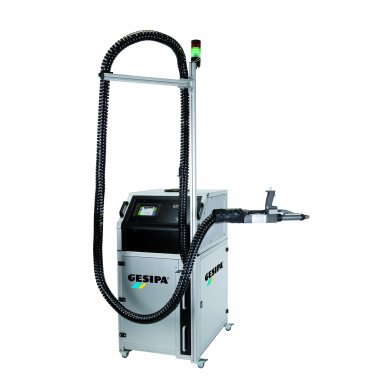

Gesipa GAV HF Automated Rivet System![]()
Fully automatic blind rivet system for industrial manufacturing applications with high strength blind rivets. This machine is the natural next step towards automated processing of blind rivets with increased setting forces and larger setting head diameters.
Working Range
- Blind rivet size range from 4.8 mm to Ø 8.0 mm for all materials
- Rivet body lengths up to 35 mm
- Setting head diameter up to 19 mm
- Mandrel body up to Ø 5.5 mm
- Setting force up to 25,000 N with air pressure 6 bar
Scope Of Delivery
The scope of delivery always includes one setting pistol. This can be freely modified as required.
Advantages

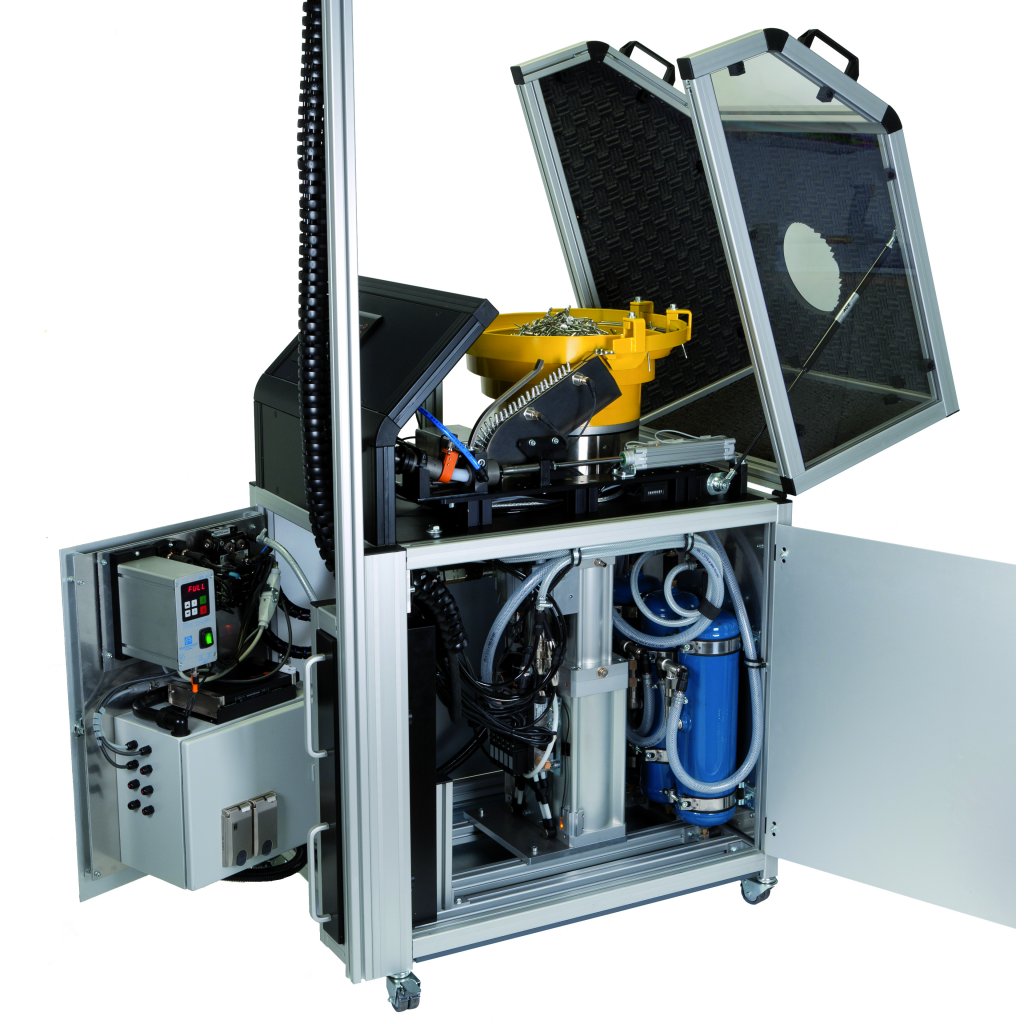

• Conveyor pot filling level display
• Operating pressure: 5 bar
• Vibration-dampened pressure intensifier attachment
• Multiple monitoring of the blind rivet pistol by means of sensors

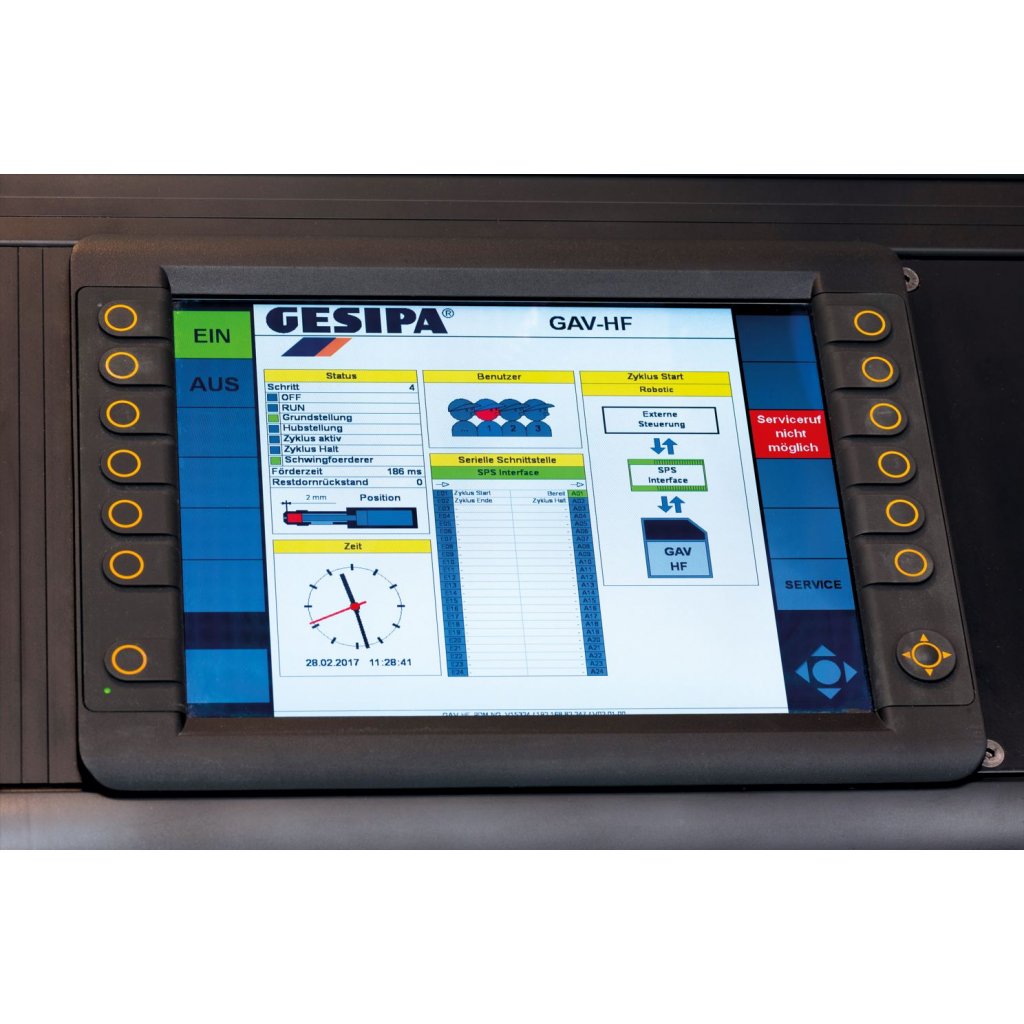

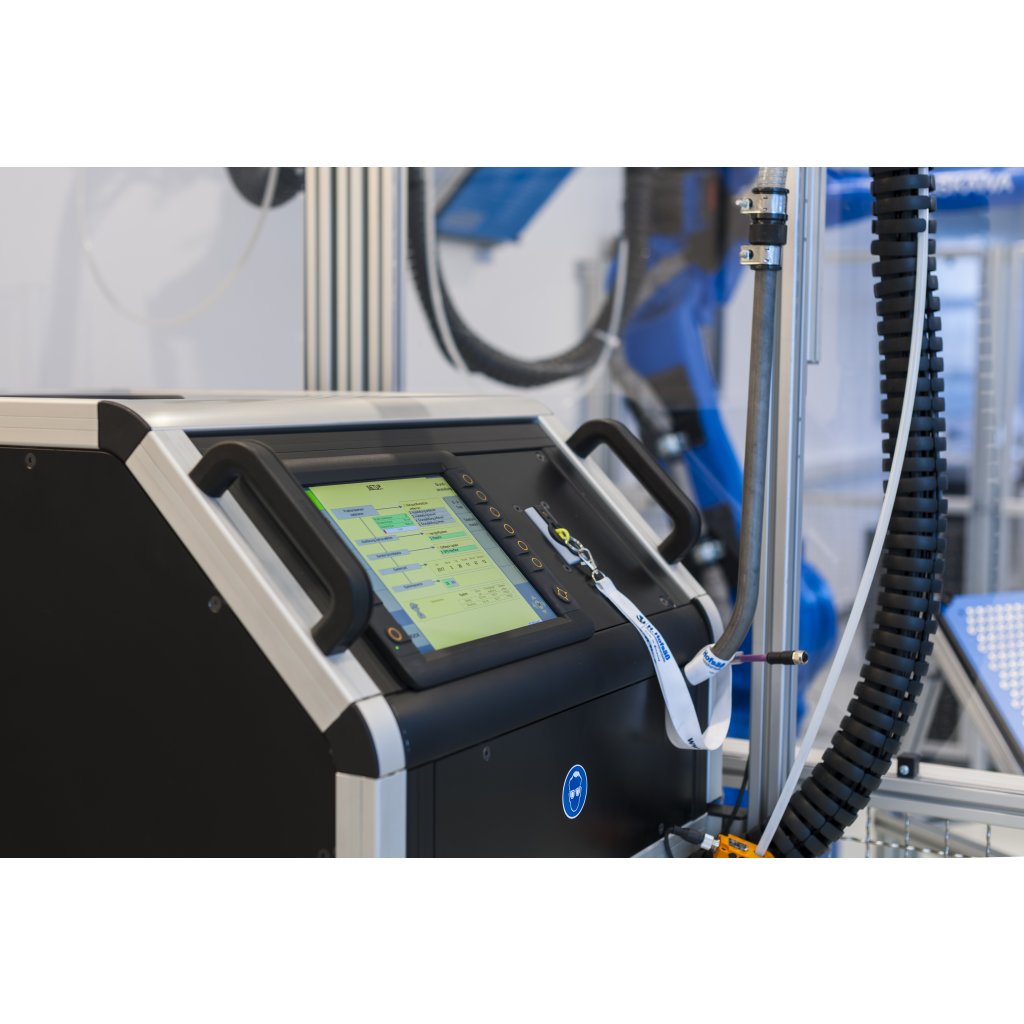

• Industrial control with an 8“ colour display
• Conveyor distances of up to 25 m are possible when used in fully-automatic production systems
• Electronic system controls
• Intuitive menu guidance via navigation and function keys
• Function display
• Maintenance display and simple fault diagnosis
• Customer-specific software modification is possible
• Ideal for applications that do not require any process monitoring
• Rivet mandrels are disposed of via a vacuum system
• Surface contact trigger available as an optional extra
• Can be integrated into the system or operated independently
• Interface for external memory-programmable control system (SPS) can be realised via the GESIPA®-Interface
Setting Capacity (Standard Rivets)
| Rivet Type | Aluminium | Steel | Stainless Steel |
|---|---|---|---|
| 4.8mm | |||
| 5.0mm | |||
| 6.0mm | |||
| 6.4mm | |||
| 8.0mm |
Gesipa GAV HF Automated Rivet System
| Specification | Gesipa GAV HF |
|---|---|
| Brand | Gesipa |
| Supply Unit Weight | 270kg |
| Spent Mandrel Container Volume | approx. 1,800 to 5,500 pcs.(3.5 l) depending on size |
| Nominal Voltage | 230 volt - 50Hz |
| Nominal Current | <8 A |
| Protection Class | IP 54 |
| Supply Pressure | <10 Bar |
| Operating Pressure | 5 Bar |
| Air Consumption/Riveting | 30NL |
| Air Consumption/Spent Mandrel Extraction | 340NL/min |
| Connection Line | ¾ “ (18.75 mm) max. length 5 m |
| Rest Mandrel Extraction Tube | Outer Ø 10 mm/ Inner Ø 6 mm |
| Pressure Transducer | Hydro-Pneumatic |
| Pistol Weight | ca. 7kg |
| Pistol Stroke | 20mm |
| Pistol Traction Power | 25,000N |
| Standard Tube Package Length | 6 m (max. 25 m) |
| Working Cycle (theoretical) | 2 sec. |
