Gesipa GAV8000 Electronic Automated Rivet System
2.4-6.4mm

Model Number GAV8000   Part Number GAV8000Electronic

Gesipa GAV8000 Electronic | Automated Rivet System

Benefits
  • Up to 40 rivet settings per minute
  • Independent system operation possible
  • 2.4-6.4mm Setting Capacity
  • PLC control possible
  • Intelligent Control - excellent process safety
  • Setting of all operating parameters via the display
  • Customer-specific software modification
  • Maintenance display
  • Supplied including one setting pistol
  • Process monitoring
  • Storage of process parameters for up to 9,999 different components
  • Online transfer of process data
  • Storage of the last 100.000 riveting processes on the tool
  • 24 Month Manufacturer Warranty
    Commissioning and Service Plans Offered

Please refer to the Details & Tech Spec tab below for more information.
Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£POA

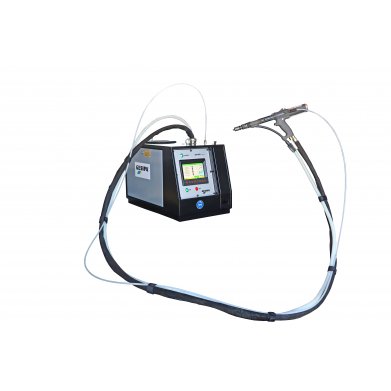

Gesipa GAV8000 Electronic Automated Rivet System

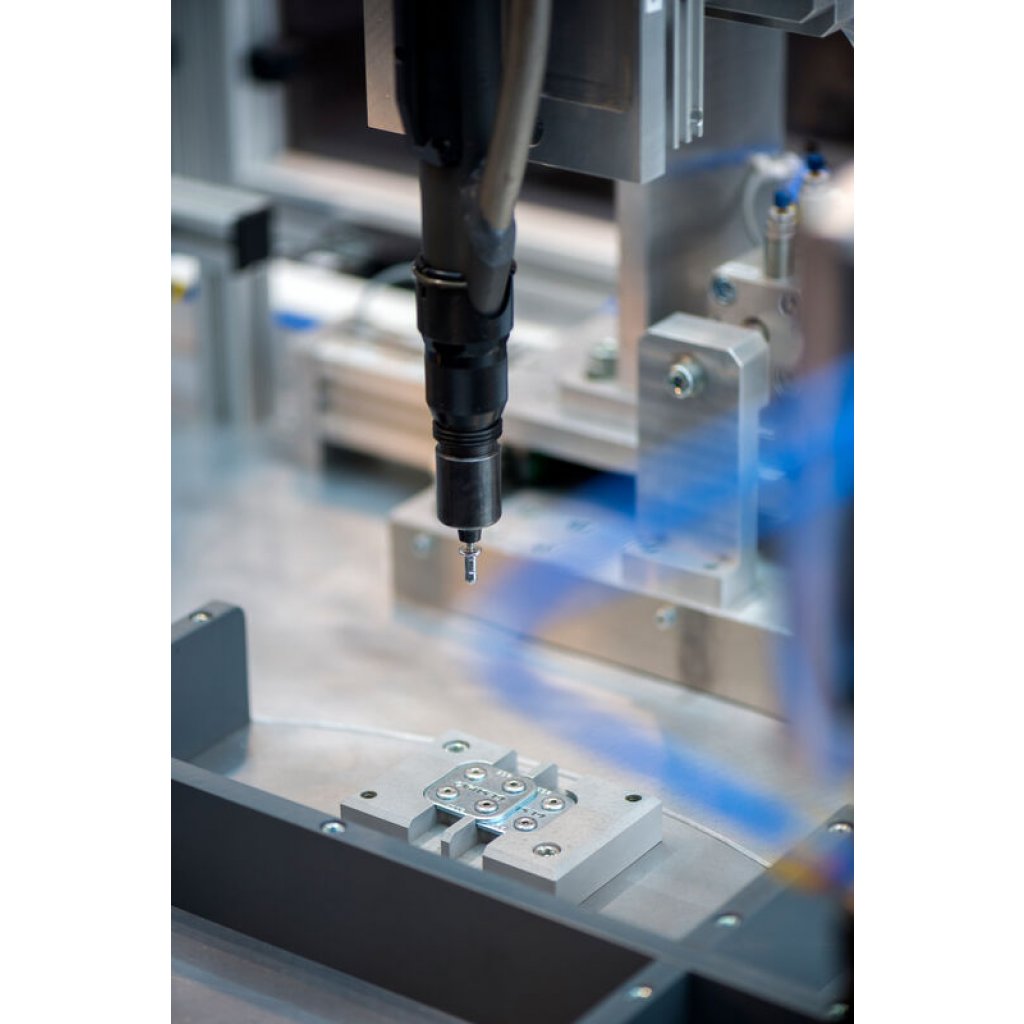

Fully automatic blind rivet system with setting process monitoring for industrial production.

Tool Description

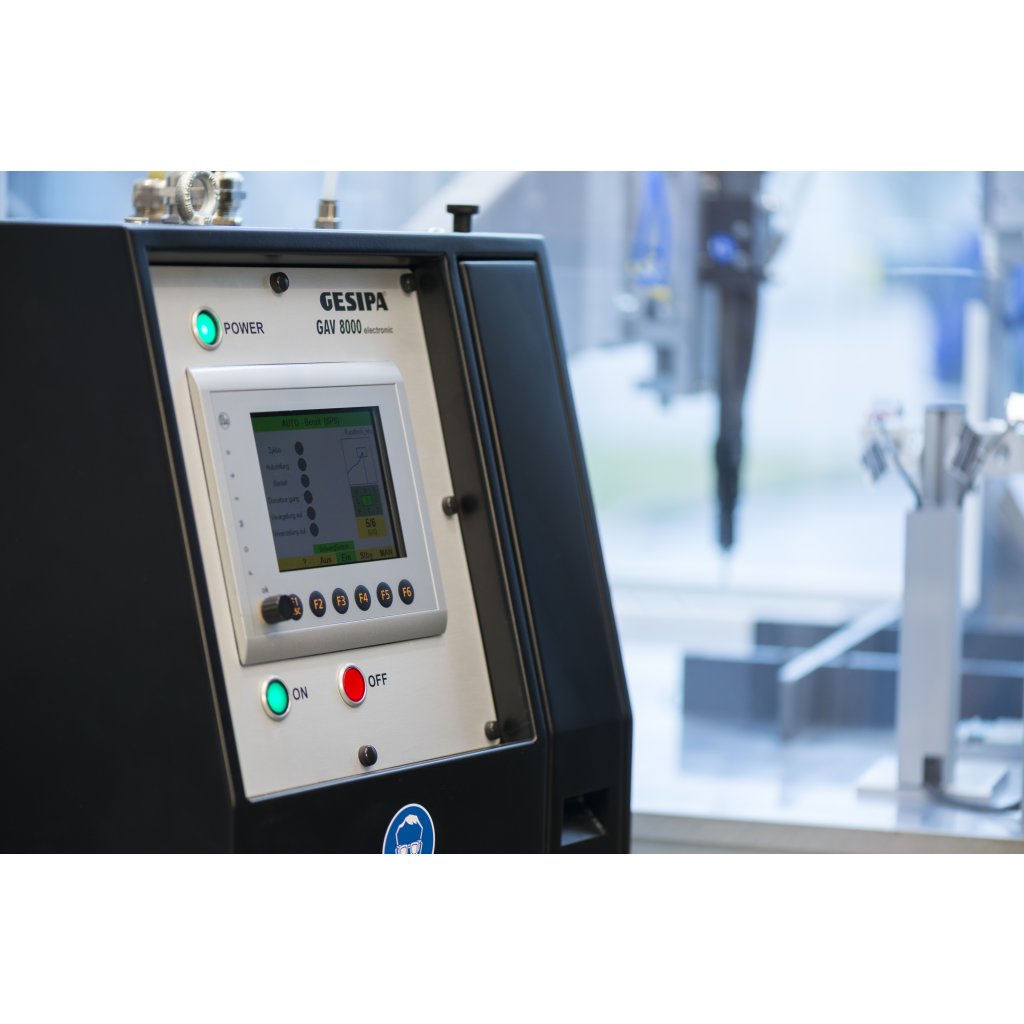

The GAV 8000 is easy to operate using the navigation and function buttons in conjunction with the display and intuitive menu interface. All upcoming maintenance work is also displayed for you and troubleshooting and customer-specific software-related modifications are no problem at all. The system can be operated independently or integrated into a system and there is even the option for contact pressure monitoring if required. Mandrel body disposal is incredibly straightforward using an installed vacuum system and an interface for external programmable logic controllers (PLCs) can be set up via the GESIPA-Interface.

Productivity and Potential For Savings

If you need 500,000 blind rivets or more on a yearly basis, the GAV 8000 is the most profitable option for you. The amount of money and time you have to invest can be cut by as much as half in comparison to standard blind riveting tools. This huge potential for savings is brought about by the combination of the many advantages afforded by the GAV: For one thing, you don't need to have any specialist operating staff, as integration into fully automatic manufacturing systems is no trouble at all. What's more, up to 40 blind rivets can be processed every minute within a maximum working radius of 5 m.



Working Range GAV8000

• 2.4 mm up to 6.4 mm Ø alu and copper
• Up to 6 mm Ø steel
• Up to 5 mm Ø stainless steel
• Up to flange diameter 11.4 mm
• Rivet body lengths above 30 mm
• Traction power up to 12,000 N at 6 bar air pressure


Scope Of Delivery

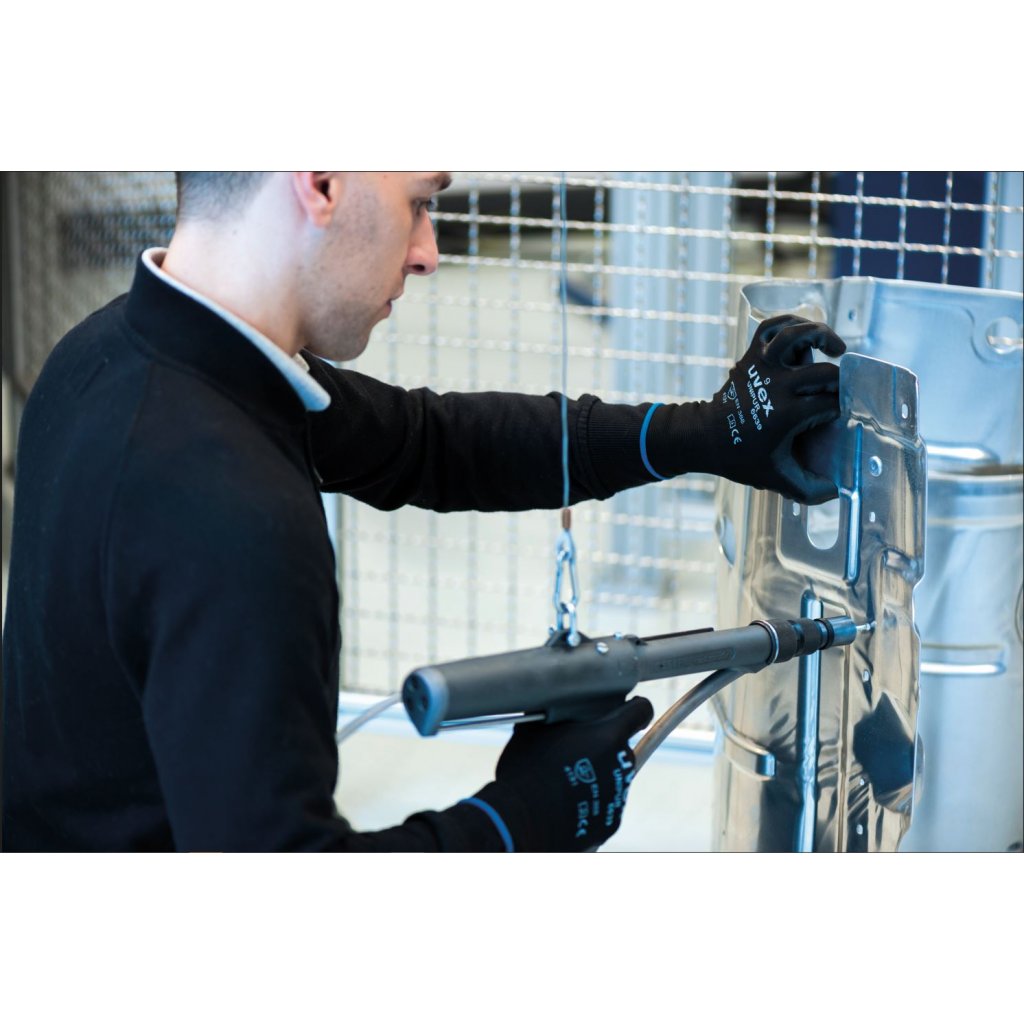

The scope of delivery always includes one setting pistol. This can be freely modified as required.



System Descripion

• Electronic system controls
• Intuitive menu guidance via navigation and function keys
• Function display
• Maintenance display and simple fault diagnosis
• Customer-specific software modification is possible
• Rivet mandrels are disposed of by vacuum system
• Spring loaded trigger system as an optional extra available
• Can be integrated into the system or operated independently
• Interface for external memory programmable control system (SPS) can be realised via the GESIPA interface


Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelCopper
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm
5.0mm
6.0mm
6.4mm





Gesipa GAV8000 Electronic Automated Rivet System

Working Cycle (theoretical)1.25 sec.

SpecificationGesipa 8000 Electronic
Brand Gesipa
Supply Unit Weight 100kg
Spent Mandrel Container Volume approx. 1800 to 5500pcs (3.5l) depending on size
Nominal Voltage 230 volt - 50Hz
Nominal Current  <2.5A
Protection Class IP 54
Supply Pressure  <10 Bar
Operating Pressure 6 Bar
Air Consumption/Riveting 15NL
Air Consumption/Spent Mandrel Extraction 340NL/min
Connection Line 1/2" (12.5mm) max. length 5m
Rest Mandrel Extraction Tube Outer Ø 8 mm/ Inner Ø 5 mm
Pressure Transducer Hydro-Pneumatic
Pistol Weight ca. 2.5kg
Pistol Stroke 16 - 20mm
Pistol Traction Power 12,000N
Standard Tube Package Length 3.75m (max. 5.0m)
