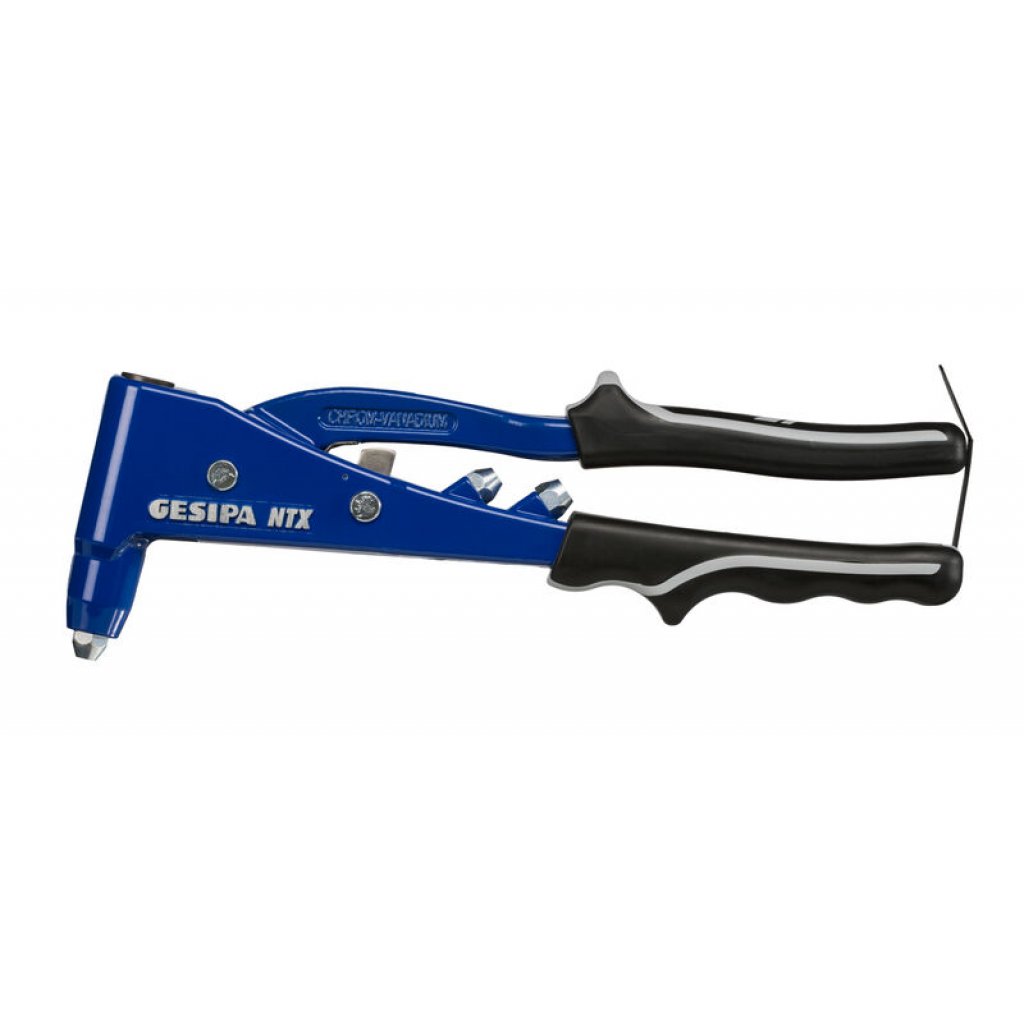

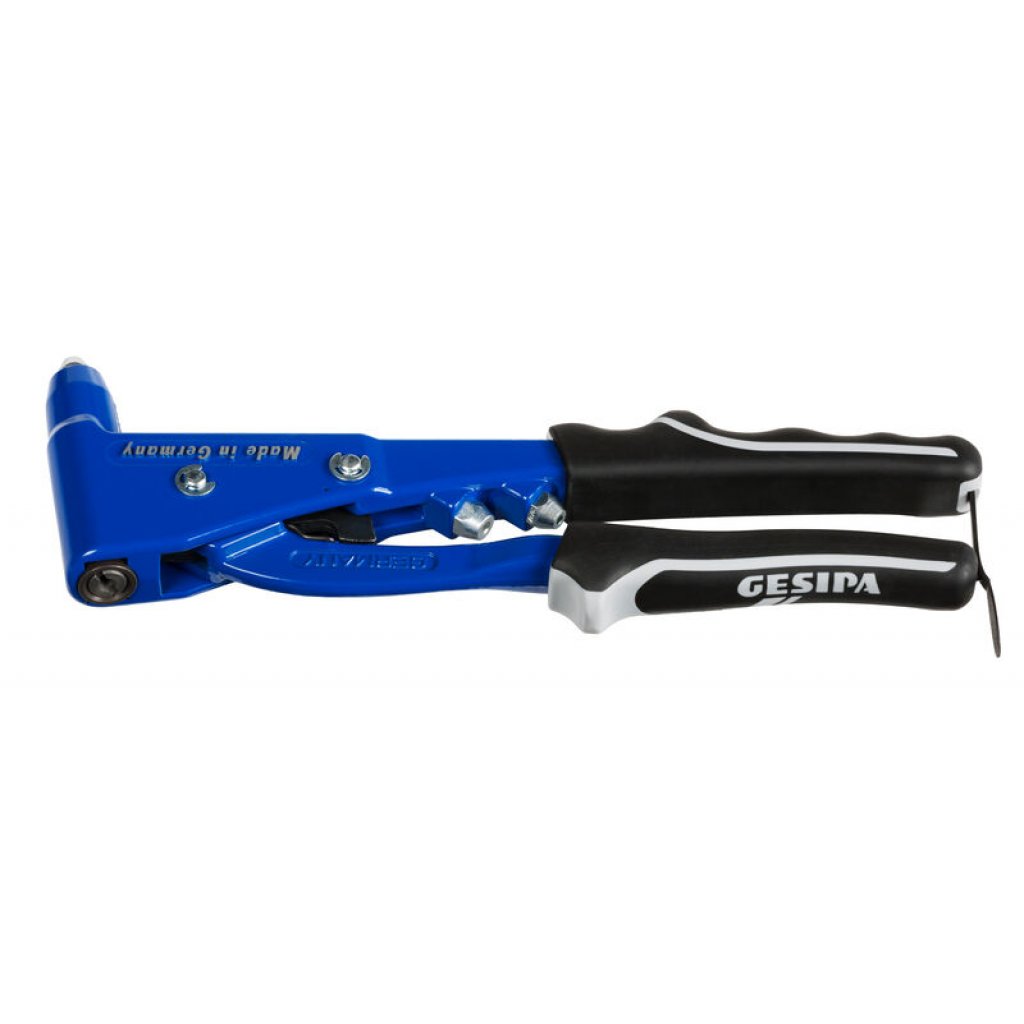

Gesipa NTX-F Plier Type Hand Riveter

Features

The Gesipa NTX-F Plier Type Riveter is used to fasten blind rivets in a wide range of materials including Aluminium, Steel & Stainless Steel.

The ergonomic handles allow the tool to work easily and pleasently. Difficult to access areas can be reached easily with the narrow head. The body head of the NTX is made of forged steel and the body casing of high-quality die cast aluminium. The intermediate lever system of the NTX reduces the force required and dampens the tear-off effect. The narrow pliers head allows to reach difficult to access rivets. This tool can also be purchased with a self opening spring which allows the ejection of the mandrel automatically if required.

• Body casing in high-quality die cast aluminium
• Body head made of chrome-vanadium steel, forged
• Narrow pliers head for difficult to access rivet locations
• Steel inserts on all bearing points subject to wear
• Intermediate lever system reduces the force required and dampens the tear-off effect
• Opening spring for automatic ejection of the mandrel
• Ergonomic slip handles
• Simple maintenance – fast jaw change

 Benefits

• Lightweight, Fast Operation
• Portable
• Single Handed Operating Tool
• 2.4mm - 5.0mm Setting Capacity
• 8.0mm Stroke
• Plier Type Hand Riveter
• Nosepieces Included

Do you require a tool repair / service? Click Here!

Setting Capacity (Standard Rivets)

Gesipa NTX-F Plier Type Hand Riveter

Manual Plier Type Hand Rivet tools are lightweight & very easy to maintain & operate.

You dont need to worry about setting this tool up, With there being no stroke adjustment settings you simply attach your required nose piece & the tool is ready to fasten.

Manual plier type hand riveters can also be operated single handedly.

Handles

• Ergonomically formed handles for working efficiently without fatigue
• Improved haptics by use of softer material
• Non-slip even in oily environments
• Environmentally compatible thanks to PVC-free handles
• Optimised locking clip

Housing

• Improved performance thanks to newly designed housing
• Powder-coated abrasion-resistant housing surface

Advantages

• Simple one-hand operation
• Effortless lever system
• Specially hardened GESIPA® jaw system
• Rugged design and durable
• Equipped with the most commonly used GESIPA® nosepieces secured directly on the tool
• Nosepieces quick and easy to change
