Gesipa NTX Hand Riveter
2.4mm - 5.0mm

Model Number NTX   Part Number 1434040

Gesipa NTX | Hand Rivet Tool

Our extensive range of Gesipa NTX Hand Riveters Genuine Gesipa Tooling Subject to Stock & Availability

Benefits
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

was £63.04

£49.35 ex. vat

£59.22 inc. vat

Buy Now

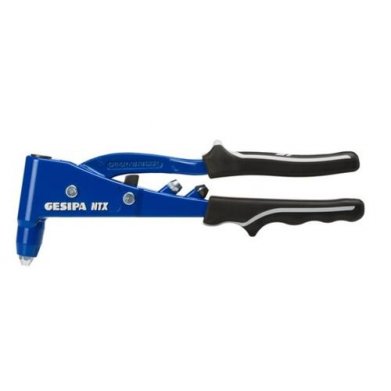

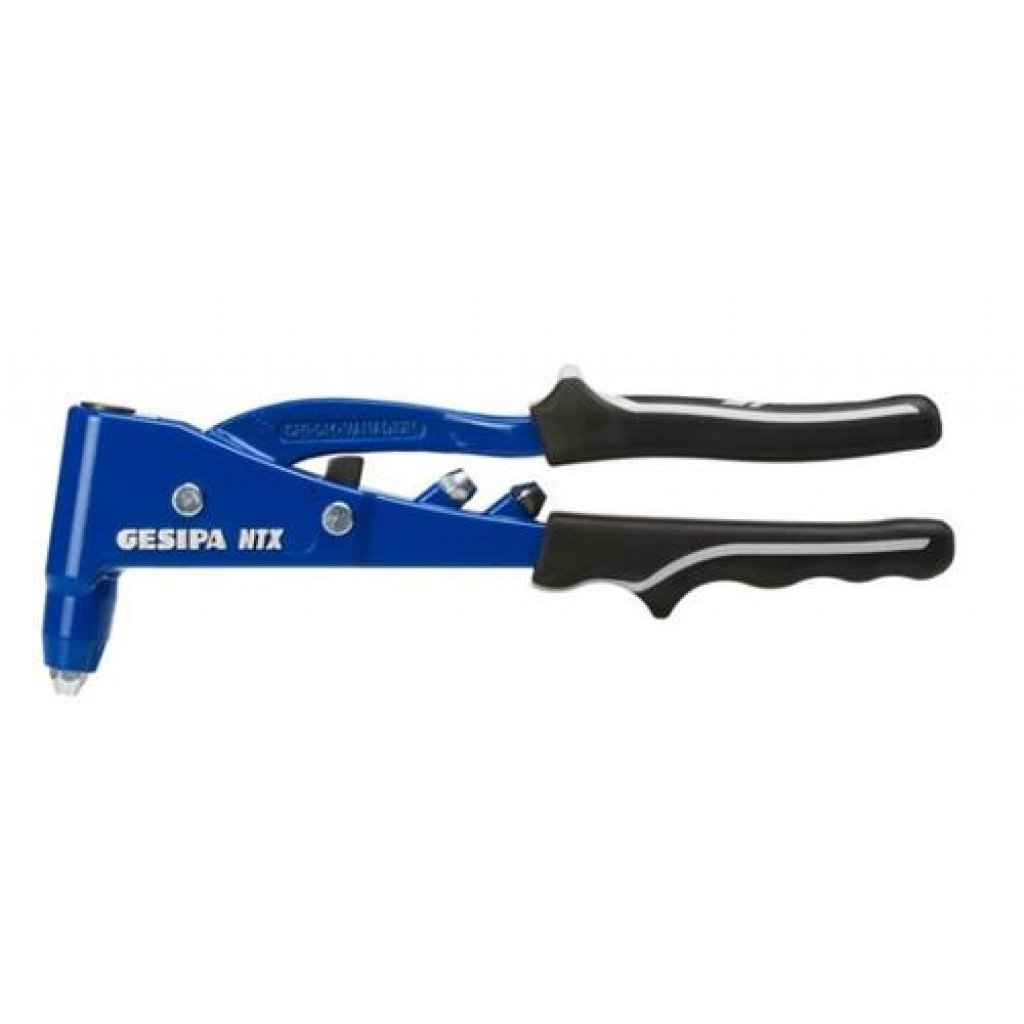

Gesipa NTX Plier Type Hand Riveter

Features

The Gesipa NTX Plier Type Riveter is used to fasten blind rivets in a wide range of materials including Aluminium, Steel & Stainless Steel.

The ergonomic handles allow the tool to work easily and pleasently. Difficult to access areas can be reached easily with the narrow head. The body head of the NTX is made of forged steel and the body casing of high-quality die cast aluminium. The intermediate lever system of the NTX reduces the force required and dampens the tear-off effect. The narrow pliers head allows to reach difficult to access rivets. This tool can also be purchased with a self opening spring which allows the ejection of the mandrel automatically if required.

  • Body casing in high-quality die cast aluminium
  • Body head made of chrome-vanadium steel, forged
  • Narrow pliers head for difficult to access rivet locations
  • Steel inserts on all bearing points subject to wear
  • Intermediate lever system reduces the force required and dampens the tear-off effect
  • Opening spring for automatic ejection of the mandrel
  • Ergonomic slip handles
  • Simple maintenance – fast jaw change

 Benefits

  • Lightweight, Fast Operation
  • Portable
  • Single Handed Operating Tool
  • 2.4mm - 5.0mm Setting Capacity
  • 8.0mm Stroke
  • Plier Type Hand Riveter
  • Nosepieces Included



Do you require a tool repair / service? Click Here!



Setting Capacity (Standard Rivets)

Rivet TypeAluminiumSteelStainless SteelNose Piece Included
2.4mm
3.0mm
3.2mm
4.0mm
4.8mm
5.0mm
6.0mm
6.4mm

Please Note: In order to set 4.0mm & 4.8mm steel & stainless steel rivets you may need to purchase an additional nosepiece depending on your fastener.

Gesipa NTX Plier Type Hand Riveter

Manual Plier Type Hand Rivet tools are lightweight & very easy to maintain & operate.

You dont need to worry about setting this tool up, With there being no stroke adjustment settings you simply attach your required nose piece & the tool is ready to fasten.

Manual plier type hand riveters can also be operated single handedly.


Handles

  • Ergonomically formed handles for working efficiently without fatigue
  • Improved haptics by use of softer material
  • Non-slip even in oily environments
  • Environmentally compatible thanks to PVC-free handles
  • Optimised locking clip

Housing

  • Improved performance thanks to newly designed housing
  • Powder-coated abrasion-resistant housing surface

Advantages

  • Simple one-hand operation
  • Effortless lever system
  • Specially hardened GESIPA® jaw system
  • Rugged design and durable
  • Equipped with the most commonly used GESIPA® nosepieces secured directly on the tool
  • Nosepieces quick and easy to change



SpecificationGesipa NTX
Brand Gesipa
Model NTX
Part Number 1434040
Type Plier Type Manual Hand Riveter
Setting Capacity 2.4mm - 5.0mm
Stroke 8.0mm
Contents Gesipa NTX Hand Riveter.
Weight 0.58kg
