Qonnect R64XL Air Rivet Tool

Features

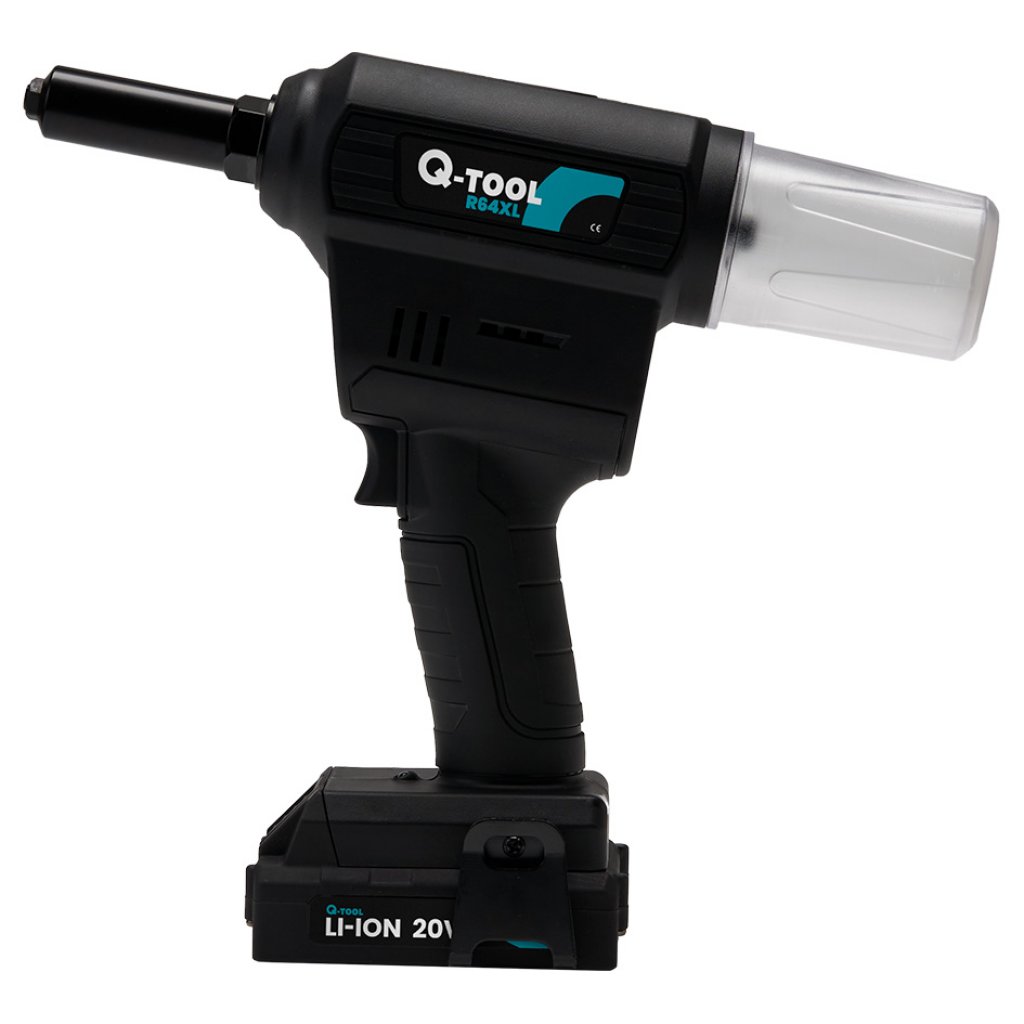

the R64XL is a well-designed and effective battery-powered rivet tool. Capable of installing rivets from 2.4 to 6.4mm diameter including structural rivets such as Monobolts or M-Power structural rivets, this versatile riveter is the only one you need for your riveting requirements.

The R64XL’s 20 Volt brushless motor generates 20,000 Newtons of traction power and a 27.0mm stroke length which will cope with even the longest rivets. The tool is well balanced and has a soft feel grip and a light short pull trigger to maximise operator comfort.

User convenience is further enhanced by the quick release and transparent stem collector and built-in LED light which helps to illuminate the workspace.

Specifications

• Weight                  1.88 Kg (with battery)
• Setting Force        20.000N
• Stroke                   27.0mm
• Drive                     20 Volt brushless DC motor.
• Capacity               2.4mm to 6.4mm rivets in all materials, structural break stem rivets 4.8 and 6.4mm in all materials
• Performance           Installations on a single charge - 4.8mm aluminium 1,400 rivets. Steel 4.8mm 1,200 rivets. Stainless steel 4.8mm 1,000 rivets
• Height                    (including battery) 275mm
• Length                    (Including nose assembly)  295mm
• Nose assembly       75mm long (including nose tip)

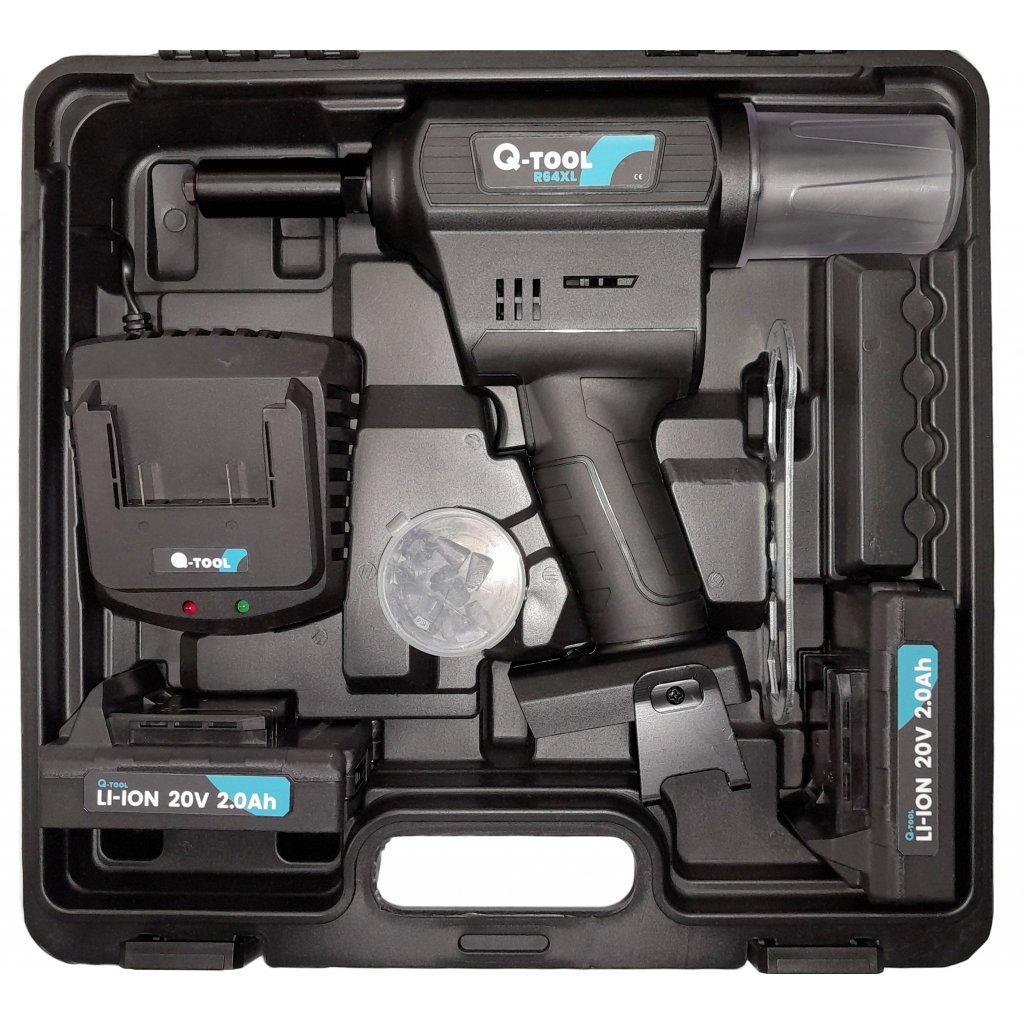

• Supplied battery    Lithium Ion 20 Volt 2.0 AH with LED charge display. Charging time <60 minutes
• Flush fitting suspension hook

Do you require a tool repair / service? Click Here!

Setting Capacity (Standard Rivets)

Setting Capacity (Monobolts)

Do you require a tool repair / service? Click Here!

Qonnect R64XL Air Rivet Tool 2.4-6.4mm
