Avdel NG1 | Air Rivet Tool

THIS TOOL HAS BEEN DISCONTINUED

NEW PRODUCT: Please Follow Link: POP | Avdel XT1

The POP | AVDEL XT1 tool is the new hybrid version of the POP Proset 1600 & the Avdel NG1 rivet tools.

Do you require a tool repair / service? Click Here!

Features

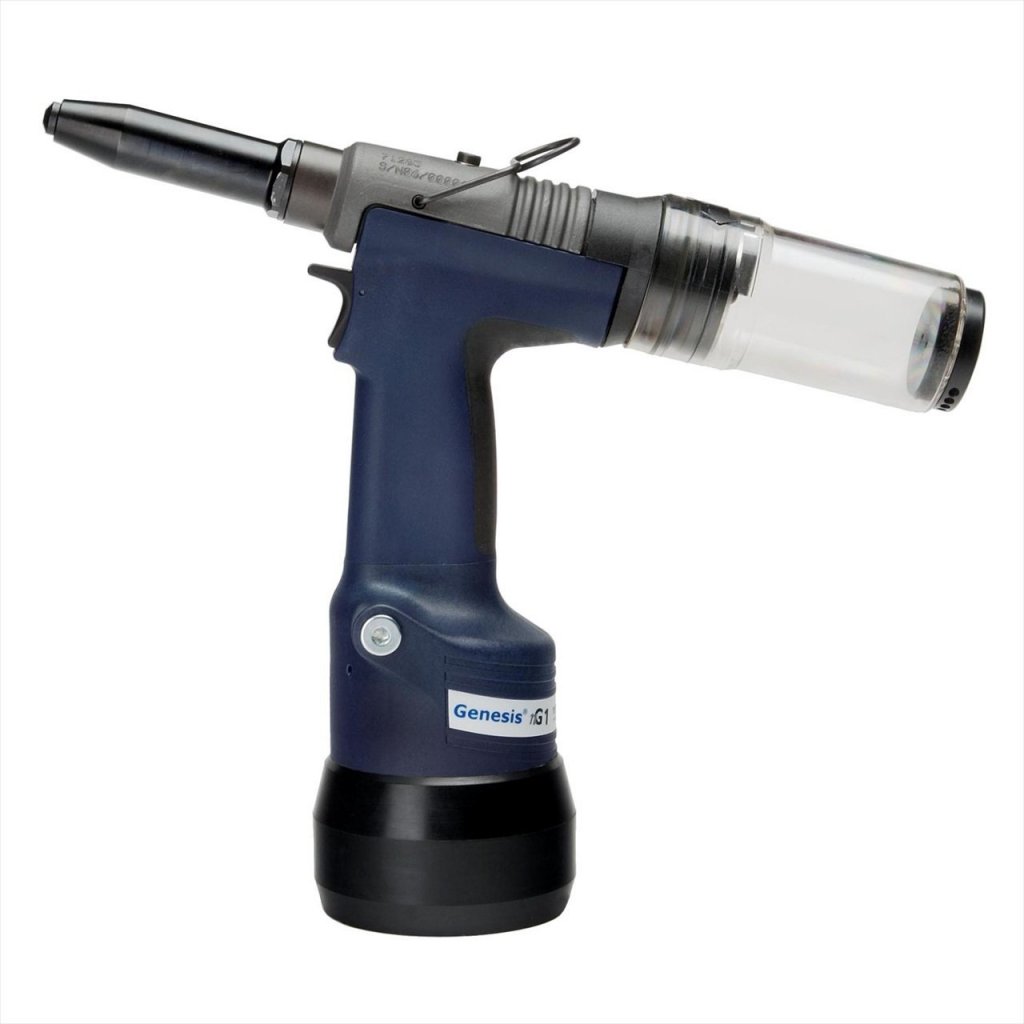

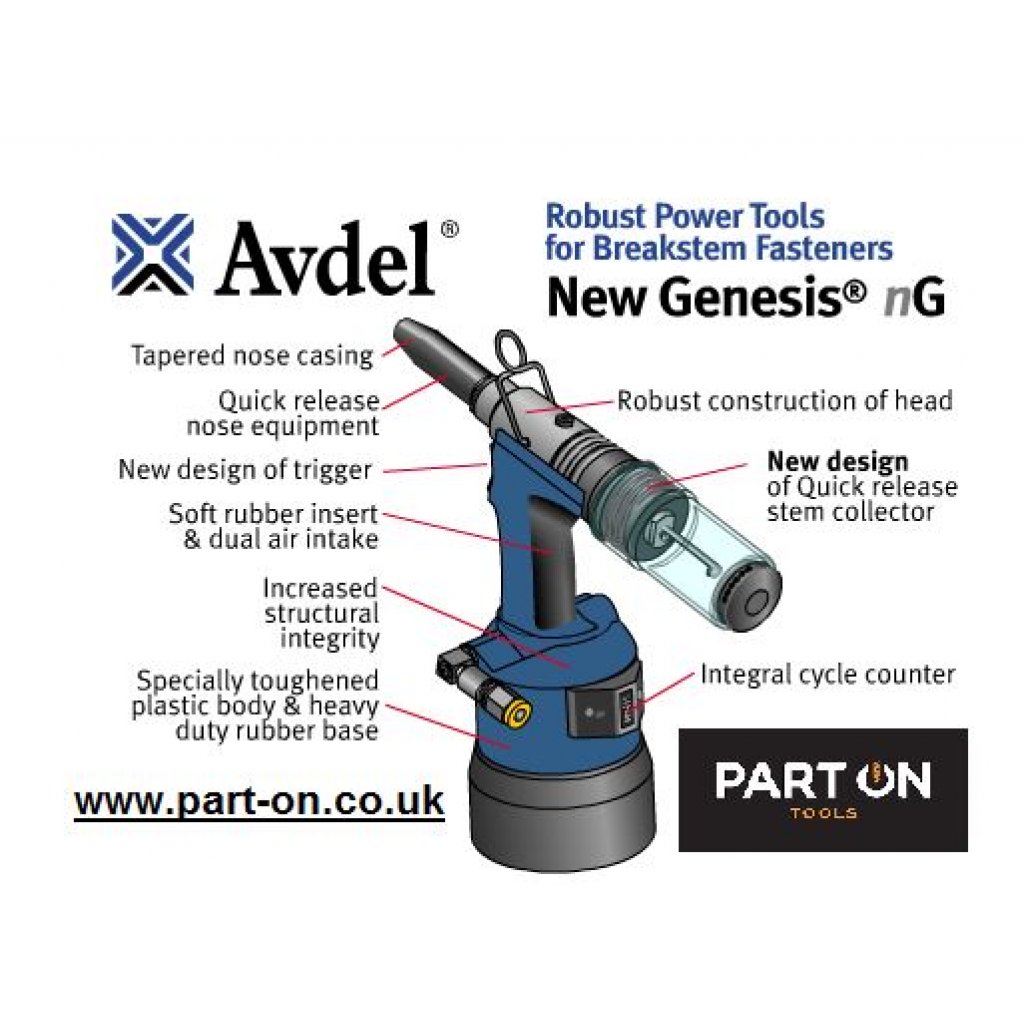

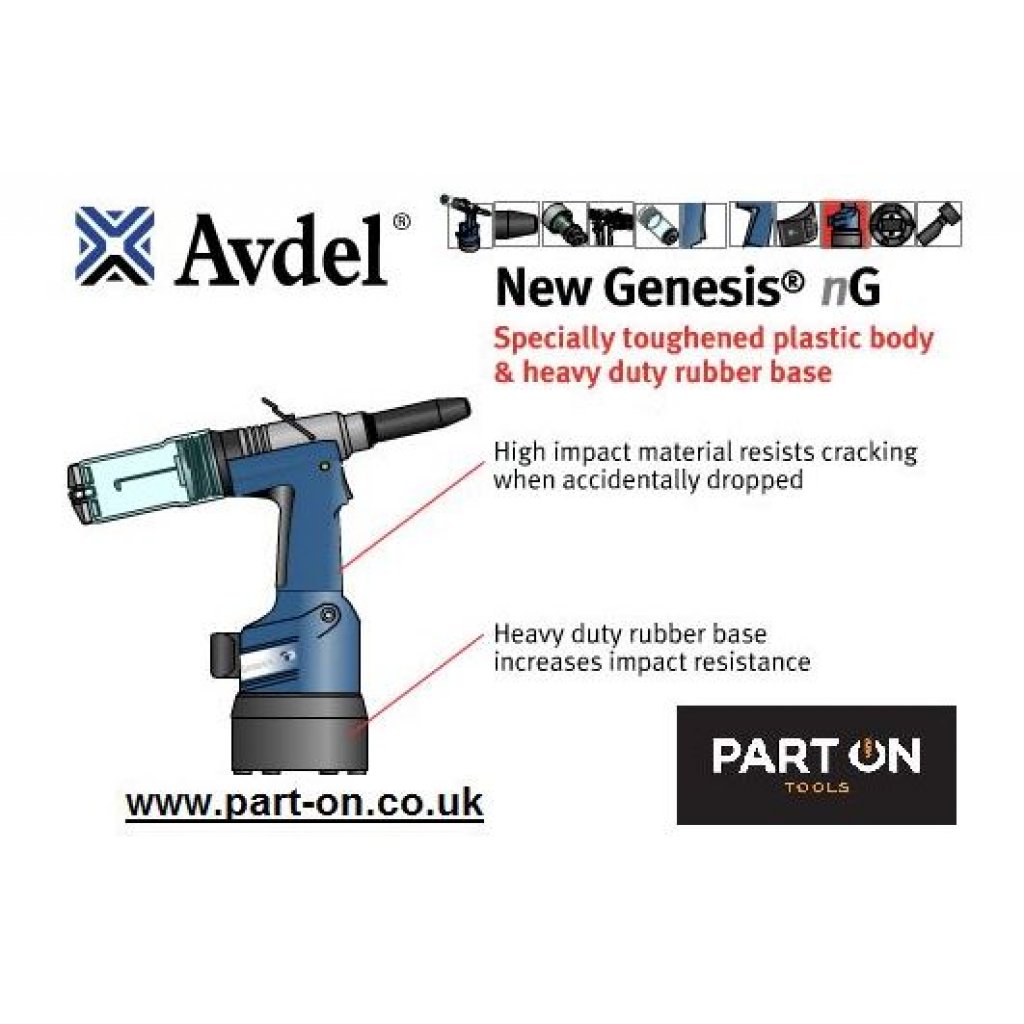

Avdel’s nG1 rivet tool is one of the lightest tools in the nGenesis range. Manufactured with a toughened plastic body and heavy duty rubber base to help with stability, the robust, durable  nG1 rivet tool offers a fast cycle time and the ability to install a variety of rivets up to 4.8 mm (3/16") aluminium breakstem rivets and up to 4.0 mm (5/32") steel breakstem rivets produced by Avdel®.  It is also capable of setting Avseal® II 4 and 5 mm sealing plugs. The quality of the nG1 rivet tool shines through with a soft to the touch rubber grip handle to help reduce operator fatigue & is Available with fixed or quick release stem collector bottle.

• Weight: (without nose equip.) 1.50 kg (3.31 lbs) | (min. with equip.) 1.70 kg (3.75 lbs)

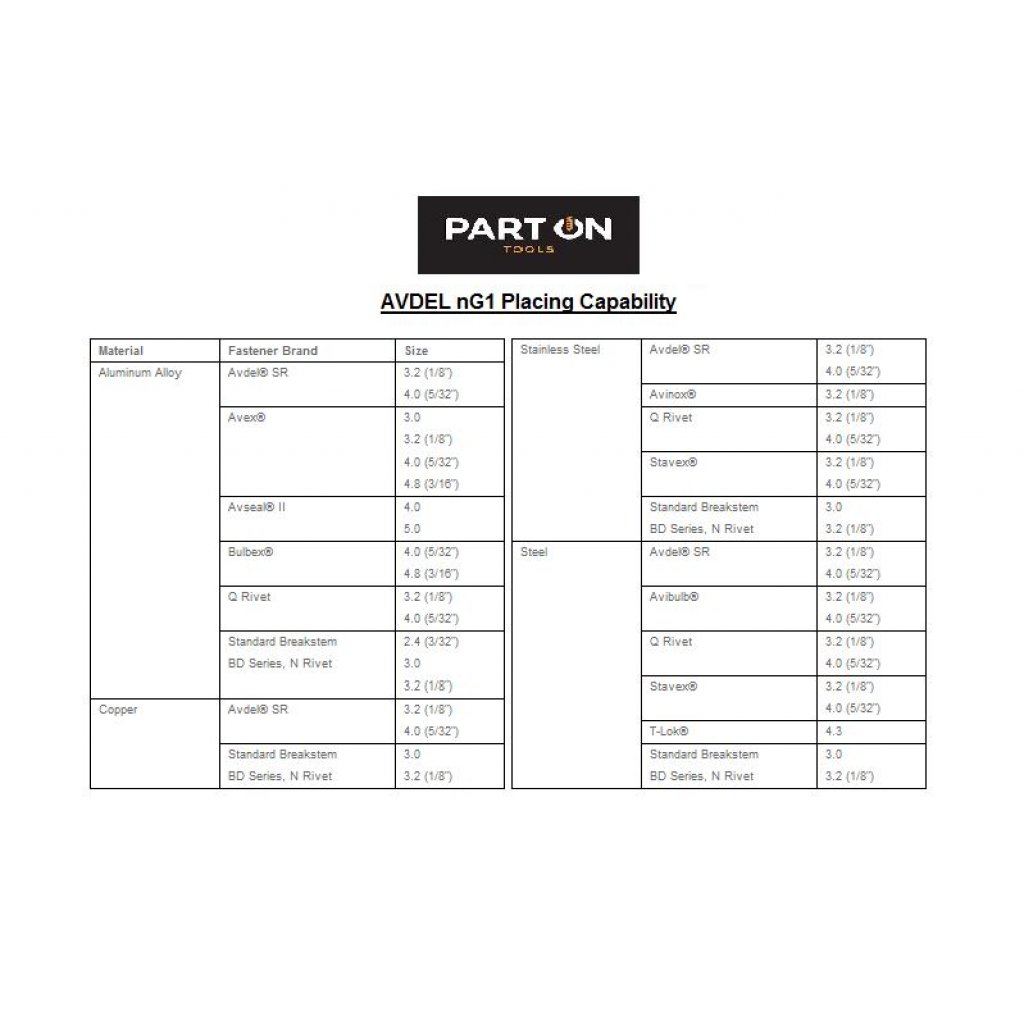

• Materials: Aluminium, Copper, Steel, Stainless steel, Coppernickle, Magna-Lok ®
• Sizes: 2.4mm – 6mm
• Pull force: @ 5.5 bar 6.0 kN (1350 lbf)
• Stroke: (min.) 14 mm (0.55 in)
• Cycle time: (approx.) 0.9 sec
• Air supply pressure:  5- 7 bar (80-100 psi)
• Free air volume: @ 5.5 bar  1.2 litres
• Noise level: <75 dB(A)
• Vibration: <2.5m/s² (8.2f ft/s2)

Benefits

• High placement speed
• Minimised air consumption

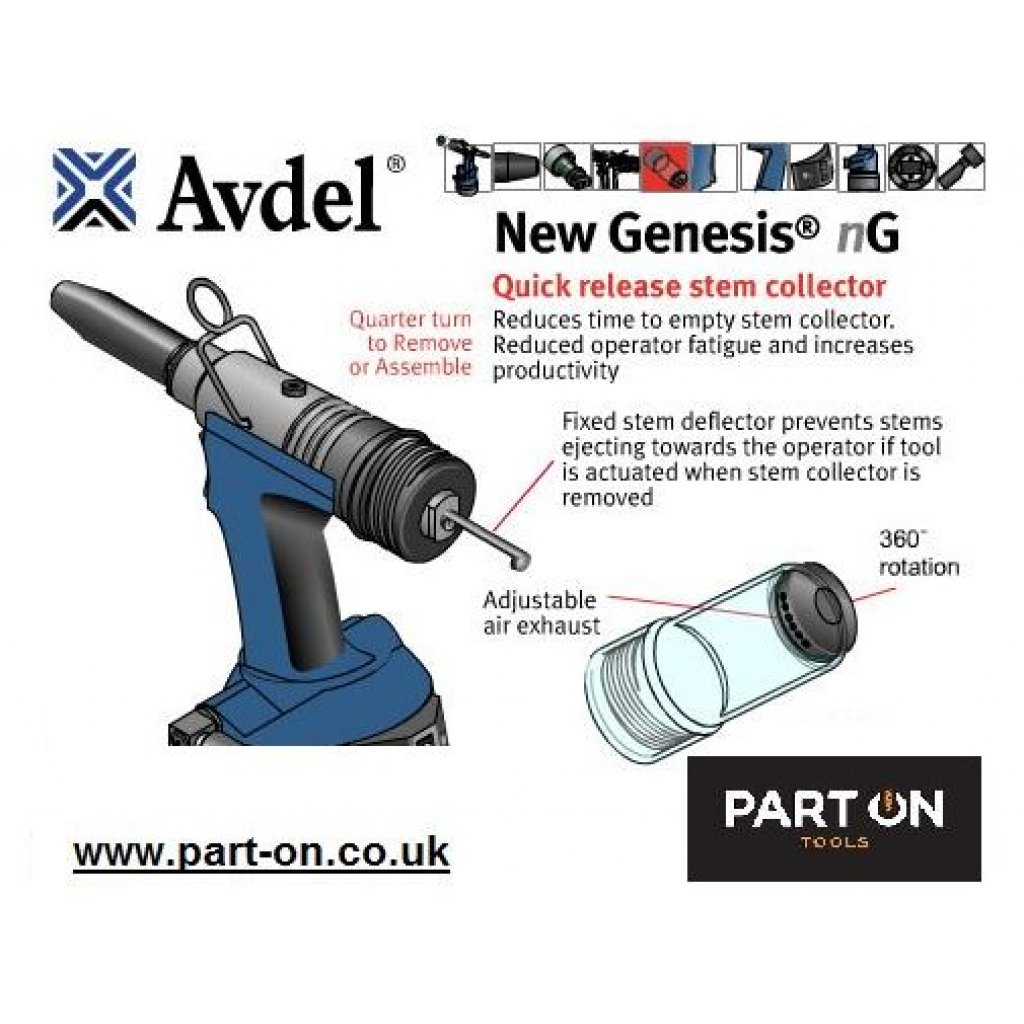

• Reduced time to empty stem collector
• Places a wide range of fasteners

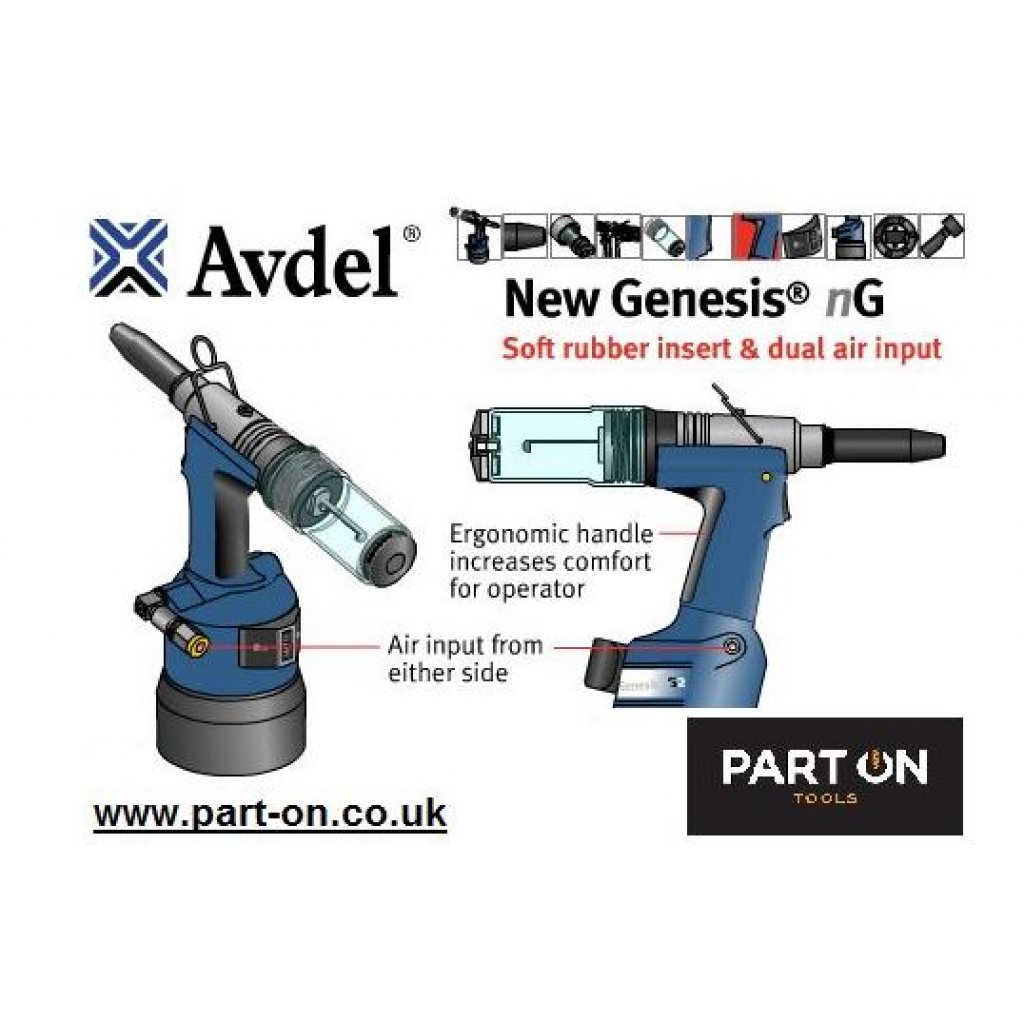

• Ergonomic
• New Genesis Suspension Kit

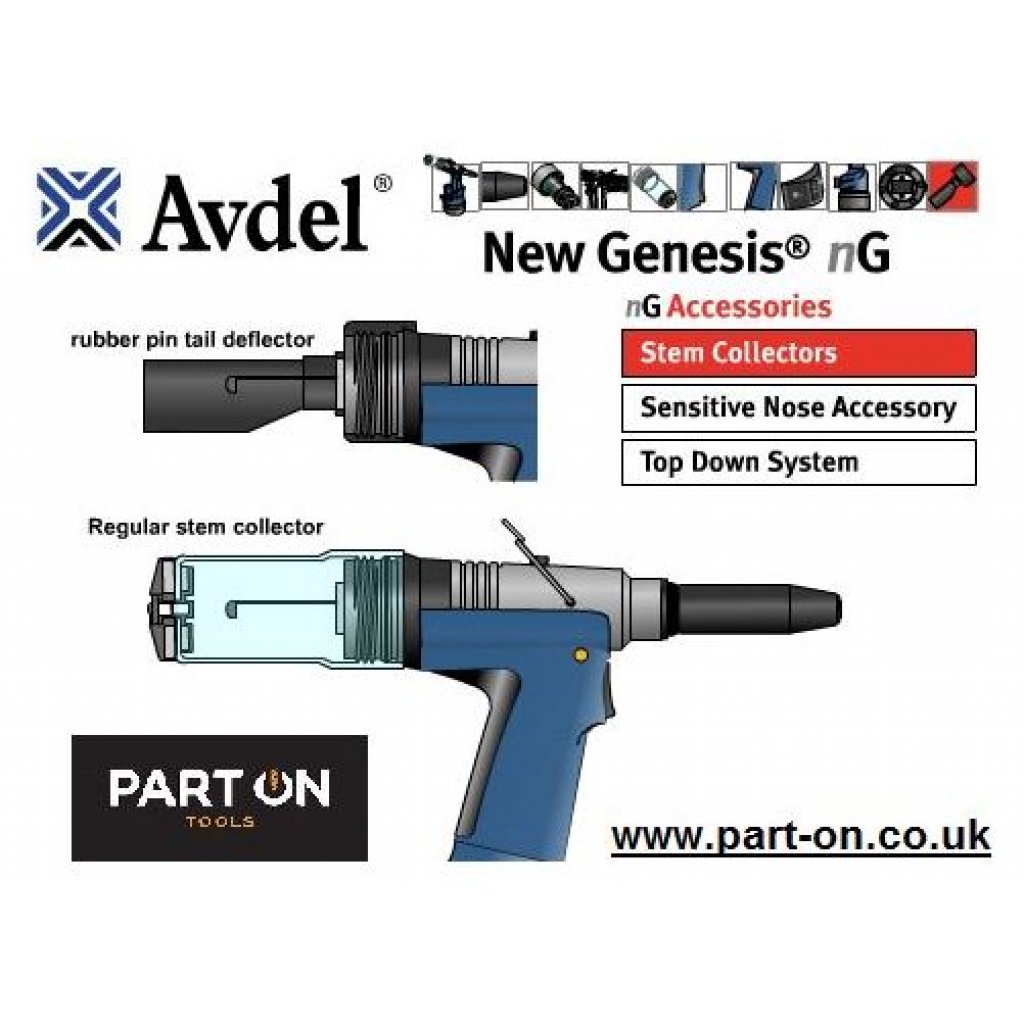

• Optional quick release or fixed stem collector bottle
• Adjustable vacuum airflow

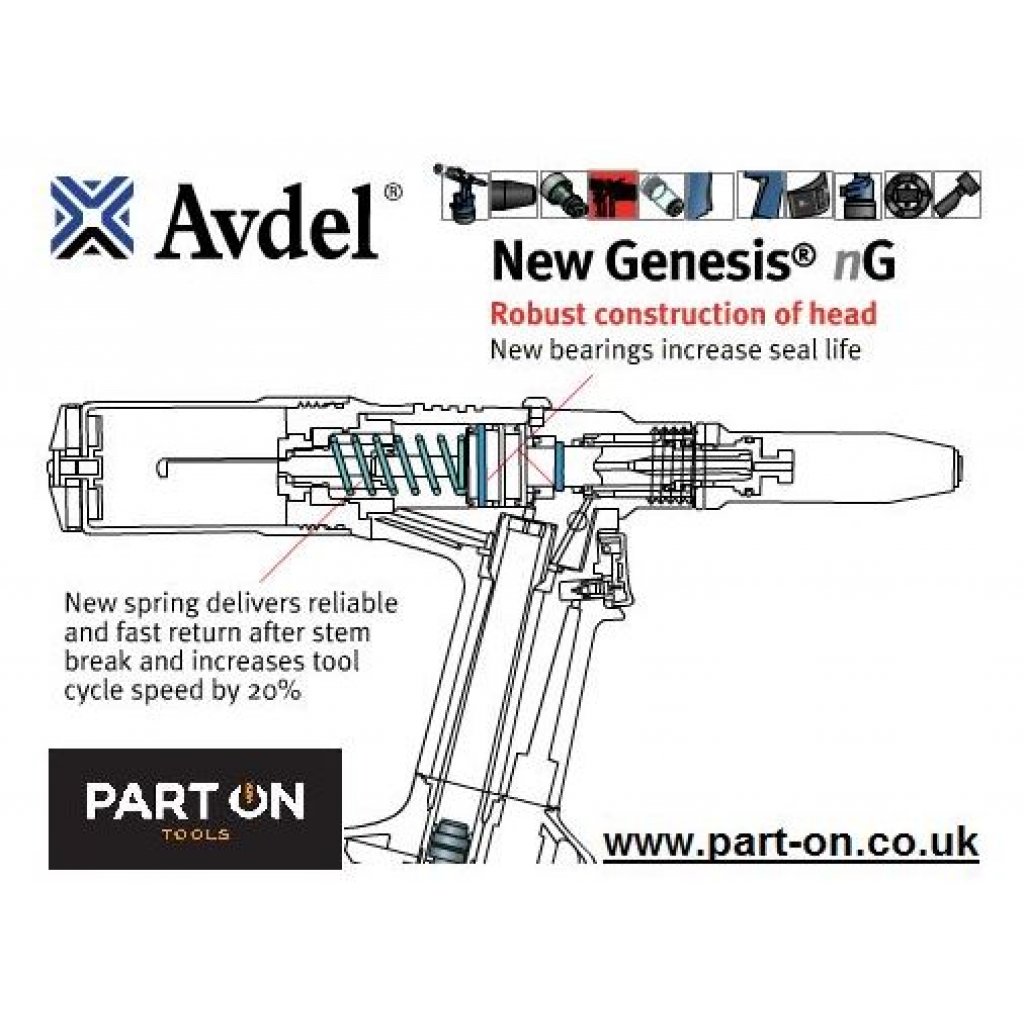

• Enhanced tool life

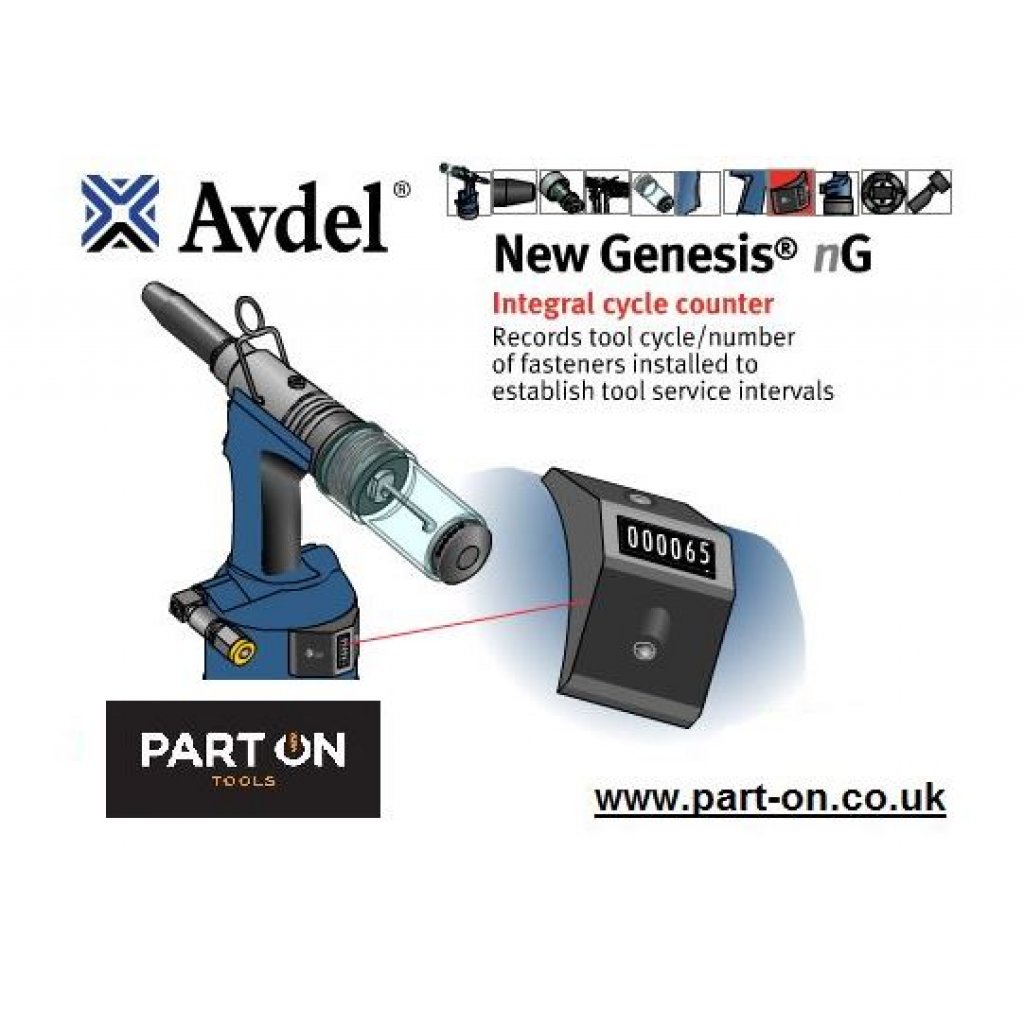

• Integral cycle counter (except nG1 & nG2-S)

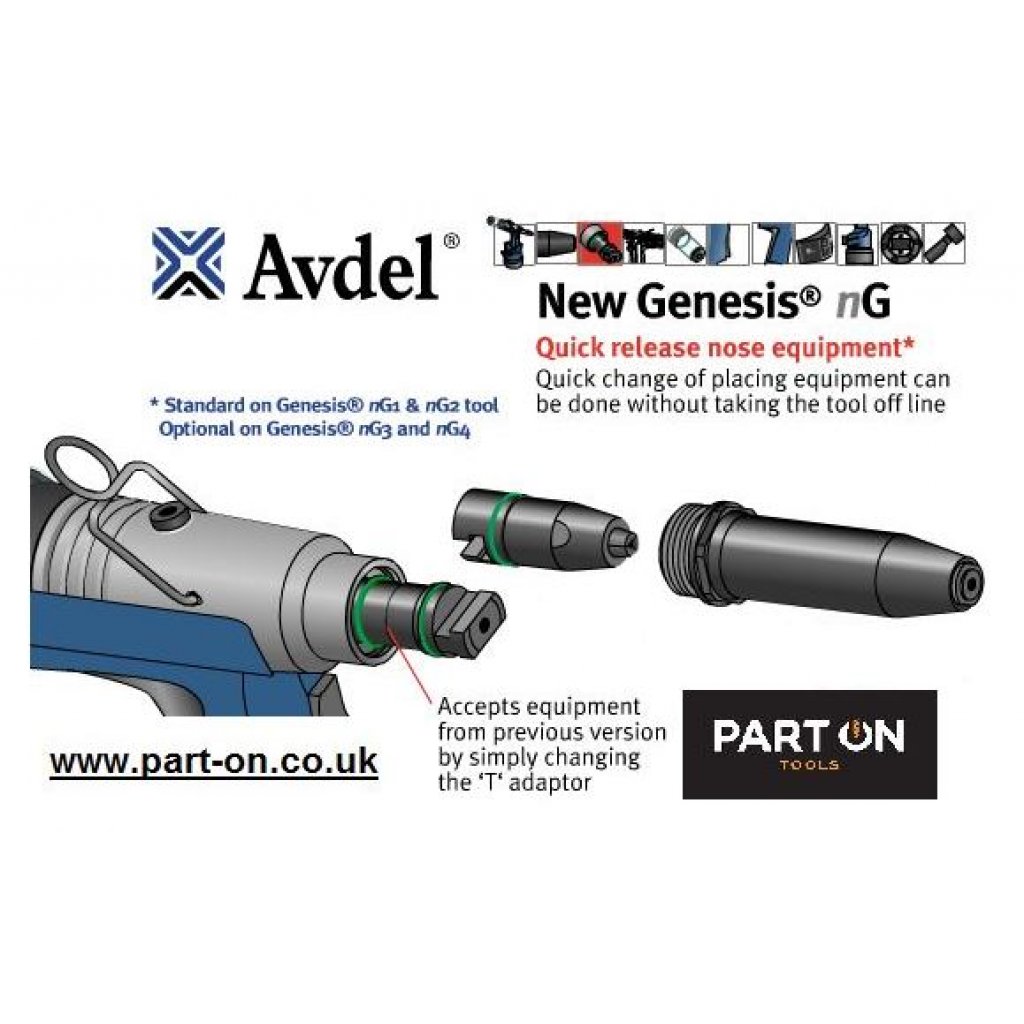

• nG1, nG2 and nG2-S feature a quick release nose equipment
