FAR KJ73 Air Rivet Nut Tool
M4 - M12

Model Number 700073   Part Number KJ73

FAR KJ73 | Air Rivet Nut Tool

Our extensive range of FAR Air Rivet Nut Tools Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production / Assembly Line
  • Stroke : 10mm
  • Maximum Force: 31667 N
  • M4 - M12 Setting Capacity
  • Nose Assembly's Included
  • Capable Of Setting Rivet Stud Bolts
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Write a review

This product is currently in stock

was £3,000.00

£1,650.00 ex. vat

£1980.00 inc. vat

Buy Now

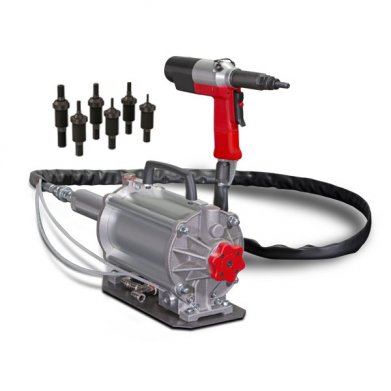

FAR KJ73 Air Rivet Nut Tool

Features

The KJ73 Hydropneumatic Rivet nut tool is a pneumatic tool perfect for assembly / production lines, the pistol is lightweight due to the intenifer and pistol being seperate .

The Far KJ73 rivet nut tool is considered to be an industry standard rivet nut tool, with the ability to set rivet nuts from M4 all the way through to M12 in steel, stainless steel and aluminium easily and without fuss.

If you are looking for a strong dependable competitively priced rivet nut tool, which comes complete with all mandrels and nosepieces , the Far KJ73 rivet nut tool is amongst the most reliable rivet nut tools available anywhere today!

The simple operation of this tool makes for an excellent choice in any high volume production environment

    •  Simple Operation
    • Front Facing Air Inlets On Swivel Attachments
    •  Push Spin On
    • Trigger Operated Stroke
    • Automatic Spin Off
    • Quick Action Stroke Adjustment For Increased/Decreased Grip Range
    • Quick Change Mandrel & Nose Piece Action

Benefits

      • Lightweight, Fast Operation
      • Ideal For High Volume Production
      • Tool Features Automatic Spin On Feature
      • Tool Features Automatic Spin Off Feature
      • Stroke 10mm
      • Maximum Force: 31667 N
      • M4 - M12 Setting Capacity
      • Nose Assembly's Included
      • Capable Of Setting Rivet Stud Bolts
      • Supplied With One Year's Manufacture Warranty
      • Part-on Can Service & Provide Spare Parts For This Tool



Do you require a tool repair / service? Click Here!



Setting Capacity (Rivet Nuts)

Rivet Nut TypeAluminiumSteelStainless SteelNose Assembly Included
M4
M5
M6
M8
M10
M12

Setting Capacity (Rivet Stud Bolts)

Rivet Bolt TypeSteel
M5
M6
M8

FAR KJ73 Air Rivet Nut Tool

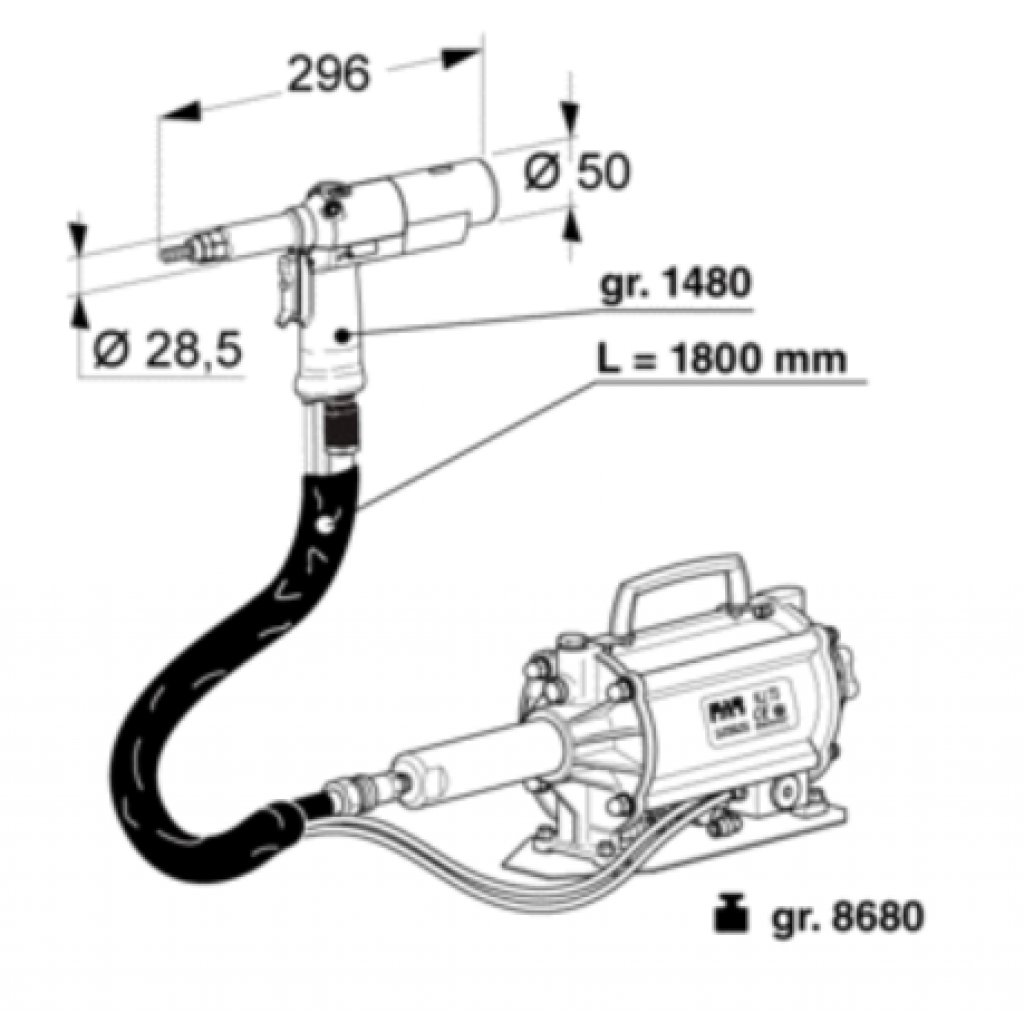

SpecificationFAR KJ73
Brand FAR
Model KJ73
Part Number 700073
Type Air Rivet Nut Tool
Operating Mode Compressed Air
Setting Capacity M4 - M12
Stroke (Adjustable) 10mm
Maximum Force 31667 N
Spin On Automatic
Spin Off Automatic
Sets Rivet Stud Bolts Yes
Operating Air Pressure 6 BAR
Pistol Weight 1.48kg
Total Weight 8.68kg
Tubular Length 1800mm
Warranty One Year
Contents FAR KJ73 Tool | Supplied With Nose Assembly's and intensifier
