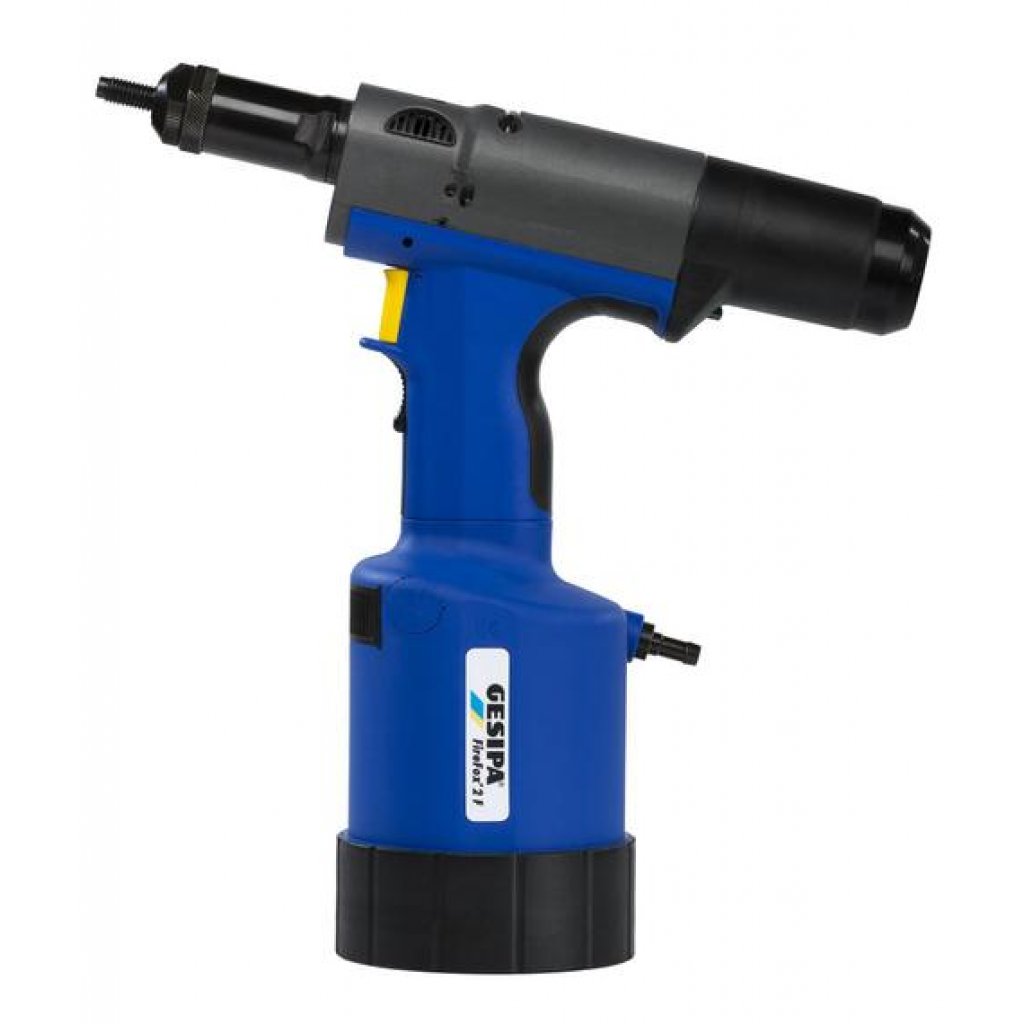

The Gesipa Firefox 2FL Air Rivet Nut Tool is used to fasten blind rivet nuts in a wide range of materials including Aluminium, Steel & Stainless Steel.
This Firefox is capable of setting Rivet Stud Bolts. These nose assemblys are not supplied with the tool but are avaliable upon request.
As a version of the Firefox 2F the Firefox 2FL has been speially designed for setting blind rivet nuts with a left handed thread
The easier-to-handle little brother of the FireFox® has been developed to allow even smaller blind rivet nuts to be set optimally and without damaging the materials to be joined. The FireFox® 2 F is controlled exclusively by setting the setting power. The thread of the blind rivet nut is perfectly protected and the blind rivet nut is anchored securing in the material being joined. Thanks to the modular system, the FireFox® 2 F has the same ergonomic design, low-fatigue working and familiar reliability of GESIPA® processing devices as its big brother. The stability has been optimised using a new rubber base.
Do you require a tool repair / service? Click Here!
Setting Capacity (Rivet Nuts)
|Rivet Nut Type||Aluminium||Steel||Stainless Steel||Nose Assembly Included|
Setting Capacity (Rivet Stud Bolts)
|Rivet Bolt Type||Steel||Nose Assembly Included|
|Specification||Gesipa Firefox 2FL|
|Type||Air Rivet Nut Tool|
|Operating Mode||Compressed Air|
|Setting Capacity||M3 - M12|
|Stroke||(Adjustable) Max 10.0mm|
|Traction Power||(Adjustable) Max 22.000 kN|
|Sets Rivet Stud Bolts||Yes|
|Operating Air Pressure||5 - 7 BAR|
|Contents||Gesipa Firefox 2FL Tool & Chosen Set Up|
Most blind rivet nut setting devices are stroke controlled, while only a few are setting force controlled. The FireFox® from GESIPA® represents a new generation of blind rivet nut setting device: simply, quickly and safely.
Reasons To Buy A Firefox ?
The innovative one – Setting blind rivet nuts with traction force adjustment. This means that the tool will stop pulling the blind rivet nut when a pre-adjusted traction force threshold is reached. No re-adjustment is needed when setting blind rivet nuts into different material thicknesses or when using blind rivet nuts with different shaft lengths. Traction force control prevents damage of the material which cannot be overstressed by a too high setting pressure and preserves the integrity of the blind rivet nut thread. As a bonus, it also extends the life duration of thethreaded mandrels.
Fast and precise setting force adjustment with colour-coded setting ring. The required setting force is selected with a hexagon screwdriver directly on the tool.
The simple one – Easy operation through automatic drill-on function. The drill-on process will automatically start when a blind rivet nut is lightly pressed onto the mandrel tip. This avoids the cumbersome double action on twin triggers. Thereafter introduce the blind rivet nut into its setting hole, press the trigger and keep it pressed until the setting cycle is completely finished, nut drilled off and tool free. It couldn’t be easier!
The fast one – Extremely fast working cycle. Great care has been taken to shorten every sequence of the setting cycle to its absolute minimum: Pulling sequence and subsequent automatic drill-off take place at breathtaking speed and require only a single action on the trigger.
The versatile one – Sets blind rivet nuts from M3 to M12, also those with extended grip range. The wide range of suitable thread sizes provides the FireFox® 2 with a large variety of possible operation. The manual traction force control also makes it suitable for industrial applications where several material thicknesses need to be covered, which would normally require the use of several tools. Moreover, its outstanding 10 mm stroke is ideally suited to the new generation of large grip range blind rivet nuts, like the GESIPA®-PolyGrip® products.
