Masterfix NO8QI Air Rivet Nut Tool
M3 - M8

Model Number XGrip   Part Number N08QI

Masterfix N08QI | Air Rivet Nut Tool

Our extensive range of Masterfix Air Rivet Nut Tools Genuine Masterfix Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Automatic Spin Off Feature
  • Stroke (Adjustable) Max 9.0mm
  • Traction Power 21.000 kN
  • M3 - M8 Setting Capacity
  • Nose Assembly's Included
  • Capable Of Setting Rivet Stud Bolts
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

was £750.00

£577.50 ex. vat

£693.00 inc. vat

Buy Now

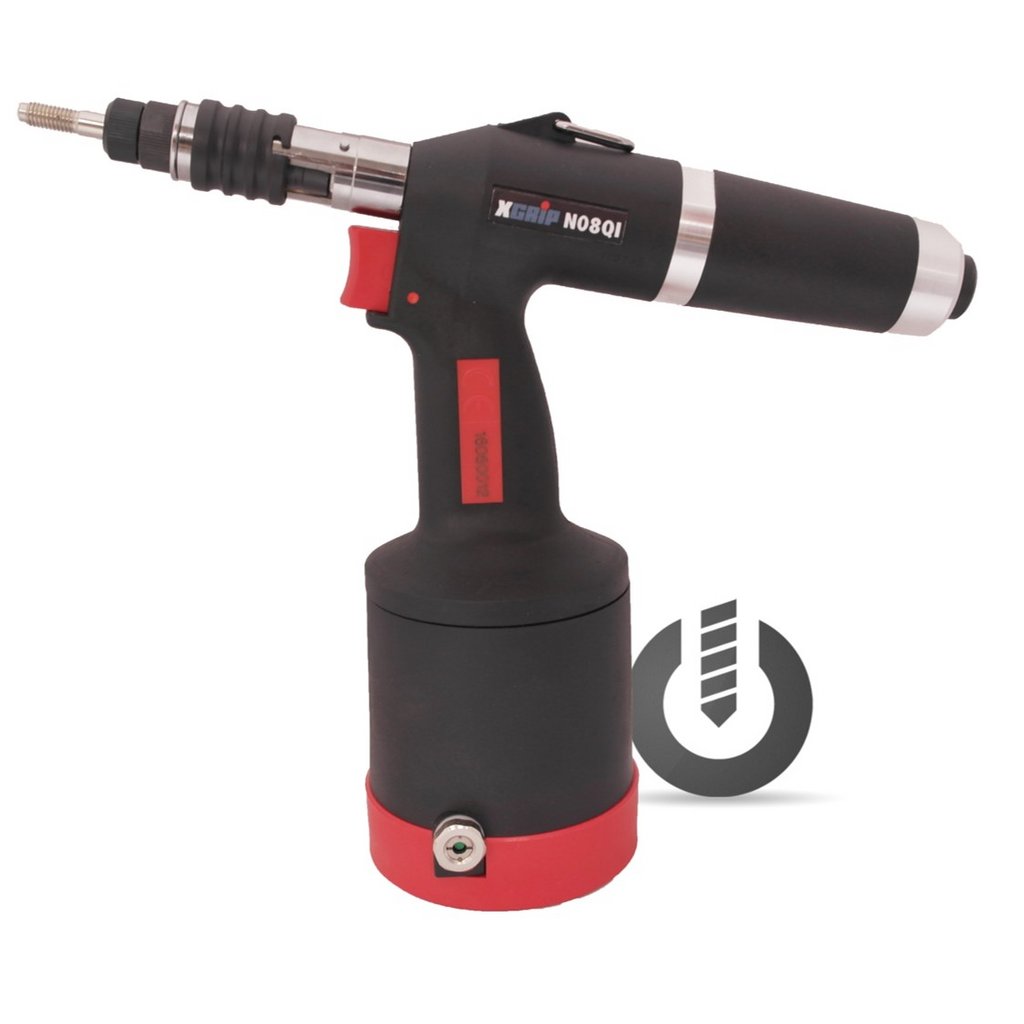

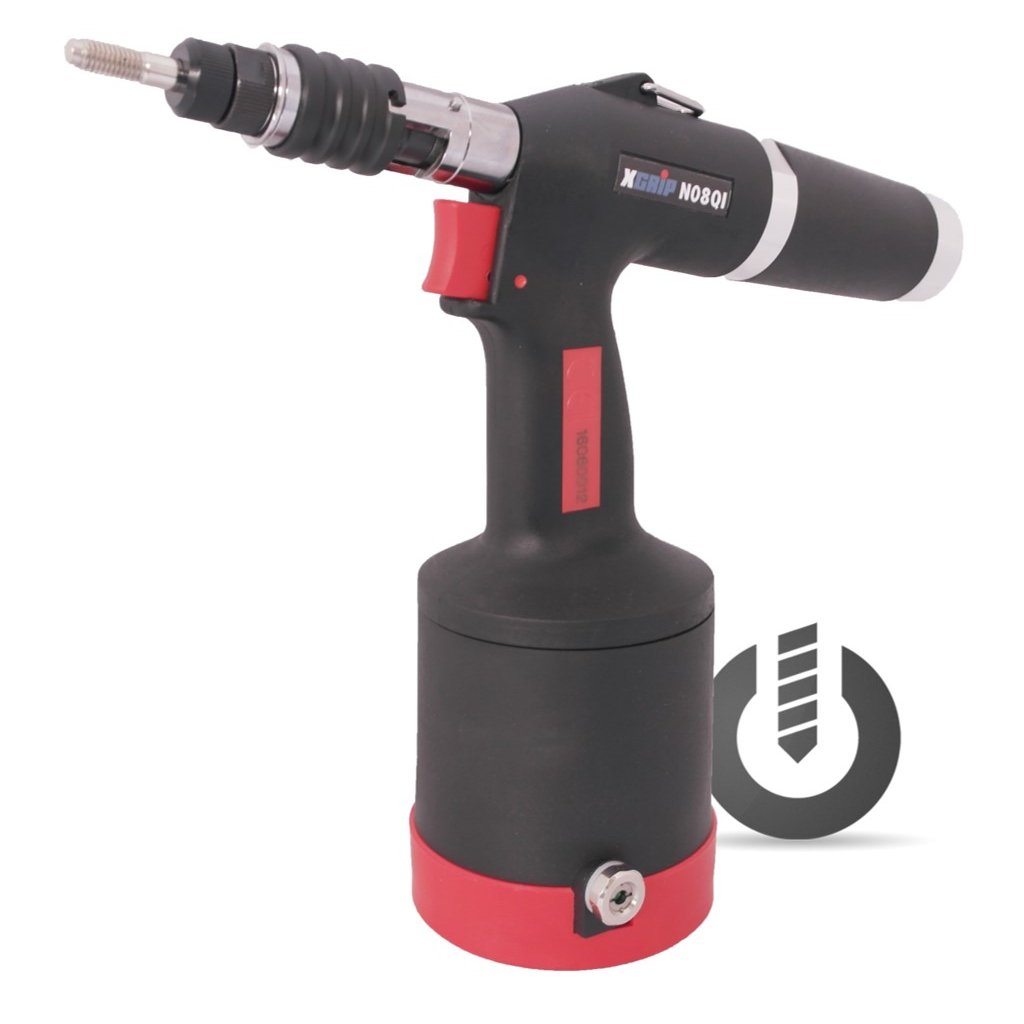

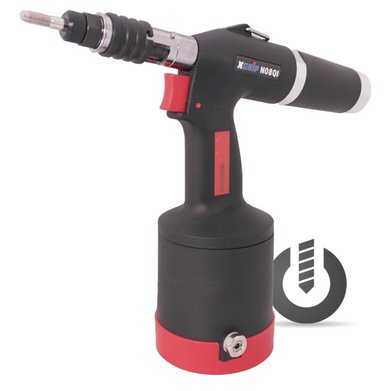

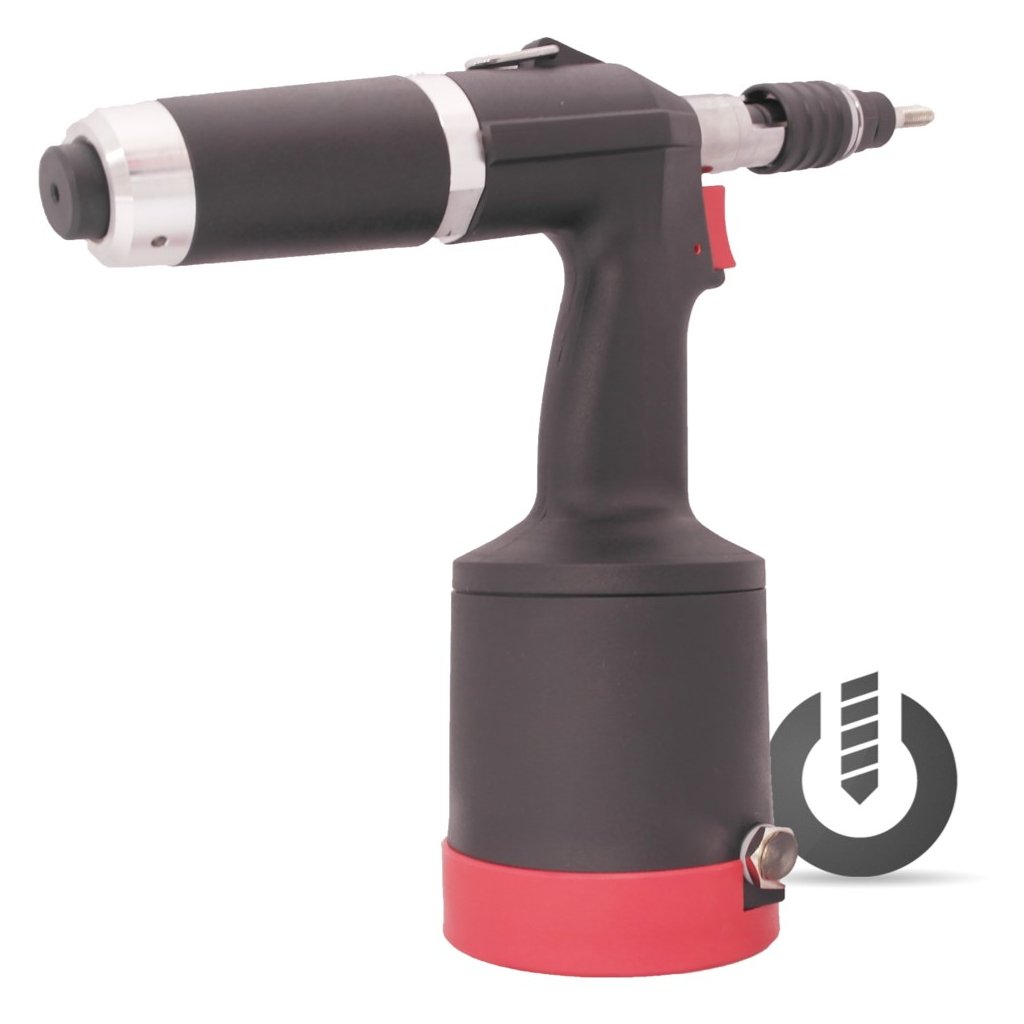

Masterfix N08QI Air Rivet Nut Tool

Features

The Masterfix N08QI is a rivet nut setting tool capable of setting a range of rivet nuts from M3 - M8 blind inserts and bolts. The Masterfix N08QI tool weighs 2.3kg making it a lightweight and operater freindly tool. The Masterfix N08QI is moulded in abs (A glass fibre reinforced synthetic material) which gives the tool a high impact resistance with minimim weight. The Masterfix N08QI is equiped with a pressure relif valve which is operated as soon as the pressure exceeds 7.5 bar. The N08QI also has an oil level indicator to show you when you need to refill the tool.

The simple operation of this tool makes for an excellent choice in any high volume production environment.

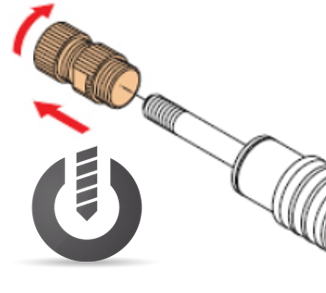

  • Equipped With Quick Interchange System: Without Any Instruments The Conversion Kits Can Be Changed
  • The Pressure Regulation System Ensures A Correct Setting Of The Insert/Bolt
  • Automatic Spin,On Trigger Stroke & Auto Reverse Running For Quick & Easy Setting
  • Single Trigger Action
  • Lightweight
  • Highly Reliable & Robust
  • M4 | M5 | M6 & M8 Nose Assemblys Supplied With Tool (M3 Nose Assembly Can Be Purchased Separately)
  • Air Hose & Fitting Supplied With Tool, "Can Be Plugged Straight In & Operated"

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Automatic Spin Off Feature
  • Stroke (Adjustable) Max 9.0mm
  • Traction Power 21.000 kN
  • M3 - M8 Setting Capacity
  • Nose Assembly's Included
  • Capable Of Setting Rivet Stud Bolts
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool

Setting Capacity (Rivet Nuts)

Rivet Nut TypeAluminiumSteelStainless SteelNose Assembly Included
M3
M4
M5
M6
M8
M10
M12

Setting Capacity (Rivet Stud Bolts)

Rivet Bolt TypeSteelNose Assembly Included
M3
M4
M5
M6
M8
M10
M12





Masterfix N08QI Air Rivet Nut Tool

SpecificationMasterfix N08QI
Brand Masterfix
Model N08QI
Part Number XGrip
Type Air Rivet Nut Tool
Operating Mode Compressed Air
Setting Capacity M3 - M8
Stroke (Adjustable) Max 9.0mm
Traction Power 21.000 kN
Spin On Automatic
Spin Off Automatic
Sets Rivet Stud Bolts Yes
Operating Air Pressure 5 - 7 BAR
Weight 2.30kg
Warranty One Year
Contents Masterfix N08QI Tool | Supplied With Nose Assembly's

Pressure Regulation System

The Tool stoke and air pressure can be adjusted by using the bellow tool dials this can enhance the N08QI's performance. The Air pressure is then displayed on the tool's dial reader.

Additional Genuine Masterfix N08QI Nose Assemblys Can Be Puchased Separately In Spare Parts

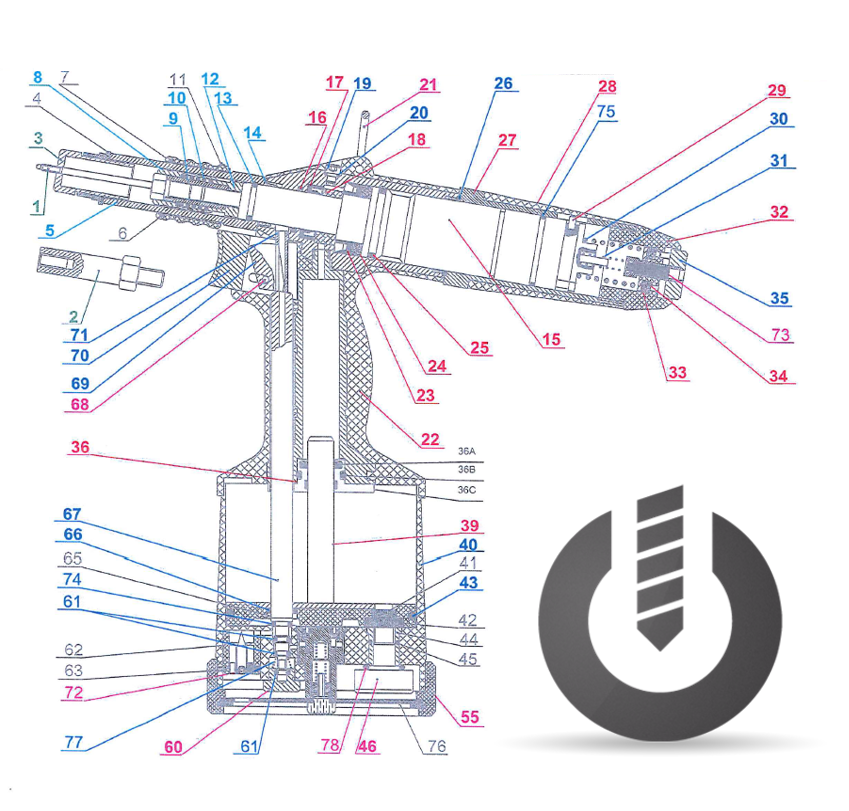

We Also Supply A Wide Range OF Genuine Masterfix N08QI Spare Parts

Part Number Product Title Price
0900A00007 0900A00007
M5 Mandrel | Tie Rod
Masterfix N08QI Part
£15.46 ex. vat Add to cart
0900A00008 0900A00008
M6 Mandrel | Tie Rod
Masterfix N08QI Part
£15.46 ex. vat Add to cart
0900A00009 0900A00009
M8 Mandrel | Tie Rod
Masterfix N08QI Part
£15.46 ex. vat Add to cart
0900A00038 0900A00038
M4 Mandrel | Tie Rod
Masterfix N08QI Part
£15.46 ex. vat Add to cart
0900A00160 0900A00160
M3 Mandrel | Tie Rod
Masterfix N08QI Part
£15.46 ex. vat Add to cart
