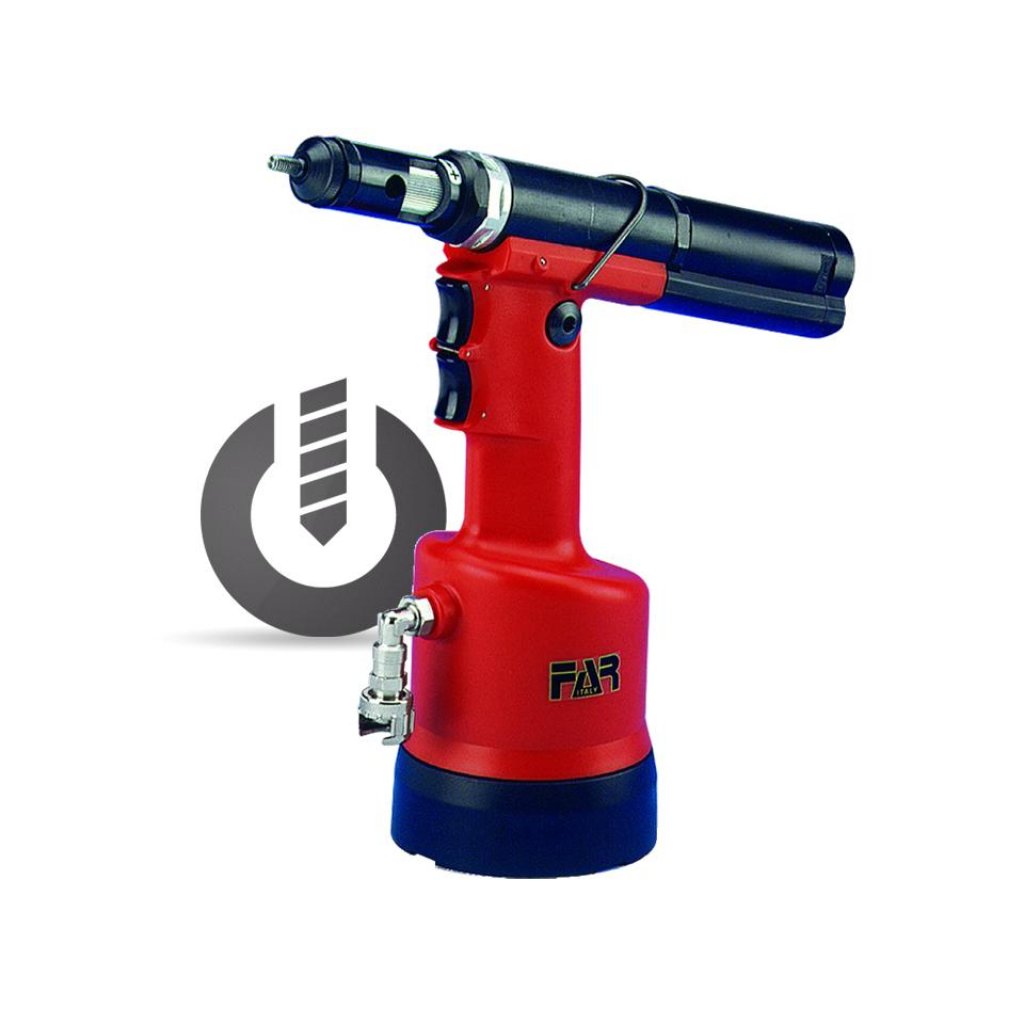

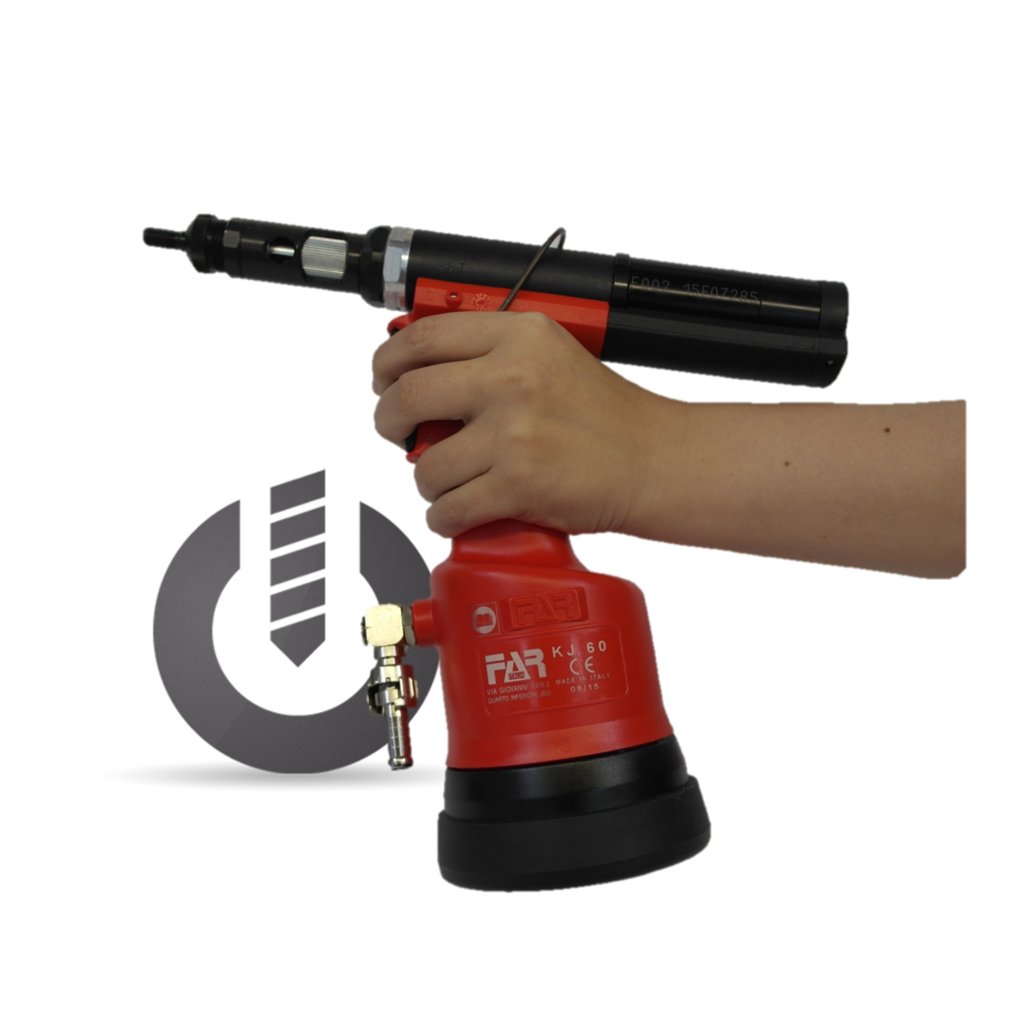

FAR KJ60 Air Rivet Nut Tool
M3 - M8

Model Number KJ60   Part Number 705034

FAR KJ60 | Air Rivet Nut Tool

Our extensive range of FAR Air Rivet Nut Tools Genuine FAR Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Triggered Spin Off Feature
  • Stroke (Adjustable) Max 7.5mm
  • Traction Power 13.656 kN
  • M3 - M8 Setting Capacity
  • Nose Assembly's Included
  • Capable Of Setting Rivet Stud Bolts
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool
Please refer to the Details & Tech Spec tab below for more information.

Write a review

This product is currently in stock

was £1,035.00

£679.00 ex. vat

£814.80 inc. vat

Buy Now

FAR KJ60 Air Rivet Nut Tool






Features

The KJ60 Rivet nut tool from FAR is a pneumatic tool perfect for any manufacturing environment.

This tool offers a two trigger set up, with an automatic spin on setting when pressure is applied to the end of the mandrel. Setting of the threaded insert is made when the top trigger is pressed and Spin off when the Bottom trigger is pressed.

The Far KJ60 rivet nut tool is considered to be an industry standard rivet nut tool, with the ability to set rivet nuts from M3 all the way through to M8 in steel, stainless steel and aluminium easily and without fuss.

If you are looking for a strong dependable competitively priced rivet nut tool, which comes complete with all mandrels and nosepieces in a handy storage and carry case the Far KJ60 rivet nut tool is amongst the most competitively priced, reliable rivet nut tools available anywhere today!

The simple operation of this tool makes for an excellent choice in any high volume production environment.

  •  Simple Operation
  •  Push Spin On
  •  Trigger Operated Stroke
  •  Trigger Operated Spin Off
  •  Quick Action Stroke Adjustment For Increased/Decreased Grip Range
  •  Quick Change Mandrel & Nose Piece Action

Benefits

  • Lightweight, Fast Operation
  • Ideal For High Volume Production
  • Tool Features Automatic Spin On Feature
  • Tool Features Triggered Spin Off Feature
  • Stroke (Adjustable) Max 7.5mm
  • Traction Power 13.656 kN
  • M3 - M8 Setting Capacity
  • Nose Assembly's Included
  • Capable Of Setting Rivet Stud Bolts
  • Supplied With One Year's Manufacture Warranty
  • Part-on Can Service & Provide Spare Parts For This Tool



Do you require a tool repair / service? Click Here!




Setting Capacity (Rivet Nuts)

Rivet Nut TypeAluminiumSteelStainless SteelNose Assembly Included
M3
M4
M5
M6
M8
M10
M12

Setting Capacity (Rivet Stud Bolts)

Rivet Bolt TypeSteelNose Assembly Included
M3
M4
M5
M6
M8
M10
M12



Do you require a tool repair / service? Click Here!



FAR KJ60 Air Rivet Nut Tool

SpecificationFAR KJ60
Brand FAR
Model KJ60
Part Number 705034
Type Air Rivet Nut Tool
Operating Mode Compressed Air
Setting Capacity M3 - M8
Stroke (Adjustable) Max 7.5mm
Traction Power 13.656 kN
Spin On Automatic
Spin Off Trigger Operated
Sets Rivet Stud Bolts Yes
Operating Air Pressure 6 BAR
Weight 2.13kg
Warranty One Year

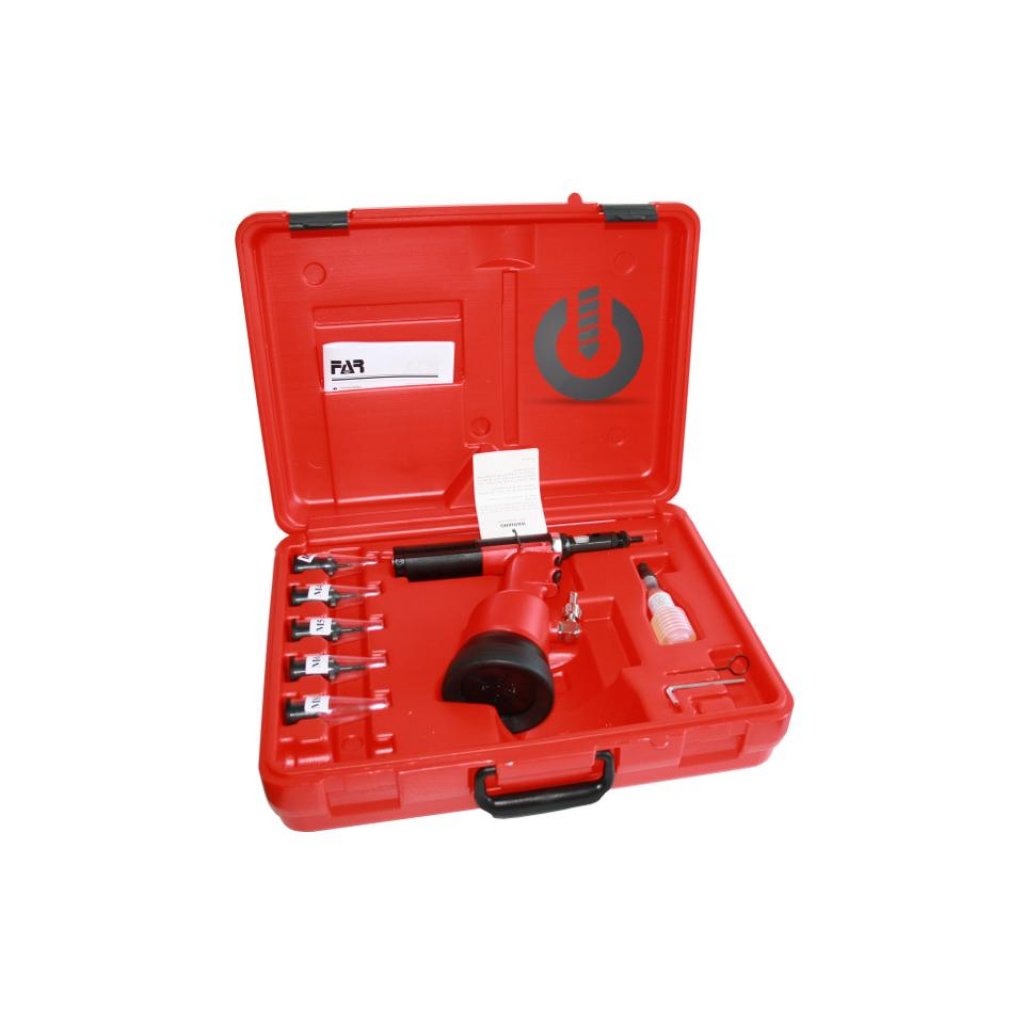

Contents FAR KJ60 Tool | Supplied In Carry Case With Nose Assembly's
Part Number Product Title Price
710003 710003
O Ring
FAR KJ60 Part
Seal
£1.05 ex. vat Add to cart
710258 710258
O Ring
FAR KJ60 Part
5-612 P
£1.05 ex. vat Add to cart
710342 710342
O Ring
FAR KJ60 Part
2-17 P
£1.05 ex. vat Add to cart
710367 710367
O Ring
FAR KJ60 Part
2-8 P
£1.05 ex. vat Add to cart
710376 710376
O Ring
FAR KJ60 Part
2-9 P
£1.05 ex. vat Add to cart
710483 710483 - FAR K1 Principal Lever £9.16 ex. vat Add to cart
710594 710594
O Ring
FAR KJ60 Part
2-12 P
£1.05 ex. vat Add to cart
710839 710839
Oil Tank Plug
FAR KJ60 Part
£2.73 ex. vat Add to cart
710854 710854
Balancer Hook
FAR KJ60 Part
£2.64 ex. vat Add to cart
710876 710876
Pin Disengagement Tie Rod FAR KJ60 Part
£2.73 ex. vat Add to cart
710902 710902
Seeger Ring
FAR KJ60 Part
E16
£1.05 ex. vat Add to cart
710906 710906
Washer
FAR KJ60 Part
£1.64 ex. vat Add to cart
710911 710911
Motor Cap Cover Ball
FAR KJ60 Part
End Motor Cap Cover
£1.05 ex. vat Add to cart
710918 710918
O Ring
FAR KJ60 Part
2-5 P
£1.05 ex. vat Add to cart
710919 710919
O Ring
FAR KJ60 Part
2-4 P
£1.05 ex. vat Add to cart
711061 711061
O Ring
FAR KJ60 Part
5-614 P
£1.05 ex. vat Add to cart
711092 711092
Key
FAR KJ60 Part
£1.09 ex. vat Add to cart
711684 711684 - FAR KJ60 Cylinder Bottom Plate | Item 3 £6.30 ex. vat Add to cart
711691 711691
Silencer
FAR KJ60 Part
£1.05 ex. vat Add to cart
711692 711692 - FAR KJ60 Screw TE M7 x 18 | Item 9 £1.73 ex. vat Add to cart
711694 711694
Lower Coil
FAR KJ60 Part
£1.05 ex. vat Add to cart
711695 711695 - FAR KJ60 Threaded Sleeve | Item 12 £5.73 ex. vat Add to cart
711700 711700 - FAR KJ60 Upper Coil | Item 14 £2.87 ex. vat Add to cart
711701 711701 - FAR KJ60 Upper Valve Body | Item 15 £6.87 ex. vat Add to cart
711703 711703 - FAR KJ60 Valve Body | Item 17 £2.87 ex. vat Add to cart
711721 711721
Balsele Seal Neo
FAR KJ60 Part
£13.45 ex. vat Add to cart
711722 711722
Balsele Seal Neo
FAR KJ60 Part
£10.81 ex. vat Add to cart
711728 711728
O Ring
FAR KJ60 Part
2-16 P
£1.05 ex. vat Add to cart
711730 711730
O Ring
FAR KJ60 Part
2-119 P
£1.09 ex. vat Add to cart
711731 711731
O Ring
FAR KJ60 Part
2-18 P
£1.09 ex. vat Add to cart
711732 711732
O Ring
FAR KJ60 Part
2-118 P
£1.09 ex. vat Add to cart
711734 711734
O Ring
FAR KJ60 Part
2-232 P
£3.37 ex. vat Add to cart
711735 711735
O Ring
FAR KJ60 Part
2-40 P
£3.37 ex. vat Add to cart
711780 711780
Connector
FAR KJ60 Part
£13.63 ex. vat Add to cart
711781 711781 - FAR KJ60 Rod | Item 7 £36.44 ex. vat Add to cart
711782 711782
Dampener
FAR KJ60 Part
£2.18 ex. vat Add to cart
711783 711783
Motor Cover
FAR KJ60 Part
£3.82 ex. vat Add to cart
711785 711785
Motor Protection
FAR KJ60 Part
Covor Sector
£4.91 ex. vat Add to cart
711790 711790
Piston Return Spring
FAR KJ60 Part
£2.00 ex. vat Add to cart
711791 711791
Ball Locking Spring
FAR KJ60 Part
£1.09 ex. vat Add to cart
711796 711796
Shaft
FAR KJ60 Part
£21.62 ex. vat Add to cart
711797 711797
Milled Sleeve
FAR KJ60 Part
£32.43 ex. vat Add to cart
711801 711801
Head Carrying Rod
FAR KJ60 Part
Tie Rod
£17.35 ex. vat Add to cart
711803 711803
Head Ring Nut
FAR KJ60 Part
£2.93 ex. vat Add to cart
711805 711805
M3 Head
FAR KJ60 Part
Nose Piece
£8.18 ex. vat Add to cart
711806 711806
M4 Head
FAR KJ60 Part
Nose Piece
£8.18 ex. vat Add to cart
711807 711807
M5 Head
FAR KJ60 Part
Nose Piece
£8.18 ex. vat Add to cart
711808 711808
M6 Head
FAR KJ60 Part
Nose Piece
£8.18 ex. vat Add to cart
711809 711809
M8 Head
FAR KJ60 Part
Nosepiece
£8.18 ex. vat Add to cart
711810 711810
M3 Mandrel | Tie Rod
FAR KJ60 Part
£10.77 ex. vat Add to cart
711811 711811
M4 Mandrel | Tie Rod
FAR KJ60 Part
£10.77 ex. vat Add to cart
711812 711812
M5 Mandrel | Tie Rod
FAR KJ60 Part
£10.77 ex. vat Add to cart
711813 711813
M6 Mandrel | Tie Rod
FAR KJ60 Part
£10.77 ex. vat Add to cart
711814 711814
M8 Mandrel | Tie Rod
FAR KJ60 Part
£10.77 ex. vat Add to cart
711817 711817
Seeger Ring
FAR KJ60 Part
£1.05 ex. vat Add to cart
711818 711818
Seeger Ring
FAR KJ60 Part
SW
£1.05 ex. vat Add to cart
711819 711819
Balsele Seal
FAR KJ60 Part
£10.81 ex. vat Add to cart
711820 711820
Gasket Seal
FAR KJ60 Part
£4.91 ex. vat Add to cart
711821 711821
Seeger Ring
FAR KJ60 Part
Jv
£1.05 ex. vat Add to cart
711834 711834
Foam Silencer
FAR KJ60 Part
£1.09 ex. vat Add to cart
711917 711917
Parbak
FAR KJ60 Part
£2.18 ex. vat Add to cart
712037 712037
Inox Filter
FAR KJ60 Part
£3.37 ex. vat Add to cart
712132 712132
Rotating Connector
FAR KJ60 Part
£6.36 ex. vat Add to cart
712153 712153
Rod Locking Spring
FAR KJ60 Part
£1.09 ex. vat Add to cart
712269 712269 - FAR KJ60 Body Cover | Item 2 £10.21 ex. vat Add to cart
712270 712270
Rod
FAR KJ60 Part
£8.72 ex. vat Add to cart
712670 712670
Clutch
FAR KJ60 Part
£21.26 ex. vat Add to cart
713161 713161
M5 Rivet Bolt Mandrel FAR KJ60
Stud Tie Rod
£21.26 ex. vat Add to cart
713162 713162
M5 Rivet Bolt Head FAR KJ60 Part
Stud Nose Piece
£22.62 ex. vat Add to cart
713439 713439
M6 Rivet Bolt Head
FAR KJ60 Part
Stud Nose Piece
£22.62 ex. vat Add to cart
713440 713440
M6 Rivet Bolt Mandrel FAR KJ60 Part
Stud Tie Rod
£21.27 ex. vat Add to cart
713441 713441
M8 Rivet Bolt Head
FAR KJ60 Part
Stud Nose Piece
£22.62 ex. vat Add to cart
713442 713442
M8 Rivet Bolt Mandrel FAR KJ60 Part
Stud Tie Rod
£21.26 ex. vat Add to cart
721387 721387
Priming Pump
FAR KJ60 Part
Oil Container Priming Lamp
£11.77 ex. vat Add to cart
721685. 721685 - FAR KJ60 Pneumatic Piston | Item 4 £29.26 ex. vat Add to cart
721689 721689 - FAR KJ60 Oil-Dynamic Cylinder | Item 6 £118.51 ex. vat Add to cart
721698 721698 - FAR KJ60 Valve Body | Item 13 £17.90 ex. vat Add to cart
721779/ 721779 - FAR KJ60 Riveting Tool Body | Item 1 £135.51 ex. vat Add to cart
741702 741702
Plate Kit
FAR KJ60 Part
£1.79 ex. vat Add to cart
741705 741705
Push Button Kit
FAR KJ60 Part
£3.49 ex. vat Add to cart
741792 741792
Ball Bushing Kit
FAR KJ60 Part
£6.40 ex. vat Add to cart
741802 741802
Tie Rod Clutch Kit
FAR KJ60 Part
£10.73 ex. vat Add to cart
