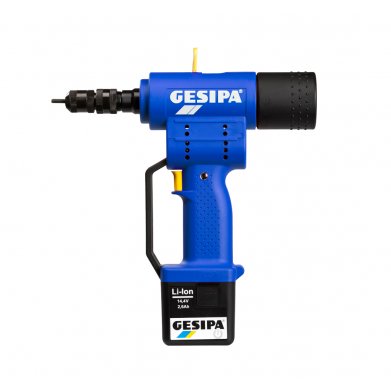

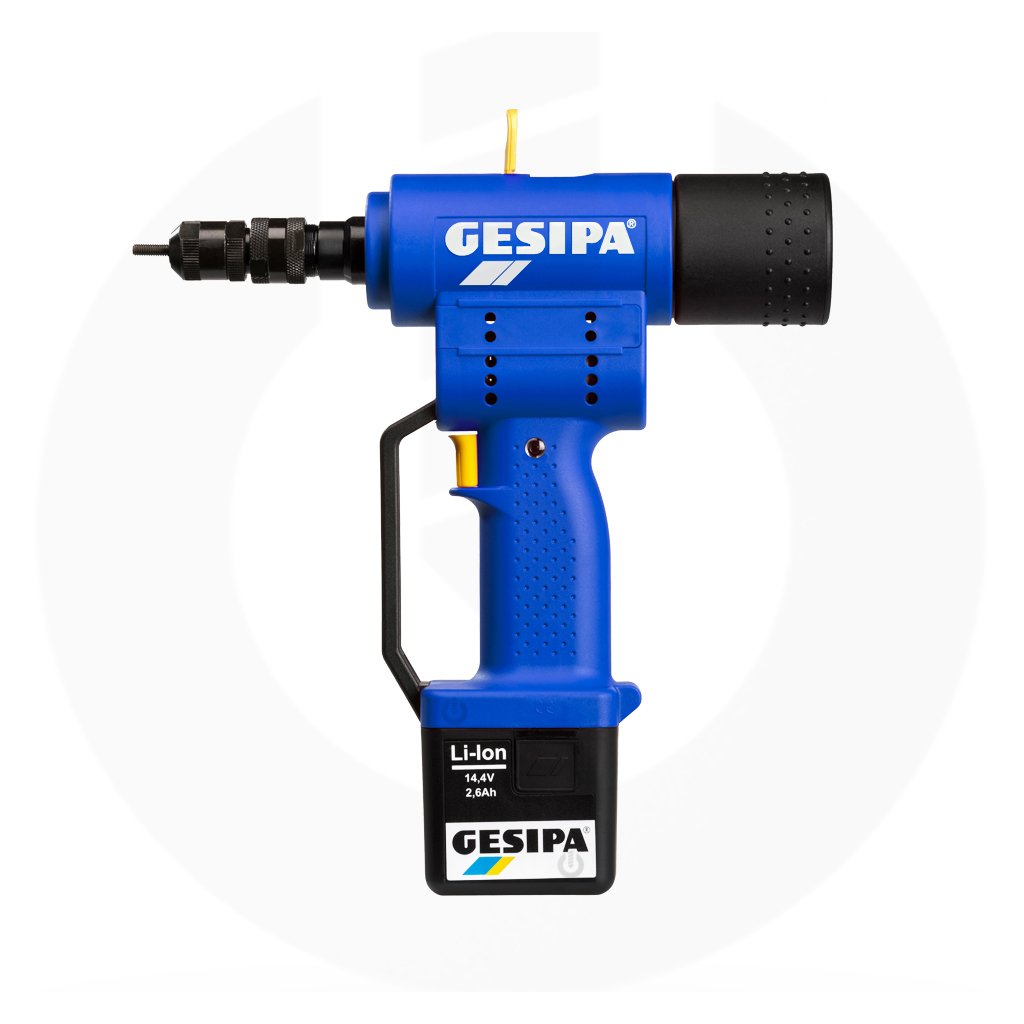

Gesipa Firebird Battery Riveter
M3 - M10

Model Number Firebird   Part Number 1457414

Gesipa Firebird | Battery Rivet Nut Tool

Our extensive range of Gesipa Firebird Battery Riveters Genuine Gesipa Tooling Subject to Stock & Availability

Benefits
  • Lightweight, Fast Operation
  • Portable
  • M3 - M10 Setting Capacity
  • 5.5mm Stroke
  • 13.000N Traction Power
  • Capable Of Setting Rivet Stud Bolts
  • Battery & Charger Included
  • Supplied In Tool Carry Case
  • Nosepiece's Included
  • Please Choose From Our Range Of Firebird Options
Please refer to the Details & Tech Spec tab below for more information.

Call us today on 0121 439 7152 for best price and delivery!

Be the first to review this item

£685.00 ex. vat

£822.00 inc. vat

Buy Now

Gesipa Firebird Battery Rivet Nut Tool

Features

The Gesipa Firebird Battery Riveter is used to fasten blind rivet nuts in a wide range of materials including Aluminium, Steel & Stainless Steel.

This Gesipa Firebird comes supplied in a tool carry case.

 Benefits

  • Lightweight, Fast Operation
  • Portable
  • M3 - M10 Setting Capacity
  • 5.5mm Stroke
  • 13.000N Traction Power
  • Capable Of Setting Rivet Stud Bolts
  • Battery & Charger Included
  • Supplied In Tool Carry Case
  • Nosepiece's Included
  • Please Choose From Our Range Of Firebird Options

Setting Capacity (Standard Rivets)

Rivet Nut TypeAluminiumSteelStainless SteelNose Piece Included
M3
M4
M5
M6
M8
M10
M12



Setting Capacity (Rivet Stud Bolts)

Rivet Bolt TypeSteelNose Assembly Included
M4
M5
M6
M8
M10

Gesipa Firebird Battery Rivet Nut Tool

High performance

  • 14.4 Volt rechargeable energy for flexible, cable-free use on building sites and industrial production

Safety first

  • Drill-on/off the blind rivet nut with reduced torque and automatic switch-off
  • Triggering the setting process clearly separated from the drill-on action
  • Automatic drill-out function after the end of the setting process
  • Drill-off with high torque
  • Sturdy, compact and shockproof tool housing

Ergonomics

  • Fatigue-free working through well balanced weight repartition and ergonomic grip
  • Easy stroke adjustment With Li-Ion energy
  • Battery with 1.3 Ah (standard) or power battery with 2.6 Ah as special accessory
  • No memory-effect
  • High energy yield due to high voltage
  • Low weight allows for extremely easy and fast operation
  • Extremely low self discharge
  • New battery shape allow the tool to be stored standing on its battery

The fast one

  • Simple and safe drilling of the blind rivet nuts
  • Constant setting speed
  • Automatic switchover from setting to drilling
  • Fast and simple change system for threaded mandrels

The versatile one

  • M10 alu blind rivet nuts and up to M8 steel and up to M6 stainless steel


SpecificationGesipa Firebird
Brand Gesipa
Model Firebird
Part Number 1457414
Type Battery Rivet Nut Tool
Setting Capacity M3 - M10
Contents Gesipa Firebird Battery Riveter
Weight 2.1kg
Stroke 5.5mm
Drive DC Motor
Traction Power 13.000 N
Part Number Product Title Price
1434845. 1434845 | Item 50
Tool Body Housing
Gesipa Firebird Part Tool Complete
£86.16 ex. vat Add to cart
1434921 1434921
Gesipa Li-Ion Battery
14.4V | 1.3 Ah
Part Accubird | Powerbird | Firebird | 7251045 | 725 1045 | 143 4921
£156.70 ex. vat Add to cart
1434953, 1434953 | Item 53
Protection Bracket
Gesipa Firebird Part
Tool
£9.93 ex. vat Add to cart
1435017. 1435017 | Item 51
Tool Hanger
Gesipa Firebird Part
Tool
£5.48 ex. vat Add to cart
1435027" 1435027 | Item 20
Bearing Complete
Gesipa Firebird Part
Tool
£124.23 ex. vat Add to cart
1435030. 1435030 | Item 47
Motor Complete
Gesipa Firebird Part
Tool
£53.24 ex. vat Add to cart
1435031" 1435031 | Item 42
Magnetic Holder
Gesipa Firebird Part
Tool Complete
£8.46 ex. vat Add to cart
1435052 1435052 | Item 2
M3 Mandrel
Gesipa Firebird Part
£11.25 ex. vat Add to cart
1435055 1435055 | Item 2
M4 Mandrel
Gesipa Firebird Part
£11.25 ex. vat Add to cart
1435056 1435056 | Item 2
M5 Mandrel
Gesipa Firebird Part
£11.25 ex. vat Add to cart
1435059 1435059 | Item 2
M6 Mandrel
Gesipa Firebird Part
£11.25 ex. vat Add to cart
1435063 1435063 | Item 2
M8 Mandrel
Gesipa Firebird Part
£11.25 ex. vat Add to cart
1435064 1435064 | Item 2
M10 Mandrel
Gesipa Firebird Part
£11.25 ex. vat Add to cart
1435065 1435065 | Item 1
M3 Nosepiece
Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435066 1435066 | Item 1
M4 Nosepiece
Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435067 1435067 | Item 1
M5 Nosepiece
Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435068 1435068 | Item 1
M6 Nosepiece
Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435069 1435069 | Item 1
M8 Nosepiece UNC 5/16" - 18 Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435070 1435070 | Item 1
M10 Nosepiece
Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435071. 1435071 | Used
Accessories Mag
Gesipa Firebird Part Magazine | Mandrel | Head
£13.40 ex. vat Add to cart
1435073 1435073 | Item 5
Locking Nut
Gesipa Firebird Part
£7.58 ex. vat Add to cart
1435074 1435074 | Item 7
Locking Nut
Gesipa Firebird Part
£8.64 ex. vat Add to cart
1435075 1435075 | Item 8
Head
Gesipa Firebird Part Tool
£44.71 ex. vat Add to cart
1435076 1435076 | Item 9
Driver
Gesipa Firebird Part
Tool
£56.67 ex. vat Add to cart
1435077 1435077 | Item 14
Lock Activator
Gesipa Firebird Part Tool
£37.38 ex. vat Add to cart
1435078 1435078 | Item 15
Spacer
Gesipa Firebird Part
Tool
£19.35 ex. vat Add to cart
1435079 1435079 | Item 21
Ballscrew Drive
Gesipa Firebird Part
Tool
Complete
£470.56 ex. vat Add to cart
1435080 1435080 | Item 23
Rotating Rod
Gesipa Firebird Part
Tool
Complete
£68.37 ex. vat Add to cart
1435081 1435081 | Item 26
Plate
Gesipa Firebird Part
Tool
£31.90 ex. vat Add to cart
1435082 1435082 | Item 27
Rotary Tappet
Gesipa Firebird Part
Tool
£25.88 ex. vat Add to cart
1435083 1435083 | Item 28
Washer
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1435084 1435084 | Item 30
Wrap Spring
Gesipa Firebird Part
Tool
£6.26 ex. vat Add to cart
1435085 1435085 | Item 31
Shaft
Gesipa Firebird Part
Tool
£51.65 ex. vat Add to cart
1435086 1435086 | Item 33
Coupling
Gesipa Firebird Part
Tool
£47.85 ex. vat Add to cart
1435088 1435088 | Item 22
Pinion Shaft
Gesipa Firebird Part
Tool
Complete
£94.96 ex. vat Add to cart
1435090 1435090 | Item 2
8 - 32 UNC Mandrel
Gesipa Firebird Part
£14.64 ex. vat Add to cart
1435091 1435091 | Item 2
10 - 32 UNC Mandrel
Gesipa Firebird Part
£14.64 ex. vat Add to cart
1435092 1435092 | Item 2
1/4" - 20 UNC Mandrel Gesipa Firebird Part
£14.64 ex. vat Add to cart
1435093 1435093 | Item 1
8 - 32 UNC Nosepiece Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435094 1435094 | Item 1
10 - 32 UNF Nosepiece Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435095 1435095 | Item 1
1/4" - 16 UNC Nosepiece Gesipa Firebird Part
£13.86 ex. vat Add to cart
1435115 1435115 | Item 24
Coupling Complete
Gesipa Firebird Part
Tool
£235.28 ex. vat Add to cart
1435120 1435120 | Item 12
Lock Washer
Gesipa Firebird Part
Tool
£3.14 ex. vat Add to cart
1435122 1435122 | Item 10
Bevel Washer
Gesipa Firebird Part
Tool
£3.14 ex. vat Add to cart
1435124 1435124 | Item 6
Adjusting Sleeve
Gesipa Firebird Part
£17.77 ex. vat Add to cart
1445763, 1445763 | Item 40
Metal Bushing
Gesipa Firebird Part
Tool
£3.40 ex. vat Add to cart
1445768, 1445768 | Item 19
Cylinder Screw
Gesipa Firebird Part
Tool
£2.63 ex. vat Add to cart
1445769, 1445769 | Item 44
Mag Holder Screw
Gesipa Firebird Part
Tool
£2.63 ex. vat Add to cart
1445770. 1445770 | Item 43
Spring Washer
Gesipa Firebird Part
Tool
£2.63 ex. vat Add to cart
1445772, 1445772 | Item 49
Housing Screw Long
Gesipa Firebird Part
Tool
£2.63 ex. vat Add to cart
1445773, 1445773 | Item 48
Housing Screw Short
Gesipa Firebird Part
Tool
£2.63 ex. vat Add to cart
1445774, 1445774 | Item 46
Silicone Hose
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445789 1445789 | Item 17
Shim Ring
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445790 1445790 | Item 18
Retaining Washer
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445791 1445791 | Item 16
Washer
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445792 1445792 | Item 25
Countersunk Screw
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445793 1445793 | Item 29
Compression Spring
Gesipa Firebird Part Tool
£2.62 ex. vat Add to cart
1445794 1445794 | Item 32
Axial Needle Bearing
Gesipa Firebird Part
Tool
£17.24 ex. vat Add to cart
1445795 1445795 | Item 34
Axial Disc
Gesipa Firebird Part
Tool
£3.14 ex. vat Add to cart
1445797 1445797 | Item 36
Shim Ring
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445798 1445798 | Item 37
Spring Washer
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445799 1445799 | Item 38
Snap Ring
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1445800 1445800 | Item 41
Cap
Gesipa Firebird Part
Tool
£3.65 ex. vat Add to cart
1445801 1445801 | Item 52
Cover
Gesipa Firebird Part
Tool
£5.48 ex. vat Add to cart
1445804 1445804 | Item 11
Washer
Gesipa Firebird Part
Tool
£1.83 ex. vat Add to cart
1445823 1445823 | Item 13
Snap Ring
Gesipa Firebird Part
Tool
£2.62 ex. vat Add to cart
1450816 1450816
Gesipa Plastic Tool Carry Case
Accubird | Powerbird | Firebird
£62.52 ex. vat Add to cart
1457269 1457269
Gesipa Li-Ion Battery
14.4V | 2.6 Ah
Accubird | Powerbird | Firebird | 7251049 | 725 1049
£208.56 ex. vat Add to cart
1457282 1457282
Gesipa Li-Ion Battery Charger 14.4V
Accubird | Powerbird | Firebird | 7251134 | 725 1134
£107.94 ex. vat Add to cart
1457455 1457455 | Item 39
Drive Complete
Gesipa Firebird Part
Tool
£1,091.69 ex. vat Add to cart
1457456 1457456 | Item 45
E-Control Switch
Gesipa Firebird Part
Tool
£310.56 ex. vat Add to cart
1457457 1457457 | Item 2
5/16" - 18 UNC Mandrel Gesipa Firebird Part
£14.64 ex. vat Add to cart
1457458 1457458 | Item 2
3/8" - 16 UNC Mandrel Gesipa Firebird Part
£14.64 ex. vat Add to cart
1457459 1457459 | Item 1
3/8" - 16 UNC Nosepiece Gesipa Firebird Part
£13.86 ex. vat Add to cart
1524564 1524564 | Item 35
Bushing
Gesipa Firebird Part
£30.79 ex. vat Add to cart
1450841 Gesipa Firebird Pro
Gold Battery Riveter
M3 - M12
Rivet Nut Tool | Fire Bird | 1450841 | 1524713
£1,367.57 ex. vat Add to cart

No questions or answers have been posted about this item.

Ask a question

Please enter your question below and you receive an email once it has been answered

×
Ask a question
Sorry, you do not have the right plugin.
Download the PDF here

Part On delivers orders using Road Transport Courier Service. This is to ensure the goods are delivered safely and effectively to customers. We offer an option to upgrade to an AM delivery for an extra charge to you, the customer, and this can be arranged by telephone to Part On office 0121 439 7152.

Orders are dispatched using 24/48 hour Road Transport Courier Service for UK Mainland.

Offshore orders can be delivered for an extra charge, including Southern Ireland.

Deliveries must be signed for on delivery, no shipments are left without a signature. Should the delivery not be possible at the designated address ... Read More

Return of goods must be within 5 days of receiving the delivery note or invoice whichever is
received by you, the customer, first. To enable Part On to issue a refund the goods must be in
Its original packaging and condition, this is to ensure the goods are fit for resale.
If the packaging is damaged in any way you, the customer, may incur handling charges.

Goods must be returned to Part On office address:

Part-on Tools Limited
Unit 21 Kings Norton Trading Estate
Stockmans Close
Kings Norton
Birmingham
B38 9TS


Part On are not responsible for Read more...

>

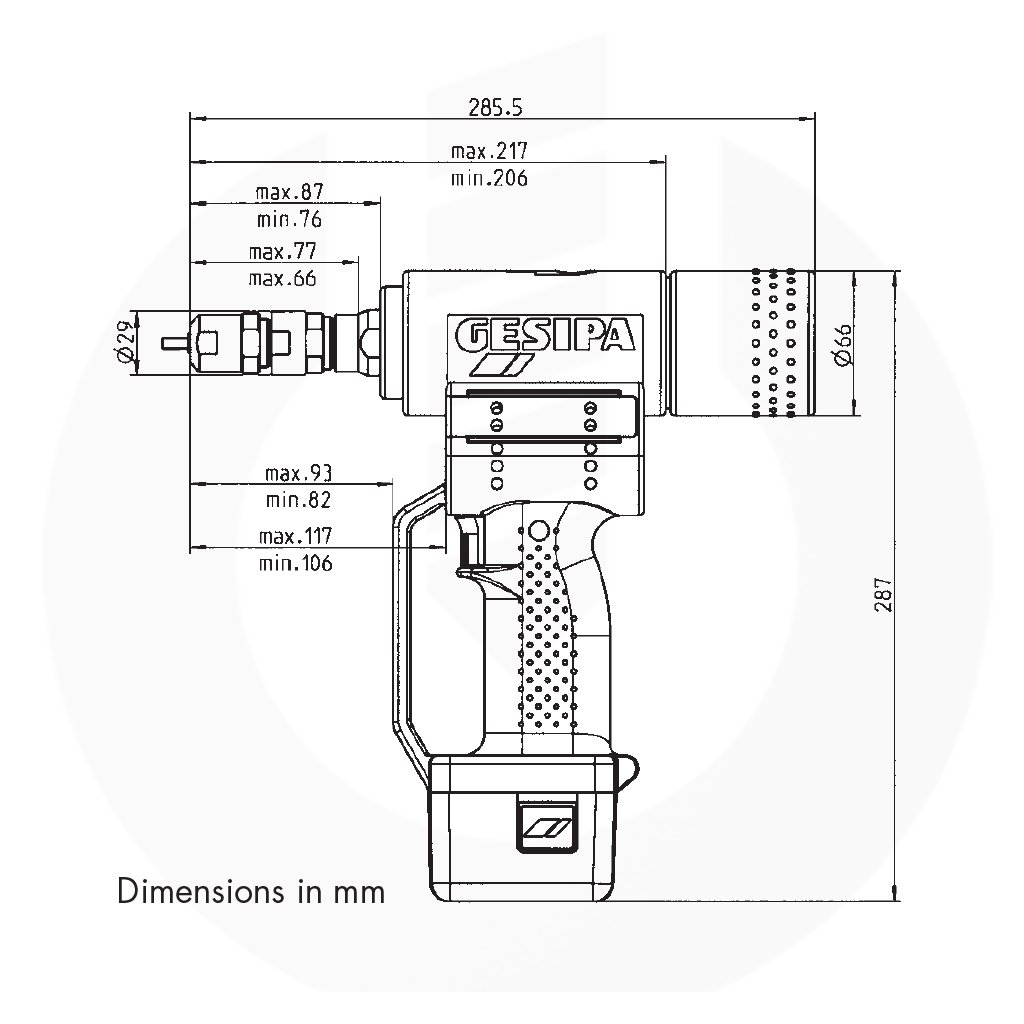

Customer Reviews for Gesipa Firebird Battery Riveter
M3 - M10

Write a Review

Be the first to write a review for Gesipa Firebird Battery Riveter
M3 - M10.

What makes a good review?

  • Select a overall star rating for the item to recived
  • Be detailed and specific, talk about the product purchased, the customer service and delivery.
  • Not too short and not too long. Aim for between 75 and 300 words.

Click stars to select a rating:
12345

© 2020 Part On Tools

safe payments by Secure Payments    iD30 eCommerce
